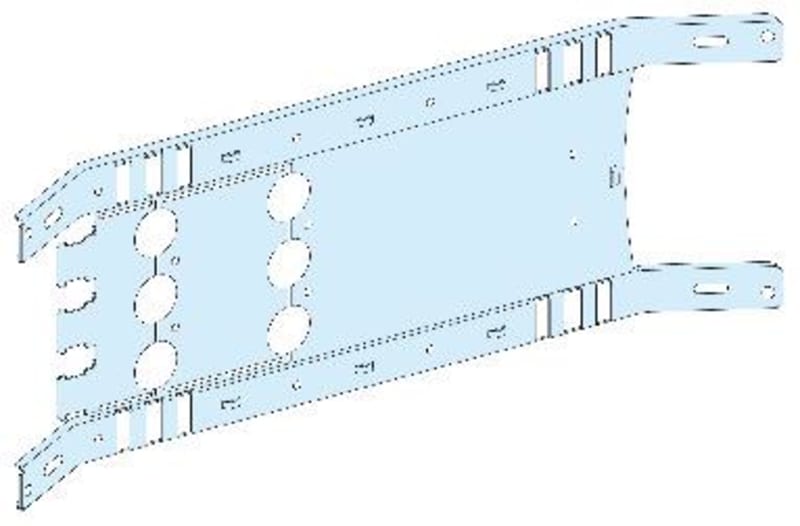

Schneider Electric LVS03420 Mounting plate, PrismaSeT, 3-4 vertically fixed, NS-INS250 Toggle.

Schneider Electric LVS03420 Mounting plate, PrismaSeT, 3-4 vertically fixed, NS-INS250 Toggle. is listed under Enclosures / Mounting Plates. Sales unit: pcs; Package quantity: 5 pcs; Range: PrismaSeT; Range of product: PrismaSeT P; Product or component type: Mounting plate; Range compatibility: PrismaSeT PrismaSeT P cubicle.

Manufacturer part number (MPN)

LVS03420

EAN / GTIN

3606481874313

Sales unit

pcs

Package quantity

5 pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P cubicle

installation description

Cubicle - width 650 mm depth 400 mm

Installed device

EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS250 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed INS250 - control: direct front rotary handle - vertical installation; ComPact: fixed INV250 - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS100...160 with earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS250 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation

Poles description

1 x 3P: fixed INS250 vertical installation; 1 x 4P: fixed INS250 vertical installation; 1 x 3P: fixed INV250 vertical installation; 1 x 4P: fixed INV250 vertical installation; 4 x 3P: fixed CVS100...160 vertical installation; 3 x 4P: fixed CVS100...160 vertical installation; 4 x 3P: fixed CVS250 vertical installation; 3 x 4P: fixed CVS250 vertical installation; 4 x 3P: fixed NSX100...160 vertical installation; 3 x 4P: fixed NSX100...160 vertical installation; 4 x 3P: fixed NSX250 vertical installation; 3 x 4P: fixed NSX250 vertical installation; 3 x 3P: fixed INS250 vertical installation; 2 x 4P: fixed INS250 vertical installation; 3 x 3P: fixed INV250 vertical installation; 2 x 4P: fixed INV250 vertical installation

Number of vertical modules [50 mm]

9 module(s): CVS100...160 without earth leakage protection , direct in 650 mm Widecubicle; 9 module(s): CVS250 without earth leakage protection , direct in 650 mm Widecubicle; 7 module(s): INS250, Linergy FC in 650 mm Widecubicle; 9 module(s): INS250, direct in 650 mm Widecubicle; 7 module(s): INV250, Linergy FC in 650 mm Widecubicle; 9 module(s): INV250, direct in 650 mm Widecubicle; 6 module(s): NSX100...160 without earth leakage protection , Linergy FC in 650 mm Widecubicle; 8 module(s): NSX100...160 without earth leakage protection , direct in 650 mm Widecubicle; 7 module(s): NSX250 without earth leakage protection , Linergy FC in 650 mm Widecubicle; 9 module(s): NSX250 without earth leakage protection , direct in 650 mm Widecubicle; 11 module(s): CVS100...160 with earth leakage protection , direct in 650 mm Widecubicle; 11 module(s): CVS250 with earth leakage protection , direct in 650 mm Widecubicle; 8 module(s): NSX100...160 with earth leakage protection , Linergy FC in 650 mm Widecubicle; 10 module(s): NSX100...160 with earth leakage protection , direct in 650 mm Widecubicle; 9 module(s): NSX250 with earth leakage protection , Linergy FC in 650 mm Widecubicle; 11 module(s): NSX250 with earth leakage protection , direct in 650 mm Widecubicle

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

593 mm

Height

152 mm

Depth

136 mm

Product weight

1.28 kg

Functional unit

650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed toggle vertical 3P 4 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed toggle vertical 4P 3 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed toggle vertical 3P 4 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed toggle vertical 4P 3 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 3P 1 Linergy FC 7 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 3P 3 Linergy FC 7 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 4P 1 Linergy FC 7 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 4P 2 Linergy FC 7 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 3P 1 direct 9 212.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 4P 1 direct 9 212.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 3P 3 direct 9 212.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 4P 2 direct 9 212.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 3P 1 Linergy FC 7 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 3P 3 Linergy FC 7 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 4P 1 Linergy FC 7 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 4P 2 Linergy FC 7 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 3P 1 direct 9 212.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 4P 1 direct 9 212.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 3P 3 direct 9 212.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 4P 2 direct 9 212.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 3P 4 Linergy FC 6 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 4P 3 Linergy FC 6 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 3P 4 direct 8 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 4P 3 direct 8 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 3P 4 Linergy FC 7 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 3P 4 direct 11 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 4P 3 direct 11 162.5 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.300 cm

Package 1 Width

15.400 cm

Package 1 Length

59.200 cm

Package 1 Weight

1.557 kg

Unit Type of Package 2

CAR

Number of Units in Package 2

6

Package 2 Height

17.100 cm

Package 2 Width

33.700 cm

Package 2 Length

59.800 cm

Package 2 Weight

9.800 kg

Unit Type of Package 3

P12

Number of Units in Package 3

108

Package 3 Height

82.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

182.156 kg

Country of origin

IN

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

HS Code

7326.90

• EAN 3606481874313
• SAP 1200546673
• Code 82880295
