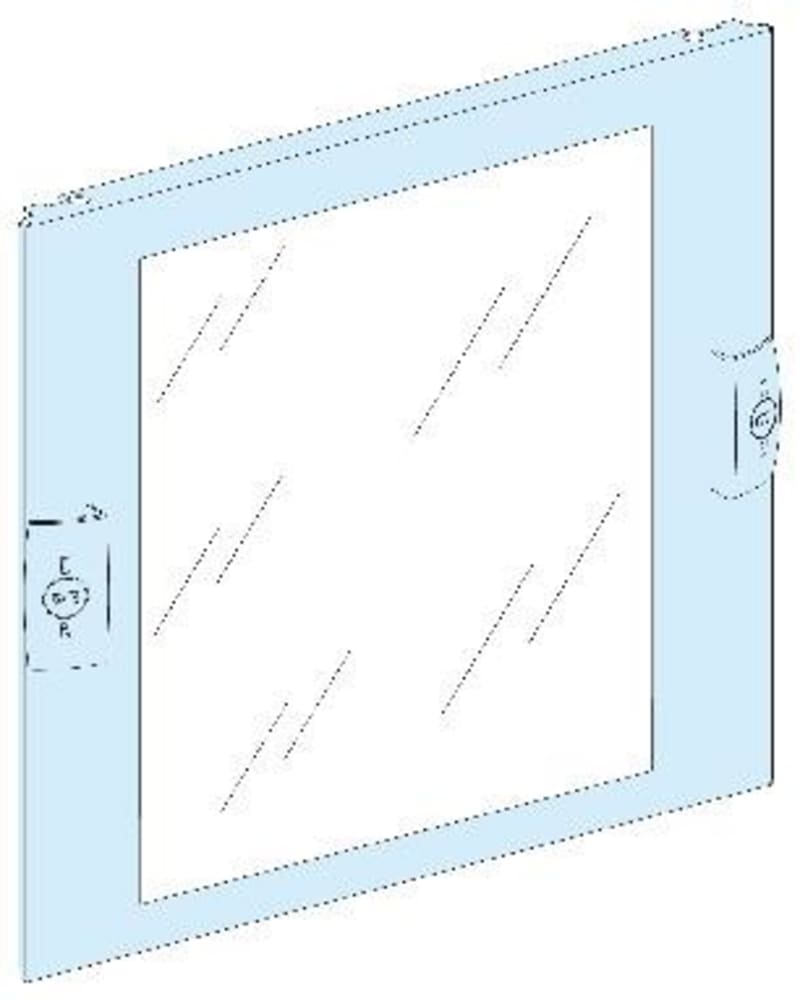

Transp. Front plate 4M Cable Compartment Prisma G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03352 Transparent Front plate 4 Modules for Cable Compartment PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03352
- EAN / GTIN
- 3606481871725
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G duct; PrismaSeT PrismaSeT P duct
- Type of front plate
- Transparent
- Installed device
- TeSys: fixed TeSys U - horizontal installation; TeSys: fixed GV2 + D or K contactors <= 40 A - horizontal installation
- Poles description
- 4 x 3P: modular rail support: GV2 + D or K contactors <= 40 A horizontal installation; 4 x 3P: modular rail support: TeSys U horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle duct - width 400 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 4
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Glass
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 200 mm
- Product weight
- 0.54 kg
- Quantity per set
- Set of 1
- functional unit
- 300 mm PrismaSeT G floor-standing duct TeSys GV2 + D or K contactors <= 40 A fixed horizontal 3P 4 direct 5; 300 mm PrismaSeT G wall-mounted duct TeSys GV2 + D or K contactors <= 40 A fixed horizontal 3P 4 direct 5; 400 mm 400 mm PrismaSeT P cubicle; 300 mm PrismaSeT G floor-standing duct TeSys TeSys U fixed horizontal 3P 4 direct 5; 300 mm PrismaSeT G wall-mounted duct TeSys TeSys U fixed horizontal 3P 4 direct 5; 300 mm PrismaSeT G floor-standing duct TeSys TeSys U fixed horizontal 3P 4 direct 4; 300 mm PrismaSeT G wall-mounted duct TeSys TeSys U fixed horizontal 3P 4 direct 4
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 300 mm
- Number of height units
- 4
- Surface finishing
- Untreated
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481871725
- SAP 1200546660
- Code 82879592
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZ w/plinth open bottom 750X750X420 IP54 NSYPLAZ774G
Schneider Electric
Schneider Electric additionnal EMC input filter - 3-Phase supply - 180 A VW3A4408
Schneider Electric
Extra Plinth H100 B300-IP30-PRISMASET G
LVS08807
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 110V DC low consumption coil, snap-in terminals CAD50AFL
Schneider Electric

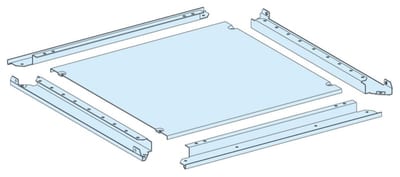

Bottom plate IP55 PrismaSeT P B800 D400
LVS08488
Schneider Electric

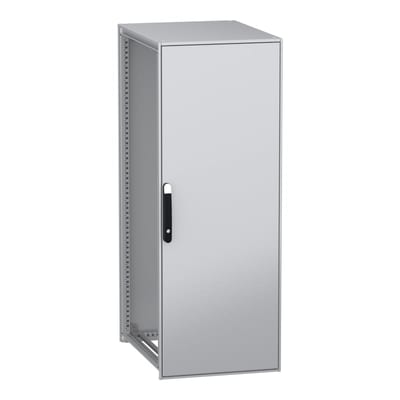

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1600X600X800MM, IP55 NSYSFN16680
Schneider Electric

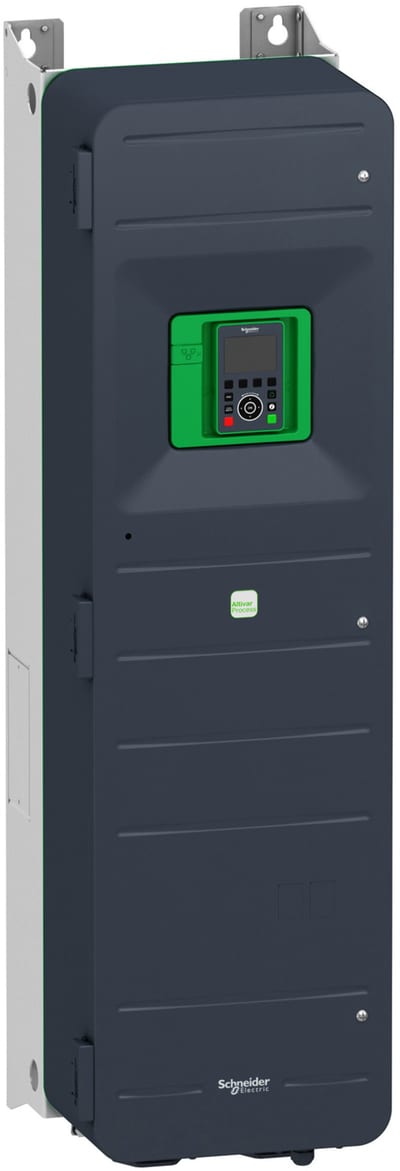

Schneider Electric variable speed drive, Altivar Process ATV900, ATV950, 75kW, 400 to 480V, with braking unit, IP55 ATV950D75N4
Schneider Electric

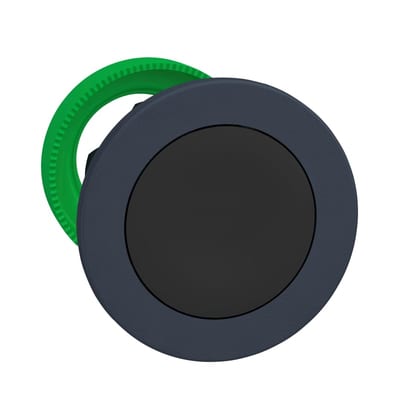

Push-button flush black (ZB5FH02)
