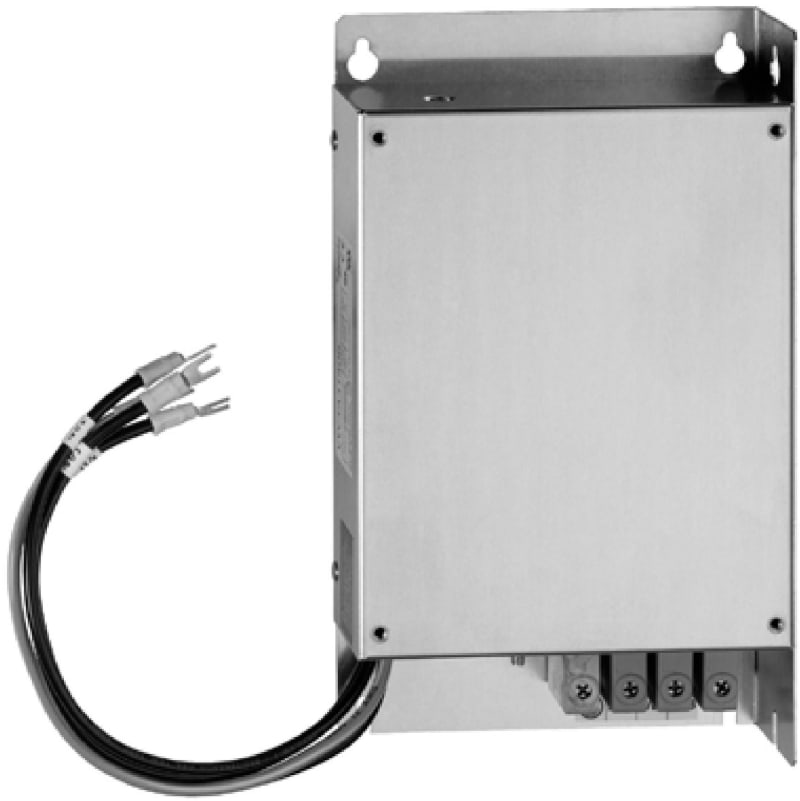

Schneider Electric additionnal EMC input filter - 3-Phase supply - 180 A VW3A4408
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric additionnal EMC input filter - 3-Phase supply - 180 A VW3A4408 is listed under Drives & Controllers / Drive Accessories. Sales unit: pcs; Range of product: Altivar; Product or component type: EMC input filter; Range compatibility: Altivar 61; Altivar 71; Altivar 212; Product specific application: Radio interference input filter; [In] rated current: 180 A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A4408
- EAN / GTIN
- 3389118065659
- Sales unit
- pcs
- Range of product
- Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Altivar 61; Altivar 71; Altivar 212
- Product compatibility
- ATV212HD30M3X; ATV212HD55N4; ATV212HD75N4; ATV61HD30M3X; ATV61HD37M3X; ATV61HD45M3X; ATV61HD45N4; ATV61HD55N4; ATV61HD75N4; ATV71HD30M3X; ATV71HD37M3X; ATV71HD45M3X; ATV71HD45N4; ATV71HD55N4; ATV71HD75N4; ATV71WD45N4; ATV71WD55N4; ATV71WD75N4
- Product specific application
- Radio interference input filter
- [In] rated current
- 180 A
- Thermal losses
- 18 W for ATV21HD55N4; 34 W for ATV21HD75N4; 23.1 W for ATV21HD30M3X; 58 W for ATV61/ATV71 variable speed drives
- Network number of phases
- Three phase
- Electrical connection
- Terminal 150 mm² 300 kcmil
- Tightening torque
- 25 N.m
- maximum earth leakage current
- 140 mA at 400 V 50 Hz; 193 mA at 480 V 60 Hz; 80 mA at 400 V 50 Hz; 86.3 mA at 480 V 60 Hz
- power supply voltage
- 380…500 V; 200…240 V
- Tolerance
- 10 %
- Product weight
- 40 kg
- IP degree of protection
- IP20; IP41 (upper part)
- Relative humidity
- 0…93 % conforming to IEC 68-2-3
- Ambient air temperature for operation
- -10…50 °C
- Ambient air temperature for storage
- -40…65 °C
- Operating altitude
- <= 1000 m without current derating; <= 1000 m without derating; 1000...3000 m with current derating 1 % per 100 m
- Vibration resistance
- 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 15 gn for 11 ms conforming to IEC 60068-2-27
- Standards
- IEC 61800-3
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 30.500 cm
- Package 1 Width
- 56.000 cm
- Package 1 Length
- 105.000 cm
- Package 1 Weight
- 30.000 kg
- Country of origin
- TH
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3389118065659
- SAP 1000074437
- Code 8797033
