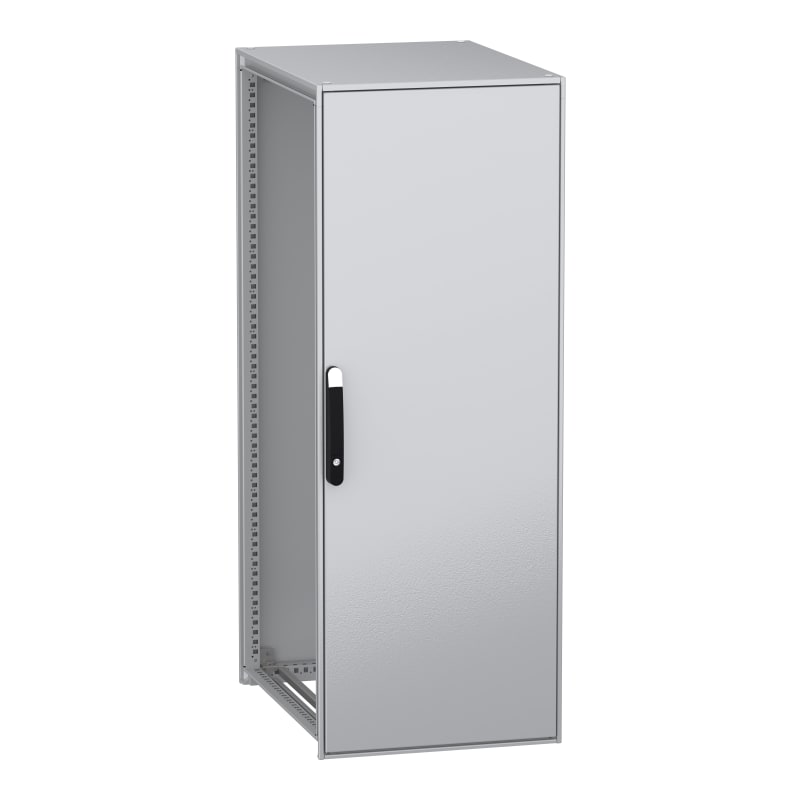

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1600X600X800MM, IP55 NSYSFN16680
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFN16680 Floor-standing cabinet byggbart, PanelSeT SFN, without mounting plate, IP55, 1600x600x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN16680
- EAN / GTIN
- 3606486102619
- Sales unit
- pcs
- Dimensions
- 1600×600×800
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 1600 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 800 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof
- Structure type
- Formed from a single section; Vertical uprights joined with top and bottom frames; Panels and doors built into the structure; Perforated structure with a pitch of 25 mm
- Door opening side
- Reversible (120 °)
- Door type
- Plain front
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Front; Sides of enclosure; Rear
- Removable parts
- Door by screws hinge; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 63.2 kg
- Standards
- IEC 62208; UL; CUL
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 1600 mm
- Depth
- 800 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486102619
- SAP 1200727670
- Code 83866744
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive, Altivar Process ATV900, ATV950, 75kW, 400 to 480V, with braking unit, IP55 ATV950D75N4
Schneider Electric
Push-button flush black (ZB5FH02)
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 550A, standard version, 48…130V wide band AC/DC coil LC1G4004EHEN
Schneider Electric

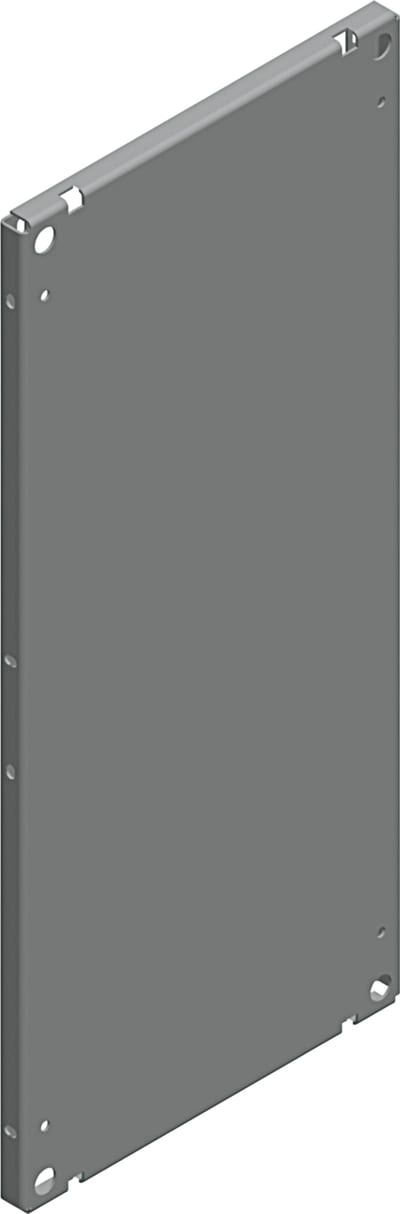

Mounting Plate 12X12 (NSYMP1212)
Schneider Electric

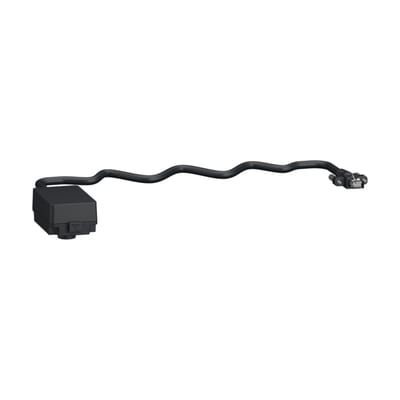

Schneider Electric Remote Display cable 10M HMIZM6RDP10
Schneider Electric

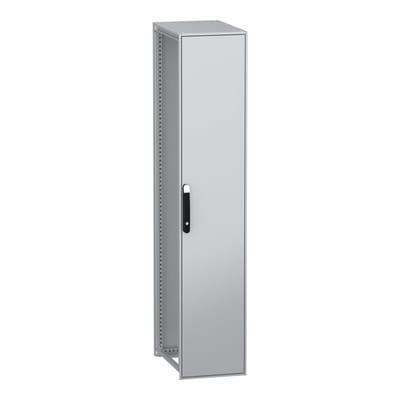

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X400X600MM, IP55 NSYSFN20460
Schneider Electric

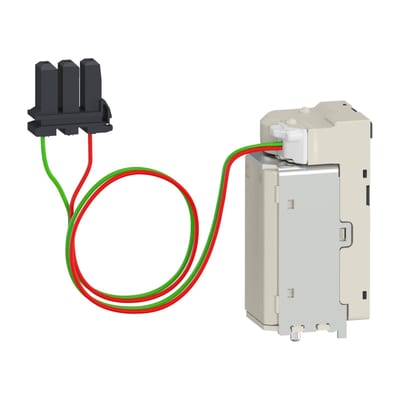

Schneider Electric XF or MX voltage release, standard, Masterpact MTZ1/2/3, 277 VAC 50/60 Hz, spare part LV833663SP
Schneider Electric

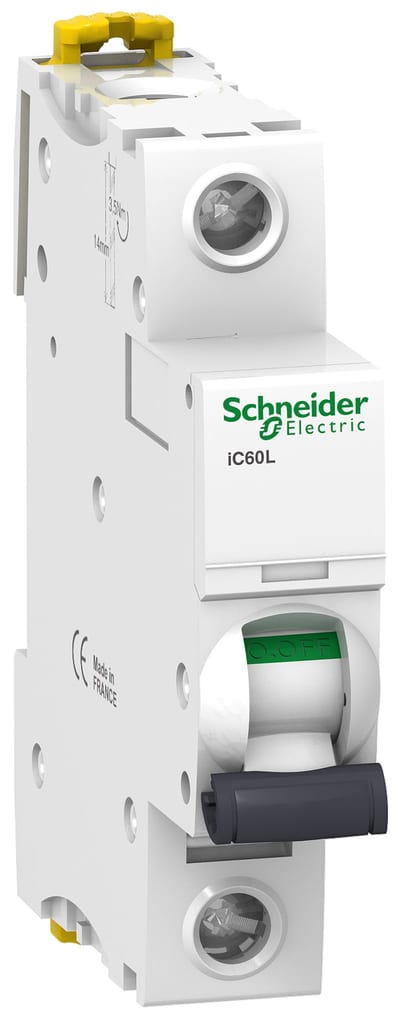

Schneider Electric A9F92172 ACTI9 IC60L Miniature Circuit Breaker 1P 1.6 A, Curve Z
