Schneider Electric

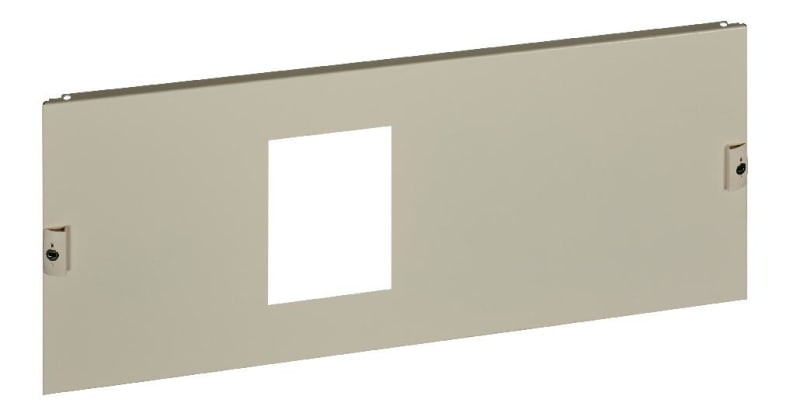

Front plate horizontal INS630 B850 Prisma G
Part numberLVS03287EAN / GTIN3606481872036HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03287 Front plate for INS400/630-horizontal mounting-for PrismaSeT G-6 modules-for 850mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03287
- EAN / GTIN
- 3606481872036
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS320...400 - control: direct front rotary handle - horizontal installation; ComPact: fixed INS500...630 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV320...400 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV500...630 - control: direct front rotary handle - horizontal installation
- Poles description
- 1 x 3P: mounting plate support: INS320...400 horizontal installation; 1 x 4P: mounting plate support: INS320...400 horizontal installation; 1 x 3P: mounting plate support: INS500...630 horizontal installation; 1 x 4P: mounting plate support: INS500...630 horizontal installation; 1 x 3P: mounting plate support: INV320...400 horizontal installation; 1 x 4P: mounting plate support: INV320...400 horizontal installation; 1 x 3P: mounting plate support: INV500...630 horizontal installation; 1 x 4P: mounting plate support: INV500...630 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Floor-standing enclosure - width 850 mm
- Connection position
- Connection block
- Number of vertical modules [50 mm]
- 6
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 850 mm
- Height
- 300 mm
- Product weight
- 1.94 kg
- Quantity per set
- Set of 1
- functional unit
- 850 mm PrismaSeT G floor-standing enclosure ComPact INS320...400 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 9; 850 mm PrismaSeT G floor-standing enclosure ComPact INS320...400 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 9; 850 mm PrismaSeT G floor-standing enclosure ComPact INS320...400 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 6; 850 mm PrismaSeT G floor-standing enclosure ComPact INS320...400 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 6; 850 mm PrismaSeT G floor-standing enclosure ComPact INS500...630 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 9; 850 mm PrismaSeT G floor-standing enclosure ComPact INS500...630 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 9; 850 mm PrismaSeT G floor-standing enclosure ComPact INS500...630 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 6; 850 mm PrismaSeT G floor-standing enclosure ComPact INS500...630 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 6; 850 mm PrismaSeT G floor-standing enclosure ComPact INV320...400 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 9; 850 mm PrismaSeT G floor-standing enclosure ComPact INV320...400 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 9; 850 mm PrismaSeT G floor-standing enclosure ComPact INV320...400 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 6; 850 mm PrismaSeT G floor-standing enclosure ComPact INV320...400 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 6; 850 mm PrismaSeT G floor-standing enclosure ComPact INV500...630 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 9; 850 mm PrismaSeT G floor-standing enclosure ComPact INV500...630 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 9; 850 mm PrismaSeT G floor-standing enclosure ComPact INV500...630 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 6; 850 mm PrismaSeT G floor-standing enclosure ComPact INV500...630 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 6
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Number of Units in Package 3
- 40
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 850 mm
- Material
- Steel
- Number of height units
- 6
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481872036
- SAP 1200546645
- Code 82879408
Product Documentation
