Schneider Electric

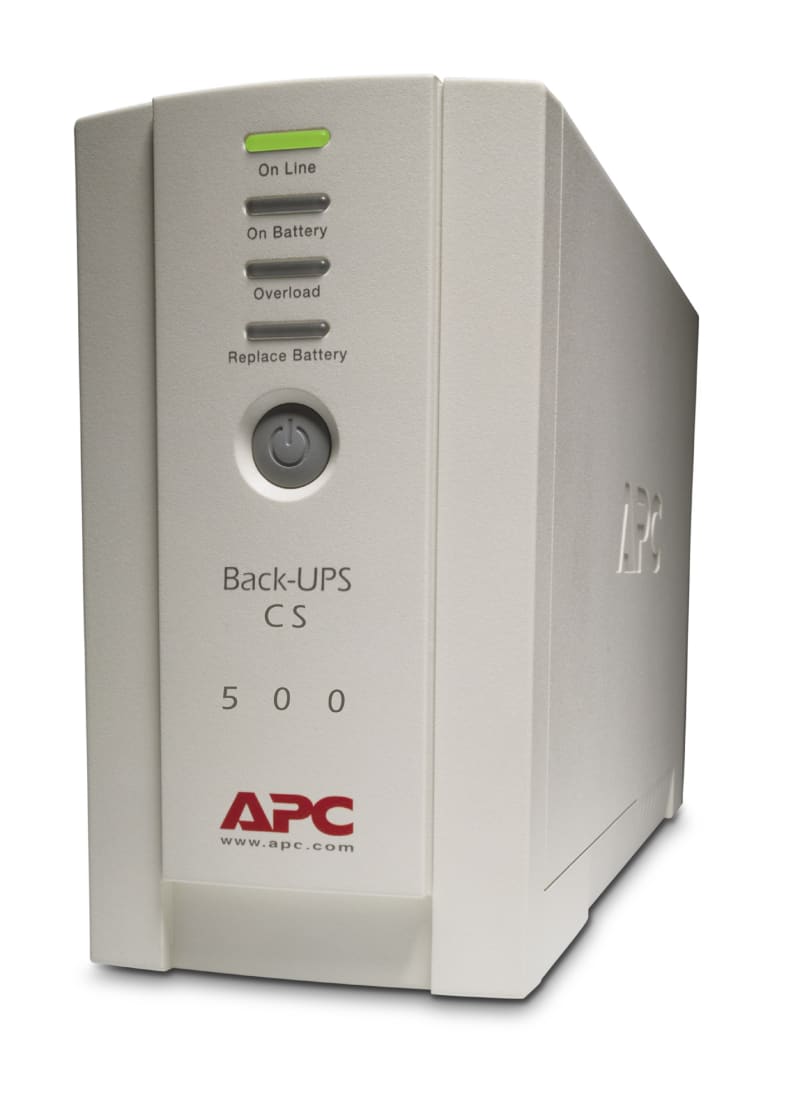

Schneider Electric APC Back-UPS, 500VA/300W, Tower, 230V, 4X IEC C13 Outlets, User Replaceable Battery BK500EI
Part numberBK500EIEAN / GTIN0731304016359HS code8504.40
Electrical Components
UPS Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BK500EI UPS Offline.
Technical Specifications
- Manufacturer part number (MPN)
- BK500EI
- EAN / GTIN
- 0731304016359
- Sales unit
- pcs
- Main input voltage
- 230 V AC 1 phase
- Input connection
- IEC 60320 C14
- Maximum input current
- 7 A
- Switching current capacity
- 7 A
- Efficiency at full load
- 160...300 V adjustable; 180...266 V
- Input frequency
- 47...63 Hz; 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 300 W
- Rated power in VA
- 500 VA
- Output connection
- 3 IEC 60320 C13; 1 IEC 60320 C13 surge; 2 IEC 60320 surge
- Type of USB power supply
- None
- Maximum configurable power in VA
- 500 VA
- Maximum configurable power in W
- 300 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Standby
- Waveform type
- Stepped approximation to a sinewave
- Output frequency
- 47...63 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised
- Replacement battery
- RBC2
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery capacity
- 7.0 Ah
- Battery type
- Lead-acid internal included
- Control panel
- LED Status display with on line : on battery
- Free slot
- 0
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- USB port
- Surge energy rating
- 310 J
- Noise filtering
- Full time multi-pole noise filtering : 5% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of cables
- 2
- Color
- Beige
- Height
- 165 mm
- Width
- 91 mm
- Depth
- 284 mm
- Product weight
- 6.32 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Provided equipment
- CD with software; Documentation CD; 1 x detachable IEC power cord; 1 x detachable 1.2 m IEC power cord; Telephone cable; USB cable; Warranty card
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Back-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- RCM; CE; GOST; VDE
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 40 dBA
- Heat dissipation
- 24 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- 12 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 8 h
- RBC quantity
- 1
- Battery life
- 4…6 year(s)
- Battery charging power
- 10 W rated
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 17.800 cm
- Package 1 Width
- 24.100 cm
- Package 1 Length
- 36.800 cm
- Package 1 Weight
- 7.050 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 30
- Package 2 Height
- 105.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 490.000 kg
- SCC14
- 10731304016356
- Country of origin
- PH
- Warranty (in months)
- 12 Battery|24 UPS
