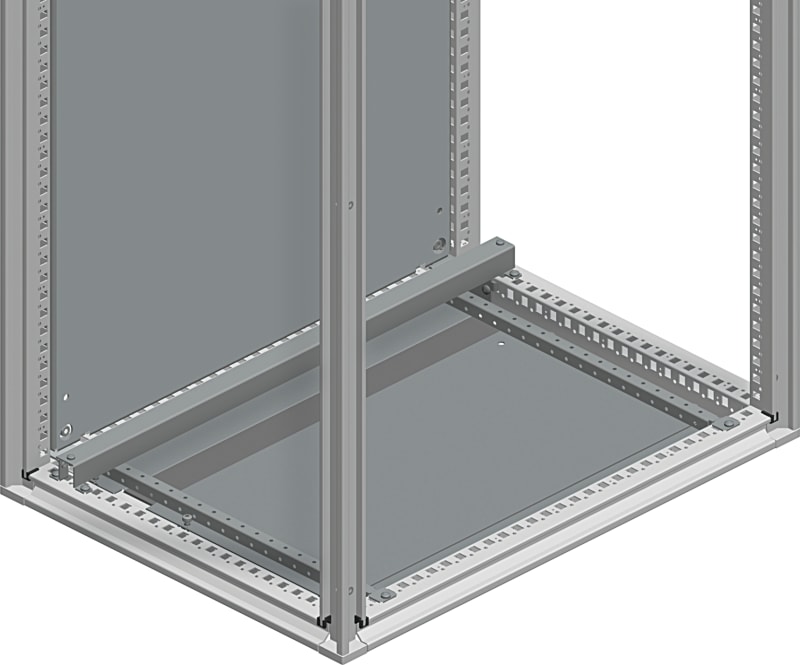

Cable routing, bottom centre 800
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYFCG80 Cable routing bottom senter 800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYFCG80
- EAN / GTIN
- 3606480064487
- Sales unit
- pcs
- Range
- PanelSeT
- Category
- Cabling accessory
- Product or component type
- Rail
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Mounting location
- Bottom frame of enclosure
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Device composition
- fixing elements; 1 rail; 2 mounting support
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- Metal clamp
- Adjustment
- Adjustable in depth every 25 mm
- fixing center
- 750 mm
- Width
- Nominal: 800 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 5.500 cm
- Package 1 Length
- 78.000 cm
- Package 1 Weight
- 1.912 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 100
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 204.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Height
- 40 mm
- Material thickness
- 4 mm
- Length
- 800 mm
- Punch shape
- None
- Drill hole distance centrically
- 750 mm
- Surface finishing
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480064487
- SAP 1000470603
- Code 8787577
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric APC Back-UPS, 500VA/300W, Tower, 230V, 4X IEC C13 Outlets, User Replaceable Battery BK500EI
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 3 poles, MicroLogic 6.2E-M trip unit 25A C10W36M025
Schneider Electric
Soft start/stop 6A 440-480V
ATS01N206RT
Schneider Electric

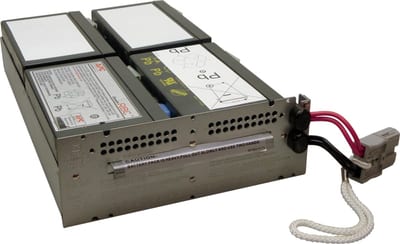

Schneider Electric APC Replacement Battery Cartridge 132 with 2 Year Warranty APCRBC132
Schneider Electric

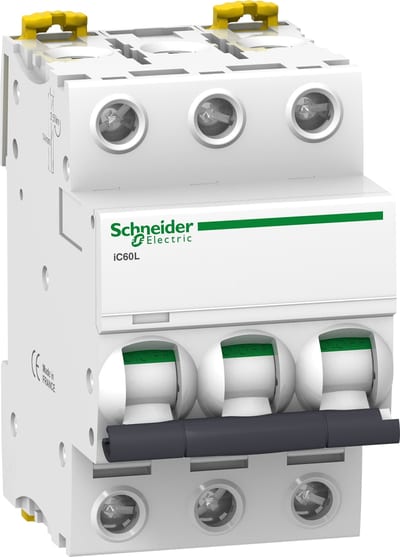

Schneider Electric A9F92340 ACTI9 IC60L Miniature Circuit Breaker 3P 40 A, Curve Z
