Front plate NSX250VIGI Vertical PrismaSeT G/P
Part numberLVS03241EAN / GTIN3606481872920HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

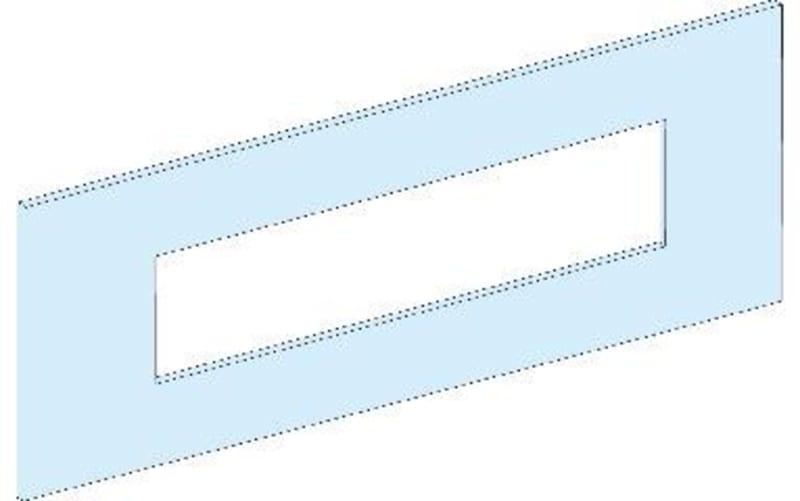

Schneider Electric LVS03241 Front plate for NSX100/250 with Vigimodul-Vertical mounting-PrismaSeT G/P-7 modules-for 600/650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03241
- EAN / GTIN
- 3606481872920
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS100...160 with earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS250 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation
- Poles description
- 4 x 3P: mounting plate support: CVS100...160 vertical installation; 3 x 4P: mounting plate support: CVS100...160 vertical installation; 4 x 3P: mounting plate support: CVS250 vertical installation; 3 x 4P: mounting plate support: CVS250 vertical installation; 4 x 3P: mounting plate support: NSX100...160 vertical installation; 3 x 4P: mounting plate support: NSX100...160 vertical installation; 4 x 3P: mounting plate support: NSX250 vertical installation; 3 x 4P: mounting plate support: NSX250 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection; Linergy FC
- Number of vertical modules [50 mm]
- 7
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 350 mm
- Product weight
- 1.1 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed toggle vertical 3P 4 direct 11; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed toggle vertical 4P 3 direct 11; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed toggle vertical 3P 4 direct 11; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed toggle vertical 4P 3 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 3P 4 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 4P 3 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 3P 4 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 4P 3 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 3P 4 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 4P 3 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 3P 4 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 4P 3 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 3P 4 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 4P 3 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 3P 4 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 4P 3 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 3P 4 direct 12; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 4P 3 direct 12; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 3P 4 Linergy FC 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 4P 3 Linergy FC 10; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 with fixed toggle vertical 3P 4 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS100...160 with fixed toggle vertical 3P 4 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 with fixed toggle vertical 4P 3 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS100...160 with fixed toggle vertical 4P 3 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 with fixed toggle vertical 3P 4 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS250 with fixed toggle vertical 3P 4 direct with long terminal shield 13; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 with fixed toggle vertical 4P 3 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS250 with fixed toggle vertical 4P 3 direct with long terminal shield 13; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 with fixed toggle vertical 3P 4 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX100...160 with fixed toggle vertical 3P 4 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 with fixed toggle vertical 4P 3 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX100...160 with fixed toggle vertical 4P 3 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX250 with fixed toggle vertical 3P 4 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX250 with fixed toggle vertical 3P 4 direct with long terminal shield 13; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX250 with fixed toggle vertical 4P 3 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX250 with fixed toggle vertical 4P 3 direct with long terminal shield 13
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 7
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872920
- SAP 1200546631
- Code 82880158
Product Documentation
Document preview: Schneider Electric LVS03241 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 110V AC 50/60Hz coil, snap-in terminals LC1D18AF7
Schneider Electric
Schneider Electric Illuminated selector switch, Harmony XB4, metal, red handle, 22mm, universal LED, 2 positions, 1NO + 1NC, 230...240V AC XB4BK124M5
Schneider Electric
Schneider Electric Floor standing encl. polyester vers.PLAT open top w/ canopy 750X500X320 IP44 NSYPLAT753G
Schneider Electric
Schneider Electric APC NetShelter Rack PDU, Metered, 0U, 5.0kW 200V and 208V 30A, (36) C13 and (6) C19 outlets AP8841
Schneider Electric
Schneider Electric Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 110 V AC RSL1PVFU
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 25A, Icu 100KA, thermal magnetic, Everlink terminals GV4PE25S
Schneider Electric

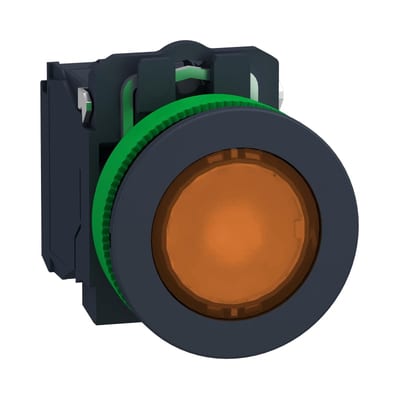

Schneider Electric Illuminated push button, Harmony XB5, orange, 30mm, universal LED, 1NO + 1NC, 110...120V AC XB5FW35G5
