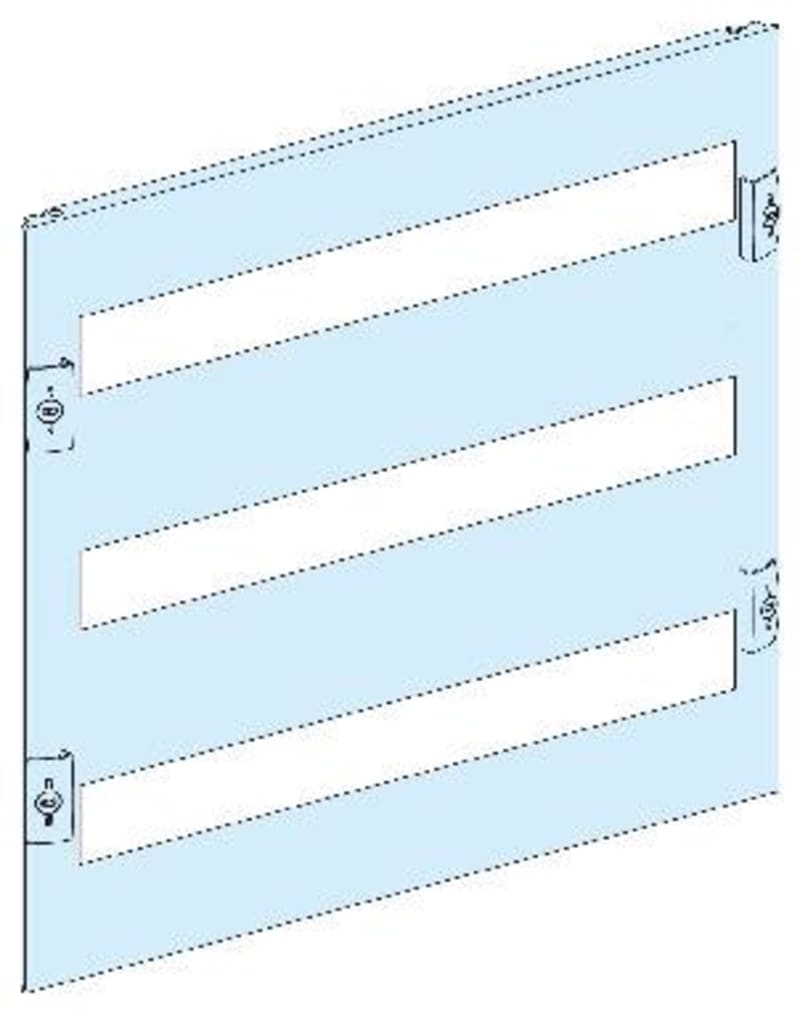

Front plate Mod.Prod. 3REKKER-8M-PRISMAG/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03223 Front plate for Modular products-3 Rekker-8Modules-PrismaSeT G/P-for 600/650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03223
- EAN / GTIN
- 3606481872784
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out; Modular
- Installed device
- Acti 9: fixed modular device <= 40 A; Multi9: fixed modular device <= 40 A
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of horizontal rows
- 3
- 9 mm pitches
- 48
- Number of 18 mm modules per row
- 24
- Number of vertical modules [50 mm]
- 8
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 400 mm
- Product weight
- 1.24 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure Acti 9 modular device <= 40 A fixed 48 direct 8; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 modular device <= 40 A fixed 48 direct 8; 650 mm 400 mm PrismaSeT P cubicle Acti 9 modular device <= 40 A fixed 48 direct 8; 600 mm PrismaSeT G floor-standing enclosure Multi9 modular device <= 40 A fixed 48 direct 8; 600 mm PrismaSeT G wall-mounted enclosure Multi9 modular device <= 40 A fixed 48 direct 8; 650 mm 400 mm PrismaSeT P cubicle Multi9 modular device <= 40 A fixed 48 direct 8
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 48
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 8
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481872784
- SAP 1200546625
- Code 82880193
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric flush mounted selector switch head key 8D1 2 pos return right to left ZB5FG6D
Schneider Electric
Schneider Electric safety module advanced electronic card, APM, 24 V DC VW3A3802
Schneider Electric
Schneider Electric Complete body contact assembly, Harmony XB5, single contact, with fixing collar, plastic, 2NC, compact push in terminals ZB5AZ1045
Schneider Electric
Modular frame 20X8 (NSYCSH208)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX630R, 200KA/415VAC, 3 poles, MicroLogic 6.3E trip unit 630A C63R36E630
Schneider Electric
Schneider Electric APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H x 600W x 1200D mm AR3307
Schneider Electric

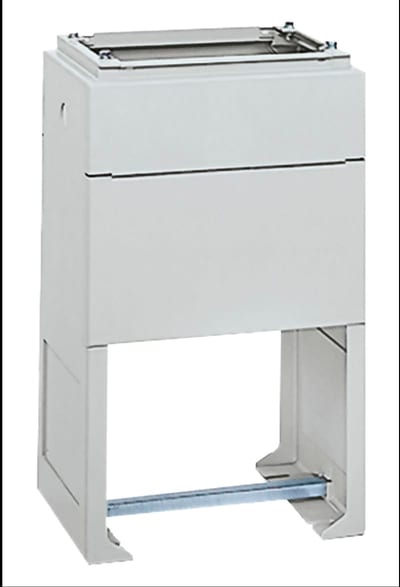

900mm Plinth 7035 1000X320
