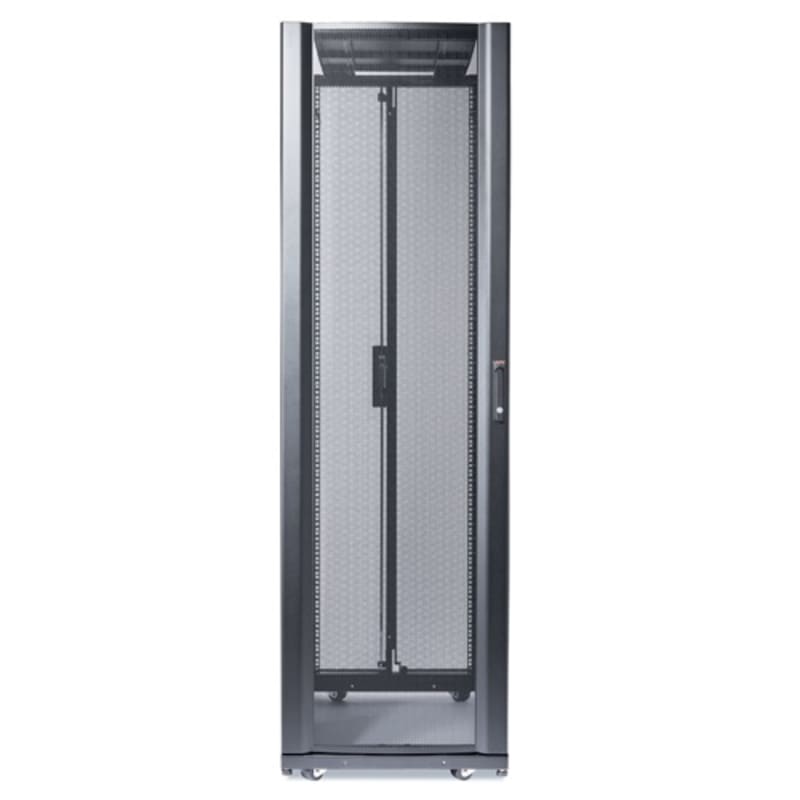

Schneider Electric APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H x 600W x 1200D mm AR3307
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AR3307 NetShelter SX 48U 600mm Wide x.
Technical Specifications
- Manufacturer part number (MPN)
- AR3307 EAN / GTIN: 0731304256281 Sales unit: pcs Product or component type: Rack enclosure Number of rack unit: 48U Provided equipment: Baying hardware; Key(s); Leveling feet; Mounting hardware; Pre-installed casters; Side panels Height: 2258 mm Width: 600 mm Depth: 1200 mm Product weight: 149.55 kg Colour: Black Mounting preference: No preference mounting mode: Not rack-mountable Maximum mounting depth: 1059.9 mm minimum mounting depth: 190.5 mm Rack width: 19" Marking: 14 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 18 gauge rear door; 18 gauge roof; 18 gauge side panels Permanent permissible load: 1020.6 kg dynamic; 1701.0 kg static Standards: UL 2416; UL 60950-1; EIA-310E Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 238.5 cm Package 1 Width: 75.2 cm Package 1 Length: 133.4 cm Package 1 Weight: 165.45 kg Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: None Number of height units: 48 Max. load capacity: 1701 kg With roof plate: Yes With earthing: No With front door: Yes With sidewall: Yes Demountable: Yes material: Steel Surface finishing: Powder coating Degree of protection (IP): IP20 Country of origin: Czechia
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 0731304256281
- SAP 1000462851
- Code 8570681
Product Documentation
