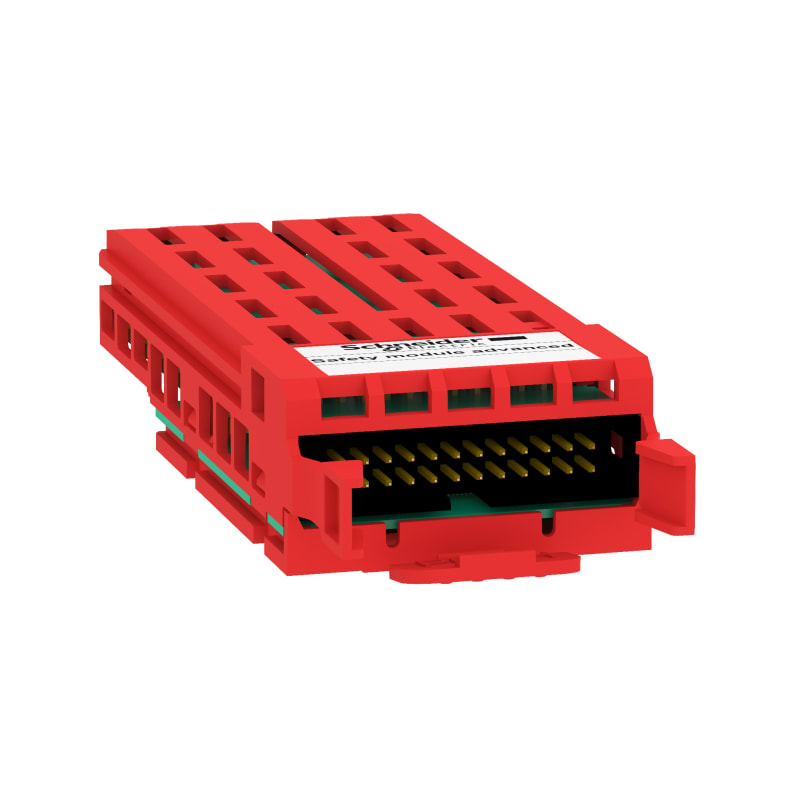

Schneider Electric safety module advanced electronic card, APM, 24 V DC VW3A3802
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A3802 Safety Module for ATV340 & 900 variable-frequency drives SS1, SLS, SMS & SBC.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A3802
- EAN / GTIN
- 3606485441245
- HS code
- 8504.40
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Range of product
- Altivar Process ATV900; Altivar Machine ATV340
- Product or component type
- Safety module
- Product specific application
- Material working; Material handling; Architecture without suspended/vertical or pulling loads
- Safety function
- SS1 (safe stop 1); SLS (safe limited speed); SMS (safe maximum speed); SBC (safe brake control)
- Rated voltage
- 24 V DC - 15...20 %
- Output voltage
- 24 V DC
- Input current
- <= 20 mA without load
- Maximum switching current
- 0.5 A
- Maximum voltage drop
- <1 V at 0.5 A
- Residual ripple
- < 5 %
- Inductive load
- 15 H for for 100 mA; 0.6 H for for 500 mA
- Maximum load capacitance
- 1 µF
- Mounting support
- Integrated in drive
- Standards
- IEC/EN 61800-5-2
- Country of origin
- ID
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606485441245
- SAP 1200722503
- Code 83865988
