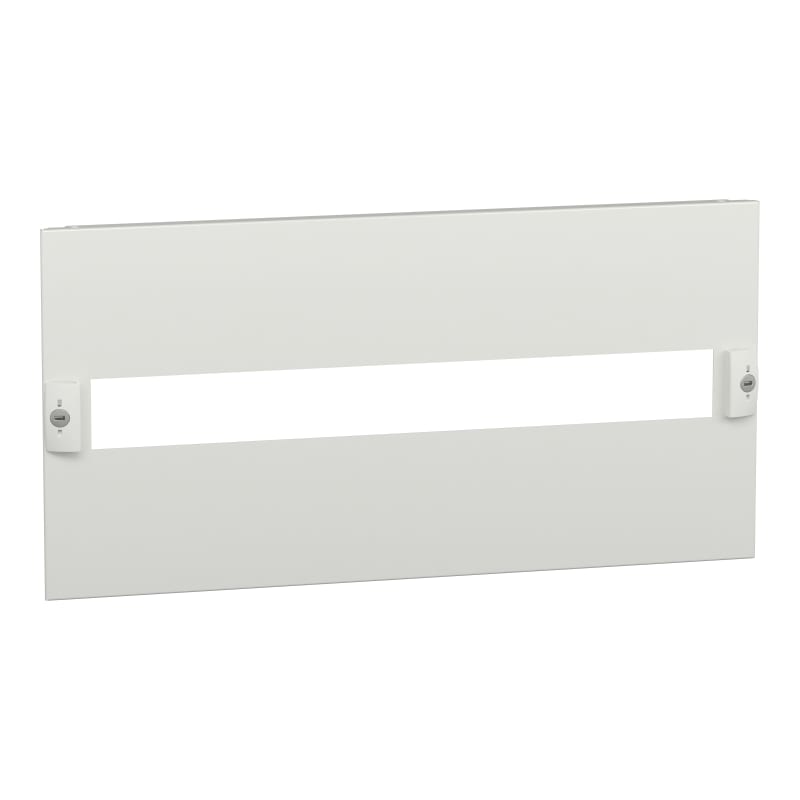

Front plate 5M modular products PrismaSeT G/P

Frontplate-5 Modules for Modular products-PrismaSeT G/P-for 600/650mm felt.

Manufacturer part number (MPN)

LVS03205

EAN / GTIN

3606481872715

Sales unit

pcs

Package quantity

10 pcs

Range

PrismaSeT

Range of product

PrismaSeT G; PrismaSeT P

Product or component type

Front plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle

Type of front plate

Modular; Cut-out

Installed device

ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; Acti 9: fixed C120 without earth leakage protection - control: toggle; TeSys: fixed GV3; Acti 9: fixed iC120 without earth leakage protection - control: toggle; Multi9: fixed NG125 without earth leakage protection - control: toggle; Multi9: fixed NG125 NA - control: toggle; ComPact: fixed NG160 without earth leakage protection - control: toggle; ComPact: fixed NG160 NA without earth leakage protection - control: toggle; TeSys: fixed TeSys U - horizontal installation; Acti 9: fixed C120 with earth leakage protection - control: toggle; Acti 9: fixed iC120 with earth leakage protection - control: toggle; Multi9: fixed NG125 with earth leakage protection - control: toggle; ComPact: fixed NG160 with earth leakage protection - control: toggle; ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation

Poles description

1 x 3P: modular rail support: INS100 vertical installation; 1 x 4P: modular rail support: INS100 vertical installation; 1 x 3P: modular rail support: INS125 vertical installation; 1 x 4P: modular rail support: INS125 vertical installation; 1 x 3P: modular rail support: INS160 vertical installation; 1 x 4P: modular rail support: INS160 vertical installation; 1 x 3P: modular rail support: C120; 1 x 4P: modular rail support: C120; 7 x 3P: modular rail support: GV3; 1 x 3P: modular rail support: iC120; 1 x 4P: modular rail support: iC120; 1 x 3P: modular rail support: NG125; 1 x 4P: modular rail support: NG125; 1 x 3P: modular rail support: NG125 NA; 1 x 4P: modular rail support: NG125 NA; 1 x 3P: modular rail support: NG160; 1 x 4P: modular rail support: NG160; 1 x 3P: modular rail support: NG160 NA; 1 x 4P: modular rail support: NG160 NA; 9 x 3P: modular rail support: TeSys U horizontal installation; 1 x 3P or 4P: modular rail support: NSXm vertical installation; 5 x 3P: mounting plate support: NSXm vertical installation; 4 x 4P: mounting plate support: NSXm vertical installation; 4 x 3P or 4P: mounting plate support: NSXm vertical installation

Operating position

Vertical

Enclosure/cubicle description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 555 mm

Connection position

Direct connection

9 mm pitches

48

Number of 18 mm modules per row

24

Number of vertical modules [50 mm]

5

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Material

Steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Textured; Matt

Colour

White (RAL 9003)

Width

500 mm

Height

250 mm

Product weight

0.92 kg

Quantity per set

Set of 1

functional unit

600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Acti 9 C120 without fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Acti 9 C120 without fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure TeSys GV3 fixed 3P 7 direct 5; 600 mm PrismaSeT G wall-mounted enclosure TeSys GV3 fixed 3P 7 direct 5; 650 mm 400 mm PrismaSeT P cubicle TeSys GV3 fixed 3P 7 direct 5; 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Acti 9 iC120 without fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Acti 9 iC120 without fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 without fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 without fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 without fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 NA fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 NA fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 NA fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 NA fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 NA fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 NA fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 without fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 without fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 without fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 NA without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 NA without fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 NA without fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 NA without fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 NA without fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 NA without fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle TeSys TeSys U fixed horizontal 3P 9 direct 5; 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Acti 9 C120 with fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Acti 9 C120 with fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Acti 9 iC120 with fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Acti 9 iC120 with fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 with fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 with fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 with fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 with fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 with fixed toggle 3P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 with fixed toggle 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 with fixed toggle 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 with fixed toggle 4P 1 direct 5; 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7; 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 connection block 7; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 connection block 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle vertical 3P 5 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle vertical 4P 4 direct 8; 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7; 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 connection block 7; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 connection block 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm with fixed toggle vertical 3P or 4P 4 direct 8

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

30.500 cm

Package 1 Length

51.000 cm

Package 1 Weight

976.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

9

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

9.622 kg

Unit Type of Package 3

P12

Number of Units in Package 3

108

Package 3 Height

105.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

128.000 kg

Country of origin

FR

Warranty (in months)

18

Suitable for enclosure building width

600 mm

Number of height units

5

Surface finishing

Powder coating

HS Code

7326.90

• EAN 3606481872715
• SAP 1200546616
• Code 82879615
