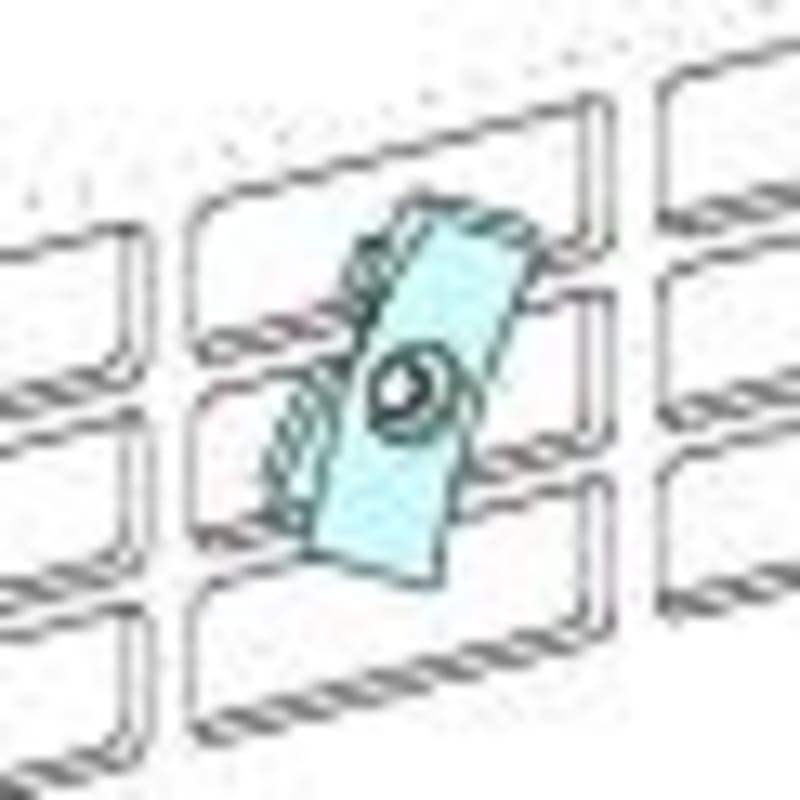

Clip Nuts-HULLETRAIL-20ST-M5-PRISMA (LVS03181)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03181 — 20 SLOTTED M.PL. M5 CLIP-NUTS.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03181
- EAN / GTIN
- 3606481869296
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P; PrismaSeT G
- Product or component type
- Clip-nuts
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle; PrismaSeT PrismaSeT G mounting plate; PrismaSeT Prisma POLAR WHITE cubicle; PrismaSeT Prisma iPM L enclosure; PrismaSeT Prisma iPM M enclosure
- mounting mode
- By clips
- Mounting support
- Slotted mounting plate
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle; Cubicle duct
- ISO thread
- M5
- Quantity per set
- Set of 20
- Colour
- Natural
- Product weight
- 0.095 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 3.500 cm
- Package 1 Length
- 8.000 cm
- Package 1 Weight
- 95.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 50
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 5.008 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Spare part
- Yes
- Accessory
- Yes
- Type of accessory/spare part
- Fastening parts/-set
- Material
- Steel
Standards & Compliance
- HS Code
- 7318.16
Cross References
- EAN 3606481869296
- SAP 1200546601
- Code 82880180
Product Documentation
