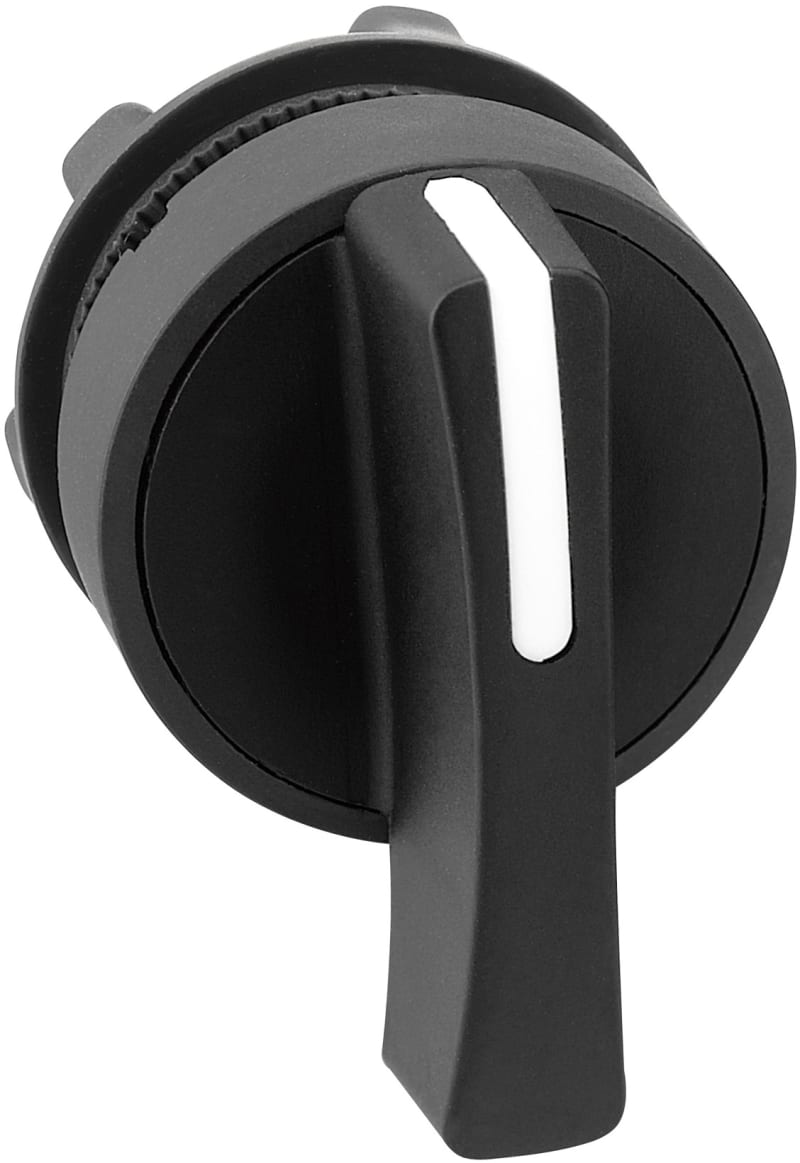

Schneider Electric ZB5AJ5 black selector switch head Ø22 3-Position spring return

Schneider Electric ZB5AJ5 black selector switch head Ø22 3-Position spring return is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Range of product: Harmony XB5; Product or component type: Head for selector switch; Device short name: ZB5; Bezel material: Dark grey plastic.

Manufacturer part number (MPN)

ZB5AJ5

EAN / GTIN

3389110906035

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for selector switch

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

To centre spring return

Operator profile

Black long handle

Operator additional information

Non padlockable

Operator position information

3 positions +/- 45°

CAD overall width

29 mm

CAD overall height

38 mm

CAD overall depth

46 mm

Product weight

0.017 kg

Mechanical durability

1000000 cycles

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK06 conforming to IEC 50102

Standards

CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-4; UL 508; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.5 cm

Package 1 Width

5.2 cm

Package 1 Length

5.4 cm

Package 1 Weight

24 g

Unit Type of Package 2

S02

Number of Units in Package 2

100

Package 2 Height

15 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

2.75 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

Yes

Colour front ring

Black

Degree of protection (IP), front side

IP67

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Short rotary handle

Colour control element

Black

Switching function latching

No

Degree of protection (NEMA)

13

HS Code

8538.90

• EAN 3389110906035
• SAP 1000036526
• Code 8735226
