MOUNTING PLATE Double 3P
Pricing
Request a quote
We reply within 24 hours
Product Description

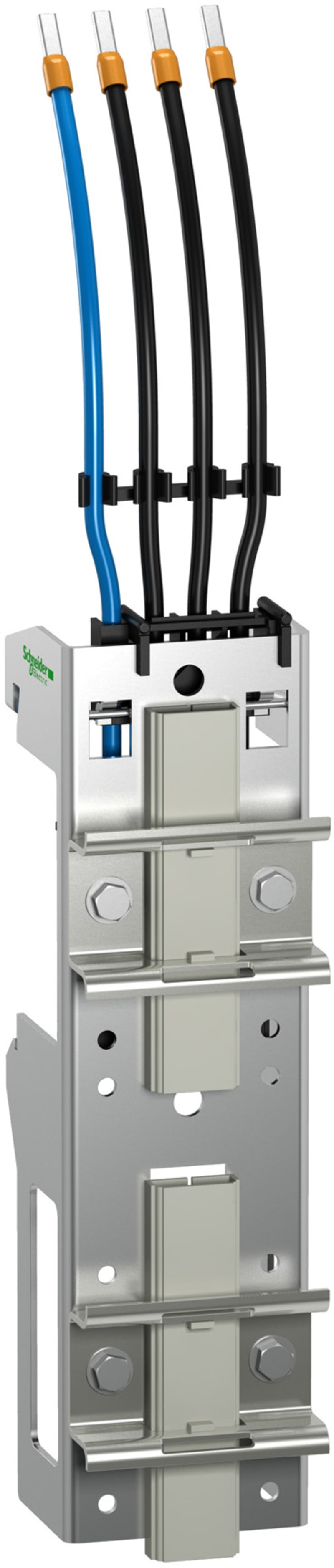

Schneider Electric AK5PA232 Busbar Mounting plate Double 3P.
Technical Specifications
- Manufacturer part number (MPN)
- AK5PA232
- EAN / GTIN
- 3389110576726
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Number of poles
- 3P
- Range
- Linergy
- Product name
- HK
- Product or component type
- Mounting plate
- Poles description
- 3P
- I²t on activation
- 200000 A².s
- Number of cables
- 3 cable(s) 4 mm² at 105 °C
- [Ith] conventional free air thermal current
- 25 A
- Width
- 54 mm
- Height
- 190 mm
- Depth
- 61 mm
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60439-1
- 9 mm pitches
- 6
- Product weight
- 0.23 kg
- Standards
- IEC 60439
- Product certifications
- UL; DNV; CSA; LROS (Lloyds register of shipping)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Number of Units in Package 3
- 160
- Country of origin
- FR
- Warranty (in months)
- 18
- Colour
- Grey
- RAL-number
- 7021
- With locking
- Yes
- Protection
- None
- Number of conductors (without earthing)
- 3
- Phase selection
- No
- Length
- 54 mm
- Degree of protection (IP)
- IP20
- Branch off type
- Cable
- Rated voltage AC 50 Hz
- 400–690 V
- Rated current AC 50 Hz
- 25 A
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3389110576726
- SAP 1000076716
- Code 8755759
Product Documentation
