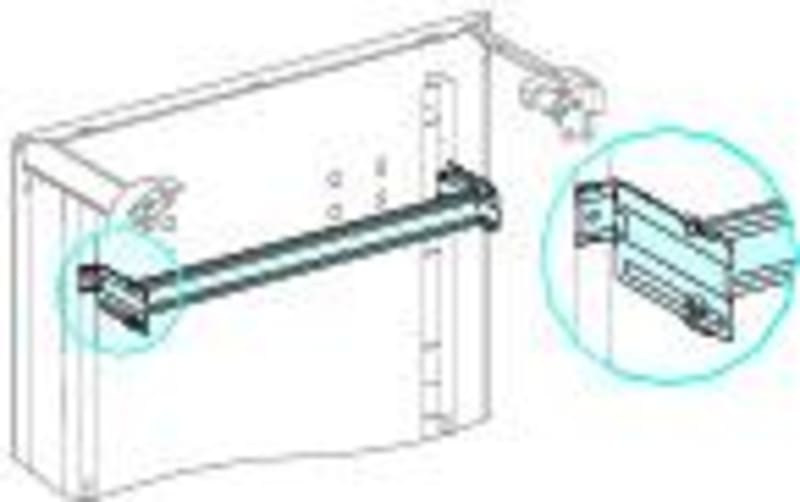

DIN sk.justerb.PrismaSeT G B600MM

Schneider Electric LVS03002 — W600 ADJUSTABLE MOD. DEV. RAIL PRISMA G.

Manufacturer part number (MPN)

LVS03002

EAN / GTIN

3606481875426

Sales unit

pcs

Package quantity

10 pcs

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Rail

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G

Type of rail

Modular; Adjustable

Installed device

TeSys: fixed GV2L; TeSys: fixed GV2P; TeSys: fixed GV3; ComPact: fixed NG160 without earth leakage protection - control: toggle; ComPact: fixed NG160 NA without earth leakage protection - control: toggle; ComPact: fixed NG160 with earth leakage protection - control: toggle; ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation

Poles description

9 x 3P: fixed GV2L; 9 x 3P: fixed GV2P; 7 x 3P: fixed GV3; 1 x 3P: fixed NG160; 1 x 4P: fixed NG160; 1 x 3P: fixed NG160 NA; 1 x 4P: fixed NG160 NA; 1 x 3P or 4P: fixed NSXm vertical installation

installation description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm

Number of vertical modules [50 mm]

3 module(s): GV2L, direct in 600 mm Widefloor-standing enclosure; 3 module(s): GV2L, direct in 600 mm Widewall-mounted enclosure; 3 module(s): GV2P, direct in 600 mm Widefloor-standing enclosure; 3 module(s): GV2P, direct in 600 mm Widewall-mounted enclosure; 5 module(s): GV3, direct in 600 mm Widefloor-standing enclosure; 5 module(s): GV3, direct in 600 mm Widewall-mounted enclosure; 5 module(s): NG160 without earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 5 module(s): NG160 without earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 5 module(s): NG160 NA without earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 5 module(s): NG160 NA without earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 7 module(s): NSXm without earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 7 module(s): NSXm without earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 7 module(s): NSXm without earth leakage protection , connection block in 600 mm Widefloor-standing enclosure; 7 module(s): NSXm without earth leakage protection , connection block in 600 mm Widewall-mounted enclosure; 5 module(s): NG160 with earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 5 module(s): NG160 with earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 7 module(s): NSXm with earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 7 module(s): NSXm with earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 7 module(s): NSXm with earth leakage protection , connection block in 600 mm Widefloor-standing enclosure; 7 module(s): NSXm with earth leakage protection , connection block in 600 mm Widewall-mounted enclosure

9 mm pitches

48

Quantity per set

Set of 1

Height

58 mm

Width

467 mm

Depth

97 mm

Product weight

0.34 kg

Colour

Natural

Material

Metal

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.500 cm

Package 1 Width

5.700 cm

Package 1 Length

46.800 cm

Package 1 Weight

311.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

15.500 cm

Package 2 Width

31.000 cm

Package 2 Length

49.000 cm

Package 2 Weight

3.540 kg

Unit Type of Package 3

P12

Number of Units in Package 3

300

Package 3 Height

104.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

107.300 kg

Country of origin

FR

Warranty (in months)

18

• EAN 3606481875426
• SAP 1200546860
• Code 82879602
