Schneider Electric

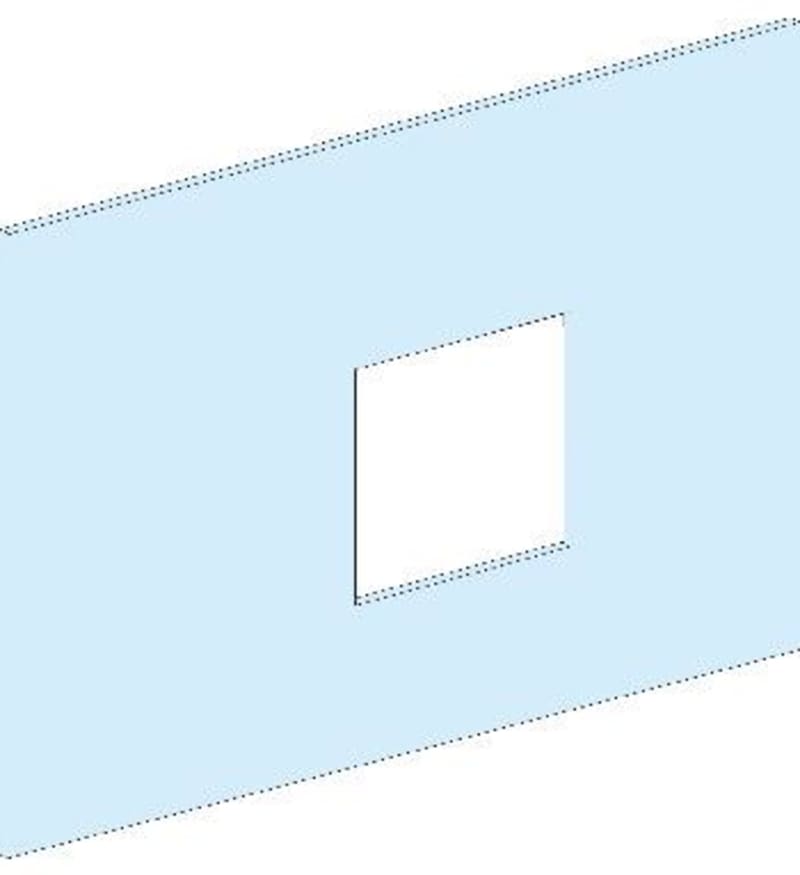

Front plate NSX630 vertical PrismaSeT G/P
Part numberLVS03275EAN / GTIN3606481873248HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03275 — FR.PL.NSX/CVS630 V.TOG/ROT/PLUG W600 9M.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03275
- EAN / GTIN
- 3606481873248
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX400 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS400 without earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX630 without earth leakage protection - control: motor mechanism - vertical installation
- Poles description
- 1 x 4P: mounting plate support: NSX400 vertical installation; 1 x 3P: mounting plate support: CVS400 vertical installation; 1 x 4P: mounting plate support: CVS400 vertical installation; 1 x 3P: mounting plate support: CVS630 vertical installation; 1 x 4P: mounting plate support: CVS630 vertical installation; 1 x 3P: mounting plate support: NSX400 vertical installation; 1 x 3P: mounting plate support: NSX630 vertical installation; 1 x 4P: mounting plate support: NSX630 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Connection position
- Linergy FC; Direct connection
- Number of vertical modules [50 mm]
- 9
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 450 mm
- Product weight
- 1.72 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle vertical 4P 1 direct; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 without fixed toggle vertical 4P 1 direct; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism vertical 4P 1 direct 13; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS400 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS400 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS400 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS400 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 15; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS630 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS630 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS630 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS630 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 15; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle vertical 3P 1 direct with long terminal shield 12; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 without fixed toggle vertical 3P 1 direct with long terminal shield 12; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle vertical 4P 1 direct with long terminal shield 12; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 without fixed toggle vertical 4P 1 direct with long terminal shield 12; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 15; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle vertical 3P 1 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX630 without fixed toggle vertical 3P 1 direct with long terminal shield 13; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle vertical 4P 1 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX630 without fixed toggle vertical 4P 1 direct with long terminal shield 13; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX630 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX630 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 15
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 45.000 cm
- Package 1 Length
- 51.000 cm
- Package 1 Weight
- 1.094 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 9
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 10.754 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 36
- Package 3 Height
- 45.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 55.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 9
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481873248
- SAP 1200546642
- Code 82880489
