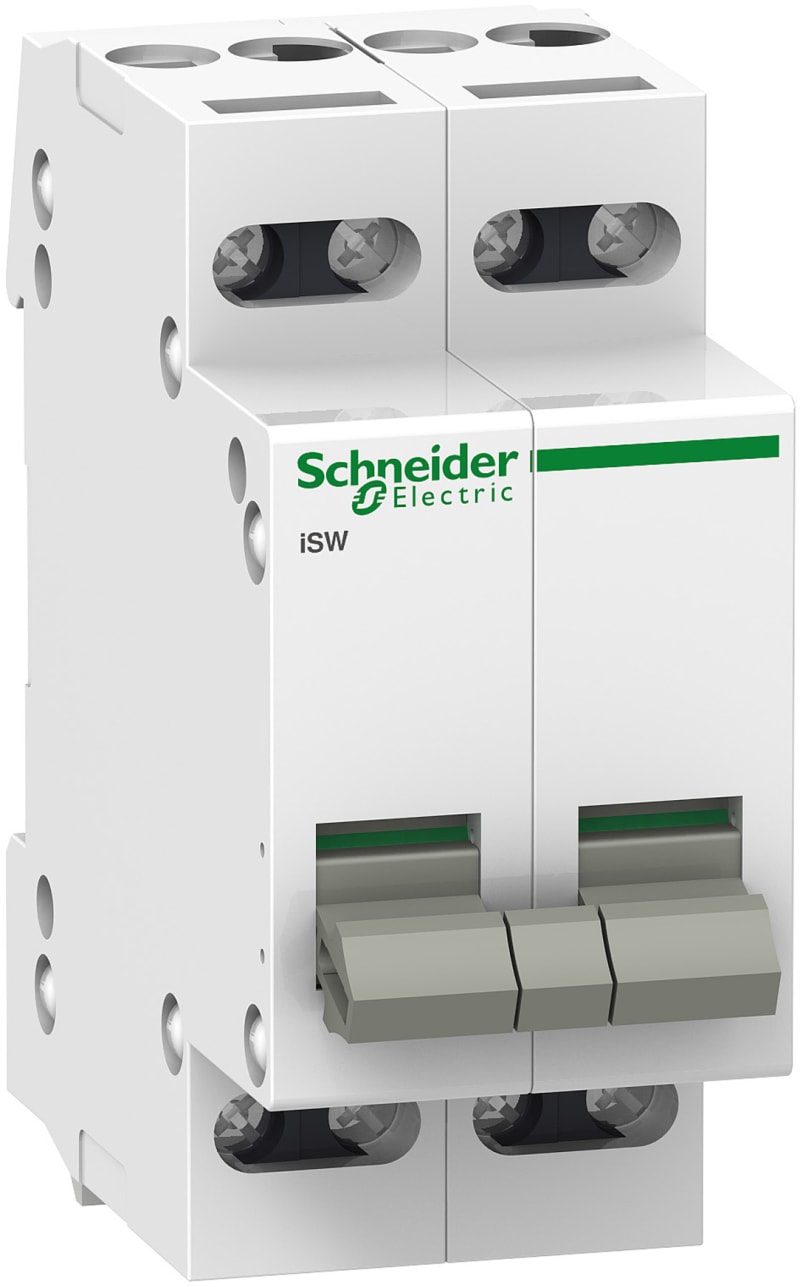

Schneider Electric switch ACTI9 iSW - 3 poles - 20 A - 415V A9S60320
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9S60320 Load-break switch iSW 3P 20A 415V.
Technical Specifications
- Manufacturer part number (MPN)
- A9S60320
- EAN / GTIN
- 3606480088698
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 415 V
- Rated current
- 20 A
- Number of poles
- 3P
- Range
- Acti9
- Product name
- Acti9 iSW
- Product or component type
- Switch disconnector
- Device short name
- iSW
- Device application
- Control
- Poles description
- 3P
- Utilisation category
- AC-22A
- Suitability for isolation
- Yes
- [Ie] rated operational current
- 20 A at 415 V AC 50/60 Hz
- [Ue] rated operational voltage
- 415 V AC 50/60 Hz
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz conforming to EN/IEC 60669-2-4
- [Uimp] rated impulse withstand voltage
- 4 kV
- Control type
- Toggle
- Local signalling
- ON/OFF indication
- Contact position indicator
- Yes
- mounting mode
- Fixed
- Mounting support
- DIN rail
- 9 mm pitches
- 4
- Height
- 77 mm
- Width
- 36 mm
- Depth
- 70 mm
- Colour
- White
- Mechanical durability
- 300000 cycles
- Electrical durability
- 30000 cycles
- Connections - terminals
- Tunnel type terminals - 10 mm² - rigid; Tunnel type terminals - 10 mm² - flexible; Tunnel type terminals - 10 mm² - flexible with ferrule
- Wire stripping length
- 9 mm
- Tightening torque
- 1.2 N.m
- Standards
- EN/IEC 60669-2-4
- IP degree of protection
- IP4
- Pollution degree
- 2
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -20…50 °C
- Ambient air temperature for storage
- -40…70 °C
- Country of origin
- BE
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480088698
- SAP 1000326962
- Code 8355903
Product Documentation
More from Schneider Electric
Schneider Electric

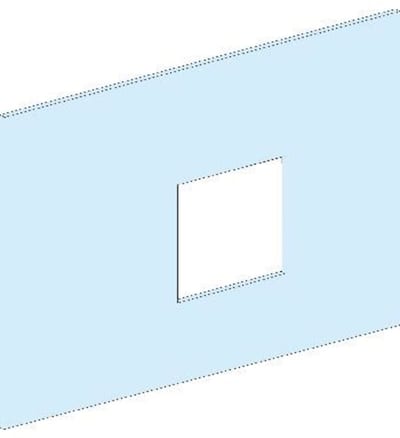

Front plate NSX630 vertical PrismaSeT G/P
LVS03275
Schneider Electric

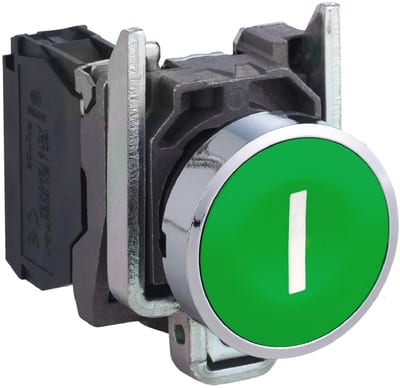

PUSH-Button Green in 1NO
XB4BA3311
Schneider Electric

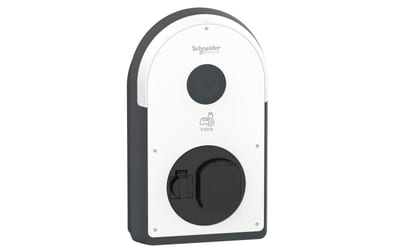

Schneider Electric Charging station, EVlink Pro AC/AC Metal, 22kW, 32A, 3P+N, T2S/TF socket-outlets, RDC-DD 6MA, MID meter EVB3S22N40FM
Schneider Electric
Schneider Electric Exiway Smartbeam DiCube - battery - 6.4 V - 1.5 Ah - LIFEPO4 - in line OVA51157
Schneider Electric

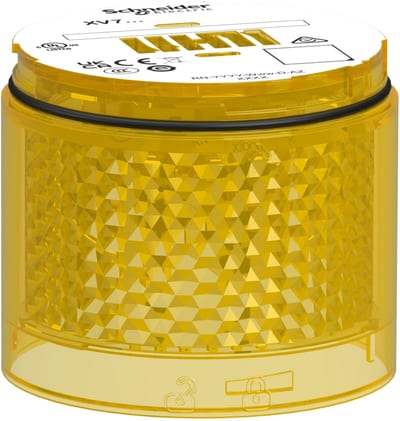

Light Unit with fast LED in yellow
XVB7C28
Schneider Electric

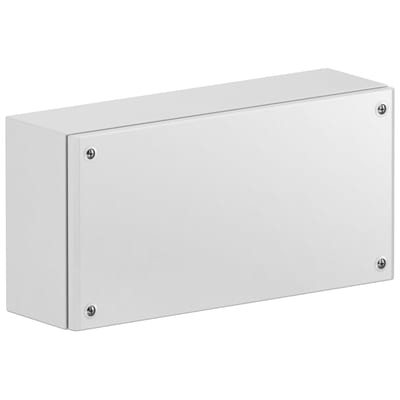

Schneider Electric Metal industrial box PanelSeT SBM H150XW150XD80 IP66 IK10 RAL 7035 NSYSBM15158
Schneider Electric

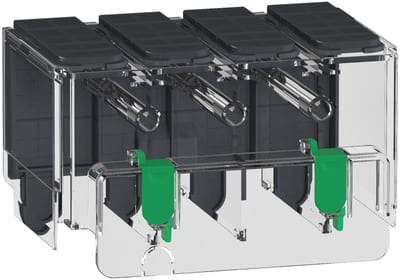

Term.cover long 4P NSXm 1 pcs
LV426913
Schneider Electric

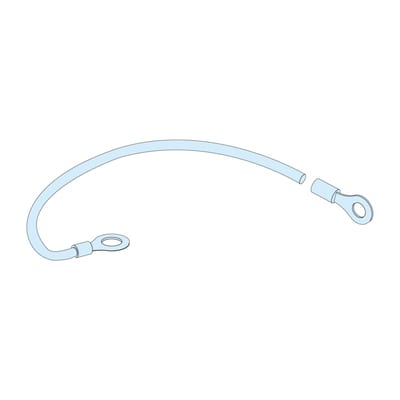

Earthing braid 6 mm² with 5/6mm SKO-L200 G/P
