Upper+lower frame SFN 800X800
Pricing
Request a quote
We reply within 24 hours
Product Description

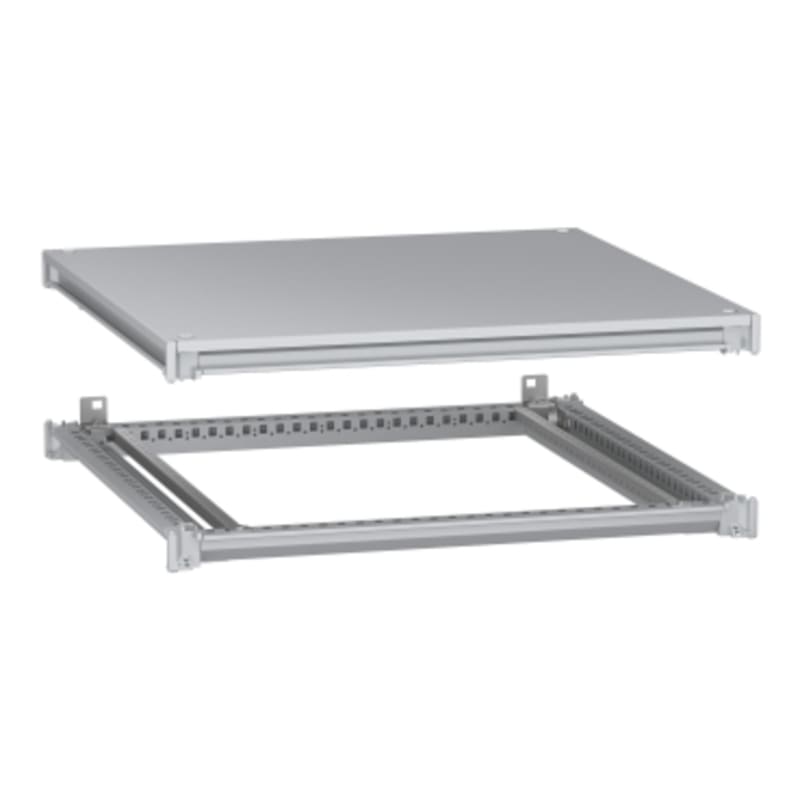

Schneider Electric NSYSFNC88 Upper and lower frame, PanelSeT SFN, 800x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFNC88
- EAN / GTIN
- 3606486104071
- Sales unit
- pcs
- Dimensions
- 800×800 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Application
- Multi-purpose
- Product or component type
- Framework kit
- For enclosure nominal dimensions
- - W: 800 mm D: 800 mm
- Mounting location
- Bottom of vertical uprights; Top of vertical uprights
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 bottom frame; 1 roof; 1 top frame
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - each corner of enclosure location
- Height
- 110 mm
- Width
- 800 mm
- Depth
- 800 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14.000 cm
- Package 1 Width
- 82.000 cm
- Package 1 Length
- 82.000 cm
- Package 1 Weight
- 23.000 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 8
- Package 2 Height
- 126.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 197.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Profile
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building depth
- 800 mm
- Max. load capacity
- 1500 kg
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486104071
- SAP 1200698233
- Code 83799702
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker basic frame, ComPacT NSX160L, 150KA/415VAC, 3 poles, 160A frame rating, without trip unit C16L3
Schneider Electric
Switch Block 20A (V01)
Schneider Electric
Connection Kit vert./hor. LGY 1600A 3P
LVS04683
Schneider Electric
Schneider Electric TeSys K control relay - 3 NO + 1 NC - <= 690 V - 24 V DC low consumption coil CA4KN31BW3
Schneider Electric

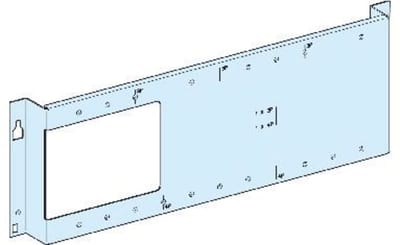

MONTPL.NSX250 PrismaG vertical fast/drei
LVS03041
Schneider Electric

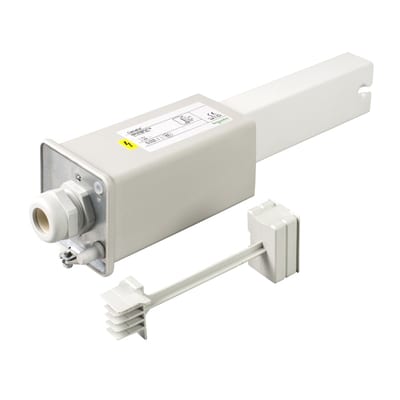

Endetilkobl 40A Venst BusWhite
KBA40ABG4TW
Schneider Electric

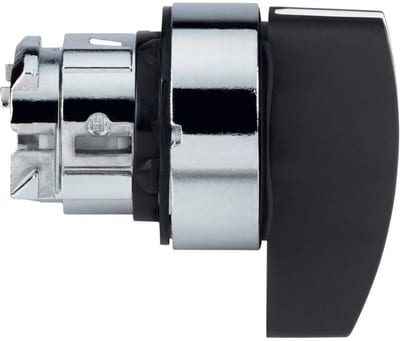

Selector Switch Head L.2 FAST POS. (ZB4BJ2)
Schneider Electric

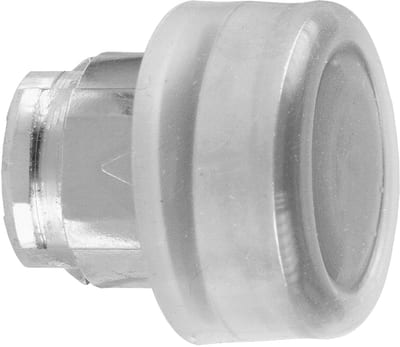

Schneider Electric ZB4BP2 Harmony XB4 Push-Button Head — Ø22 mm, Black, projecting, spring return, non-illuminated, metal bezel, booted
