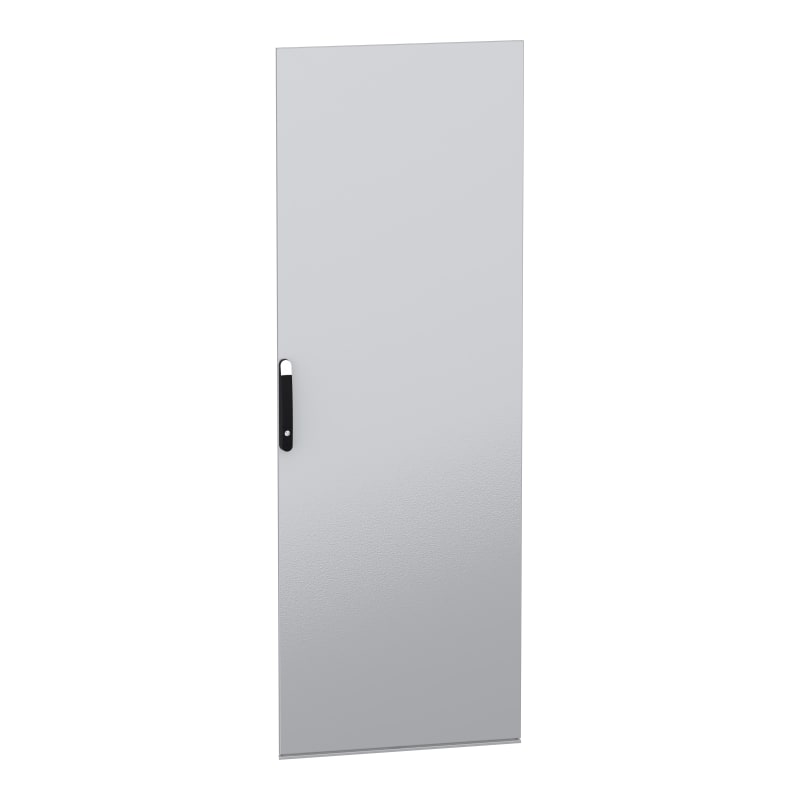

Door SFN/SM SP6000 2200X800
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFND228 Door, PanelSeT SFN/SM, complete with locking system, SP6000 2200x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND228
- EAN / GTIN
- 3606486378212
- Sales unit
- pcs
- Dimensions
- 2200×800 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 2200 mm W: 800 mm
- Mounting location
- Side; Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 door; 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 1 reinforcement frame; 4 hinges; 4 locking bar catches
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- Plain
- Door opening side
- Reversible (120 °)
- Height
- Nominal: 2200 mm
- Width
- Nominal: 769 mm
- Product weight
- 54.5 kg
- IK degree of protection
- IK10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378212
- SAP 1200697919
- Code 83799633
Product Documentation
More from Schneider Electric
Schneider Electric
Door SFN/SM 2200X1000
NSYSFND2210
Schneider Electric
Glassdoor SF/SM 1400X600
NSYSFND146T
Schneider Electric
Floor-Standing Cabinet 14X8X4 M.PL.
NSYSM14840P
Schneider Electric
Floor-Standing Cabinet 18X8X5 M.PL.
NSYSM18850P
Schneider Electric
Screw Terminal for XPSMC32
XPSMCTS32
Schneider Electric

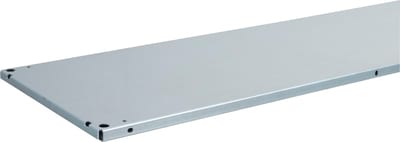

Mounting Plate 18X6 (NSYMP186)
Schneider Electric

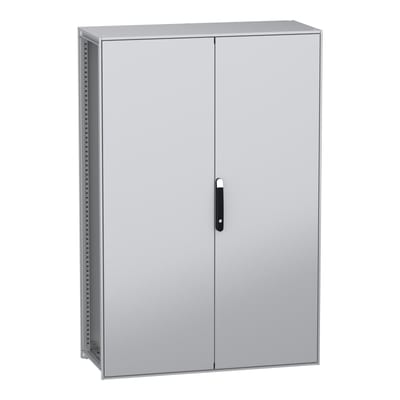

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X1200X500MM, 2 doors, IP55 NSYSFN1812502D
Schneider Electric

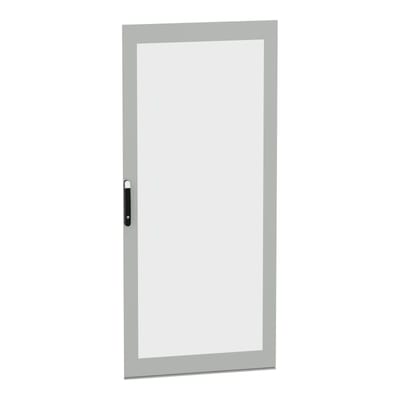

Glassdoor SFN/SM 2200X1000
