Floor-Standing Cabinet 14X8X4 M.PL.
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSM14840P Floor-standing cabinet 14X8X4 M.Pl.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSM14840P
- EAN / GTIN
- 3606485120072
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Range
- PanelSeT
- Product name
- PanelSeT SM
- Product or component type
- Compact enclosure
- Application
- Multi-purpose
- Installation accessory type
- Floor-standing
- Device composition
- 1 body; 1 cable gland plate; 1 locking system with handle: door; 4 mounting plate bracket; 1 mounting plate; 1 door
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Mounting plate bracket by screws
- Enclosure nominal height
- 1400 mm
- Enclosure nominal width
- 800 mm
- Enclosure nominal depth
- 400 mm
- Number of doors
- Front: 1 door(s)
- Door opening side
- Reversible (120 °)
- Door type
- Plain
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Body type
- Single piece body with welded rear panel; Front part forming a rigid frame with welded corners
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- cable entry
- 1 entry
- Material
- Mounting plate: galvanised steel; Body: sheet steel; Door: sheet steel; Hinge: zamak
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Accessibility for operation
- Front
- Product weight
- 80 kg
- Standards
- IEC 62208
- Product certifications
- UL; DNV; BV
- IK degree of protection
- IK10 conforming to IEC 62262; conforming to UL; conforming to cUL
- IP degree of protection
- IP55 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 800 mm
- Height
- 1400 mm
- Depth
- 400 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of locks
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 4900 N
- Max. permitted load of the door(s) according to IEC 62208
- 588 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606485120072
- SAP 1000089991
- Code 8915765
Product Documentation
More from Schneider Electric
Schneider Electric
Floor-Standing Cabinet 18X8X5 M.PL.
NSYSM18850P
Schneider Electric
Screw Terminal for XPSMC32
XPSMCTS32
Schneider Electric
Mounting Plate 18X6 (NSYMP186)
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X1200X500MM, 2 doors, IP55 NSYSFN1812502D
Schneider Electric
Glassdoor SFN/SM 2200X1000
NSYSFND2210T
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 225A, standard version, 48…130V wide band AC/DC coil LC1G225EHEN
Schneider Electric
Schneider Electric PanelSeT SM top/bottom adjustment rail - depth 600 mm NSYSTBR6
Schneider Electric

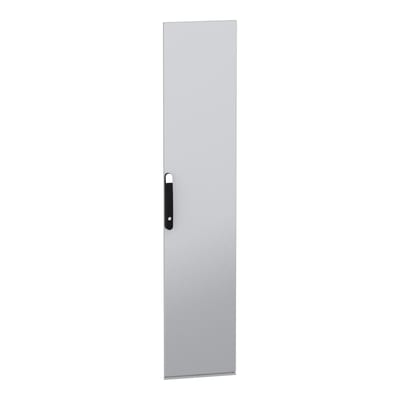

Door SFN/SM 1800X400
