Glassdoor SF/SM 1400X600
Pricing
Request a quote
We reply within 24 hours
Product Description

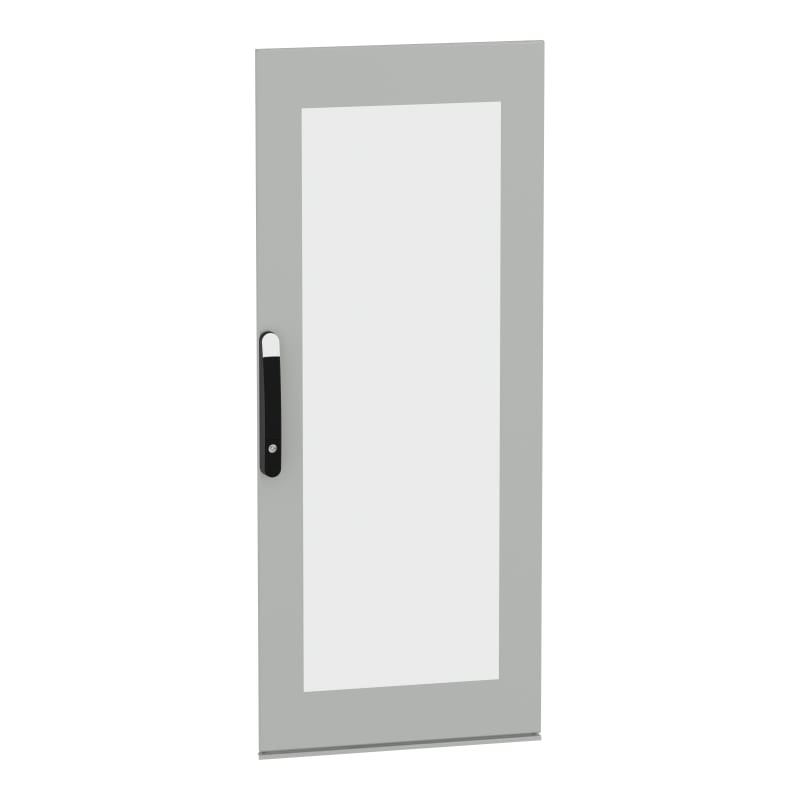

Schneider Electric NSYSFND146T Glass door, PanelSeT SFN/SM, complete with locking system, 1400x600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND146T
- EAN / GTIN
- 3606486378267
- Sales unit
- pcs
- Dimensions
- 1400×600 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 1400 mm W: 600 mm
- Mounting location
- Side; Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 door; 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 4 hinges; 4 locking bar catches
- Quantity per set
- Set of 1
- Material
- Door: Securit glass; Door: sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- Glazed
- Door opening side
- Reversible (120 °)
- Height
- Nominal: 1400 mm
- Width
- Nominal: 569 mm
- Product weight
- 12.6 kg
- IK degree of protection
- IK08
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378267
- SAP 1200698026
- Code 83799697
Product Documentation
More from Schneider Electric
Schneider Electric
Floor-Standing Cabinet 14X8X4 M.PL.
NSYSM14840P
Schneider Electric
Floor-Standing Cabinet 18X8X5 M.PL.
NSYSM18850P
Schneider Electric
Screw Terminal for XPSMC32
XPSMCTS32
Schneider Electric
Mounting Plate 18X6 (NSYMP186)
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X1200X500MM, 2 doors, IP55 NSYSFN1812502D
Schneider Electric
Glassdoor SFN/SM 2200X1000
NSYSFND2210T
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 225A, standard version, 48…130V wide band AC/DC coil LC1G225EHEN
Schneider Electric

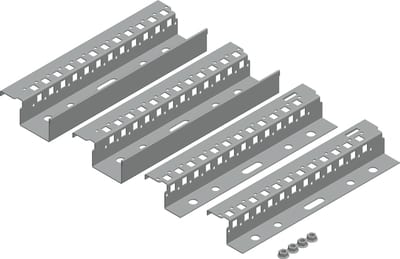

Schneider Electric PanelSeT SM top/bottom adjustment rail - depth 600 mm NSYSTBR6
