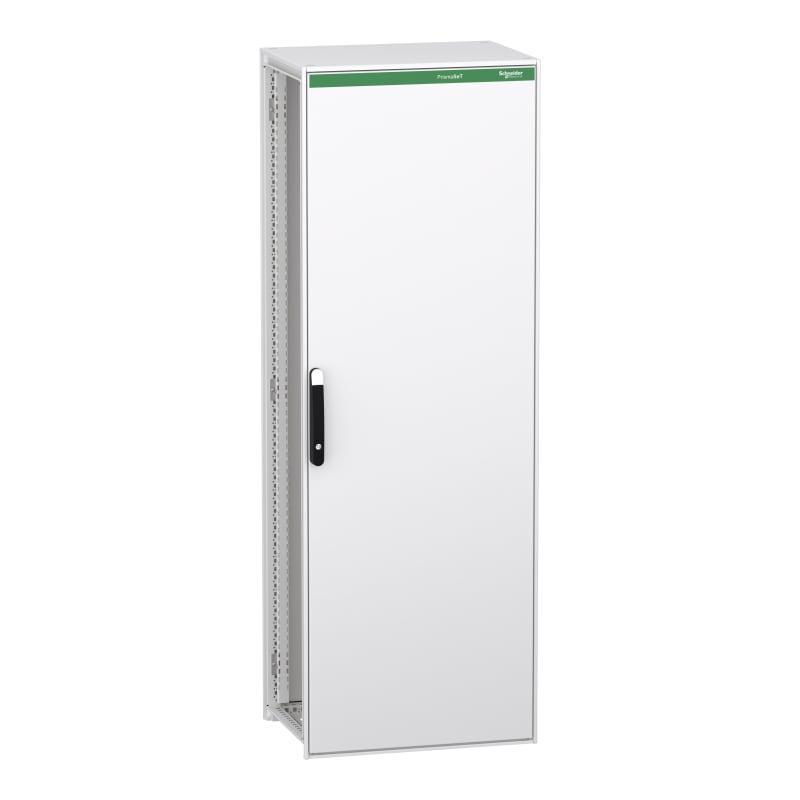

Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, 2000X700X500MM, IP55, RAL9003 NSYSFPN20750ED
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFPN20750ED Floor-standing cabinet for electrical distribution, PrismaSeT HD, decarbonised steel, 2000x700x500mm, IP55, RAL9003.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFPN20750ED
- EAN / GTIN
- 3606486445969
- Sales unit
- pcs
- Colour
- RAL 9003
- Dimensions
- 2000×700×500
- Range
- PrismaSeT
- Extended range
- PrismaSeT HD
- Application
- Low voltage electrical distribution
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2000 mm
- Enclosure nominal width
- 700 mm
- Enclosure nominal depth
- 500 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof; 4 adaptor upright
- Structure type
- Vertical uprights joined with top and bottom frames; Formed from a single section; Perforated structure with a pitch of 25 mm; Panels and doors built into the structure
- Door opening side
- Reversible (120 °)
- Door type
- Plain front
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Sides of enclosure; Rear; Front
- Removable parts
- Door by screws hinge; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws; Adaptor upright by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Product weight
- 79.8 kg
- Standards
- IEC 62208; IEC 61439-1; IEC 61439-2
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Environmental characteristic
- Harsh environment
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Width
- 700 mm
- Height
- 2000 mm
- Depth
- 500 mm
- RAL-number
- 9003
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- With ventilation door
- No
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486445969
- SAP 1200697951
- Code 83799753
Product Documentation
More from Schneider Electric
Schneider Electric
Gland Plate-Metal-B300-CABLEF-PRISMASETG (LVS08874)
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 NG125N, 1P, 25A, C curve, 25KA (IEC/EN 60947-2)
18613
Schneider Electric
Schneider Electric timing on impulse, one shot timing relay - 1 S..100 h - 24..240 V AC - 1 OC RE17RBMU
Schneider Electric
Mushroom Head Push/turn Black Ø30mm
ZB4BS42
Schneider Electric
Schneider Electric Advanced control unit, TeSys U, 0.35-1.4A, 1P motors, protection & diagnostic, class 10, coil 24V DC LUCC1XBL
Schneider Electric
Schneider Electric Trip unit MicroLogic Vigi 4.3, ComPacT NSX630, 3 poles, electronic basic and earth leakage protections, 570A rating C6334V570
Schneider Electric
DFU911 ASD Filter Unit
FFS06432677
Schneider Electric
Sinusfilter 400A IP00
VW3A5209
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSFPN20750ED?
- NSYSFPN20750ED can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSFPN20750ED.
- What is the HS code for NSYSFPN20750ED?
- The customs tariff (HS) code for NSYSFPN20750ED is 9403.20.
- Who manufactures NSYSFPN20750ED?
- NSYSFPN20750ED is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSFPN20750ED?
- Yes — the NSYSFPN20750ED datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSFPN20750ED?
- The minimum order quantity is 1.
- Is NSYSFPN20750ED available?
- Yes — NSYSFPN20750ED is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
