Door SFN/SM 1200X800
Pricing
Request a quote
We reply within 24 hours
Product Description

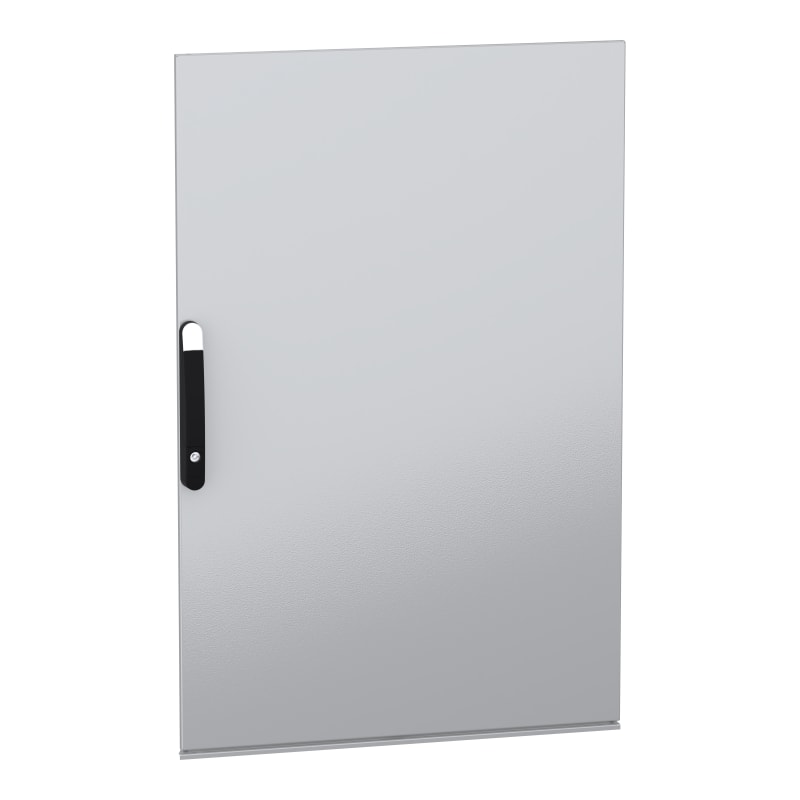

Schneider Electric NSYSFND128 Door, PanelSeT SFN/SM, complete with locking system, 1200x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND128
- EAN / GTIN
- 3606486377956
- Sales unit
- pcs
- Dimensions
- 1200×800 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 1200 mm W: 800 mm
- Mounting location
- Front; Side
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 door; 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 1 reinforcement frame; 4 hinges; 4 locking bar catches
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- Plain
- Door opening side
- Reversible (120 °)
- Maximum load
- 60 kg/m²
- Height
- Nominal: 1200 mm
- Width
- Nominal: 769 mm
- Product weight
- 17.3 kg
- IK degree of protection
- IK10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486377956
- SAP 1200698009
- Code 83799687
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSet WM enclosure canopy W1000XD400 Colour RAL7035.. Fixings supplied. NSYTJ10040
Schneider Electric

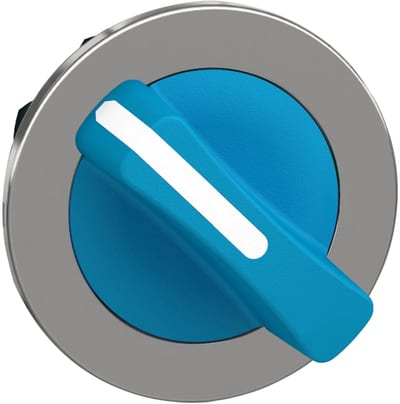

Selector Switch Head flush 2 fixed blue
ZB4FD206
Schneider Electric

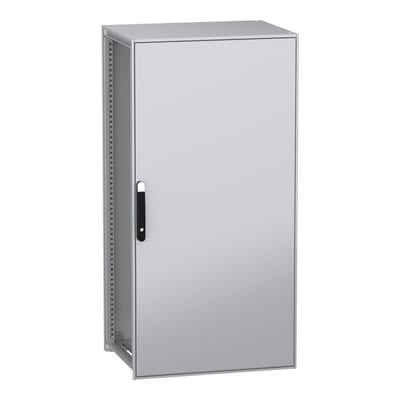

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1600X800X600MM, IP55 NSYSFN16860
Schneider Electric

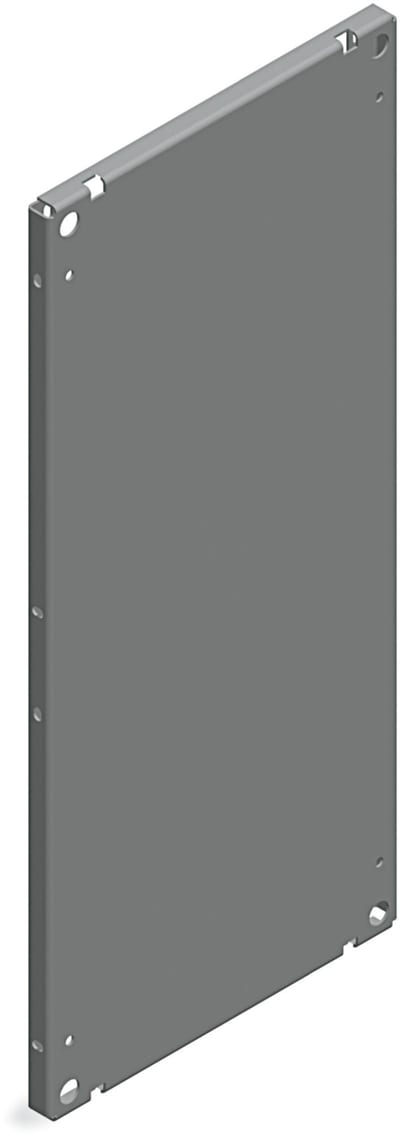

Mounting Plate 20X16
NSYMP2016
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 208V AC standard coil, snap-in terminals CAD32ALE7
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 120V AC standard coil, snap-in terminals CAD50AG7
Schneider Electric
Floor-Standing Cabinet 20X12X5 M.PL.
NSYSM2012502DP
Schneider Electric

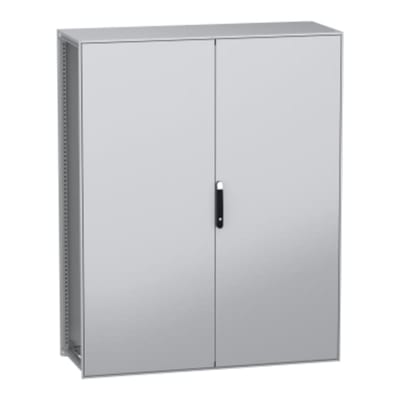

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1600X600MM, 2 doors, IP55 NSYSFN2016602D
