Mounting Plate 20X16
Pricing
Request a quote
We reply within 24 hours
Product Description

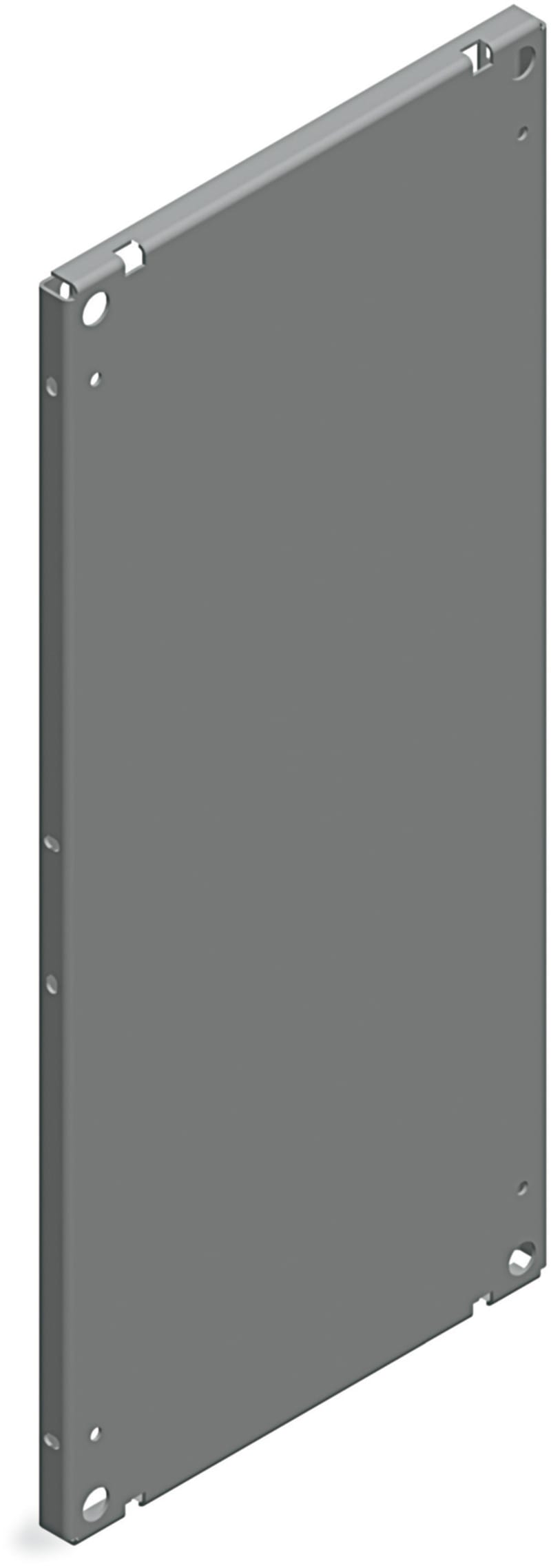

Schneider Electric Spacial SF/SM mounting plate - 2000x1600 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMP2016
- EAN / GTIN
- 3606485126937
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 2000 mm W: 1600 mm
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX
- Device composition
- 1 mounting plate; 2 sliding shoes
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing brackets
- Maximum load
- 300 kg/m²
- Permanent permissible load
- 500 kg intermediate position; 600 kg back of the enclosure
- Height
- Fixing centers: 1850 mm; Nominal: 2000 mm; Real: 1897 mm
- Width
- Fixing centers: 1450 mm; Nominal: 1600 mm; Real: 1496 mm
- Depth
- 27 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485126937
- SAP 1000089218
- Code 8882178
