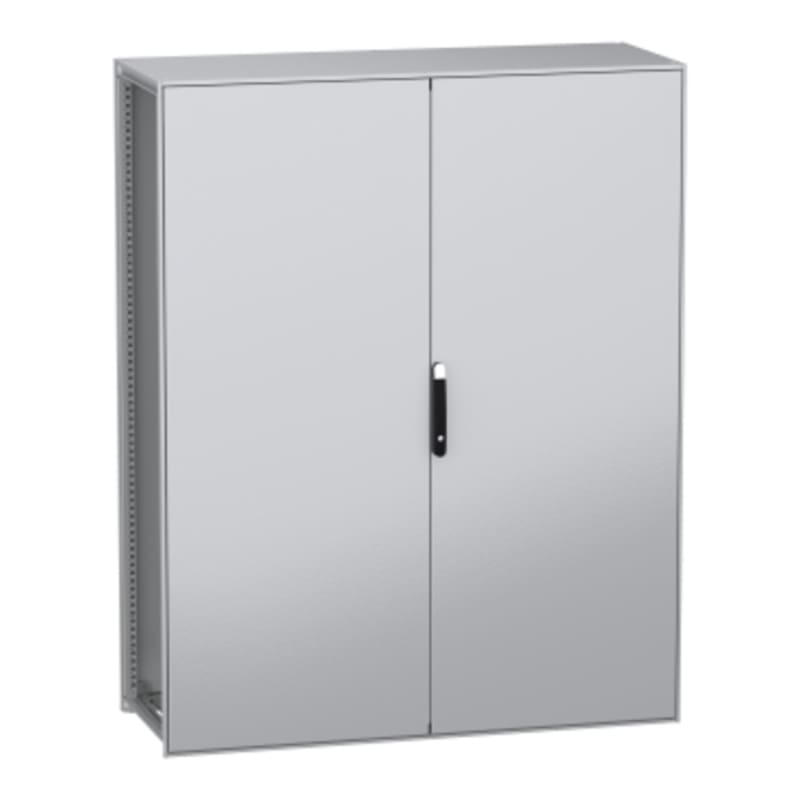

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1600X600MM, 2 doors, IP55 NSYSFN2016602D
Part numberNSYSFN2016602DEAN / GTIN3606486103678HS code9403.20
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFN2016602D Floor-standing cabinet byggbart, PanelSeT SFN, without mounting plate, IP55, 2000X1600X600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN2016602D
- EAN / GTIN
- 3606486103678
- Sales unit
- pcs
- Dimensions
- 2000×1600×600
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2000 mm
- Enclosure nominal width
- 1600 mm
- Enclosure nominal depth
- 600 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure: right door; 1 rear panel; 1 roof; 2 door; 1 locking system with handle; 1 locking bar system 4 points: right door; 1 locking bar system 2 points: left door
- Structure type
- Perforated structure with a pitch of 25 mm; Panels and doors built into the structure; Vertical uprights joined with top and bottom frames; Formed from a single section
- Door opening side
- Left (120 °); Right (120 °)
- Door type
- Plain front
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front right door
- Number of doors
- Front face: 2 door(s)
- Accessibility for operation
- Front; Rear; Sides of enclosure
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 147.4 kg
- Standards
- IEC 62208; UL; CUL
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Width
- 1600 mm
- Height
- 2000 mm
- Depth
- 600 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486103678
- SAP 1200698202
- Code 83799729
Product Documentation
Document preview: Schneider Electric NSYSFN2016602D — OEM Product Page
More from Schneider Electric
Schneider Electric
Floor-Standing Cabinet 16X10X3 M.PL.
NSYSM1610302DP
Schneider Electric
Dybderail 600mm (NSYMPS60)
Schneider Electric
Schneider Electric flush mounted green selector switch head 3 pos stay put ZB5FD303
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 72V DC standard coil, snap-in terminals CAD32ASD
Schneider Electric

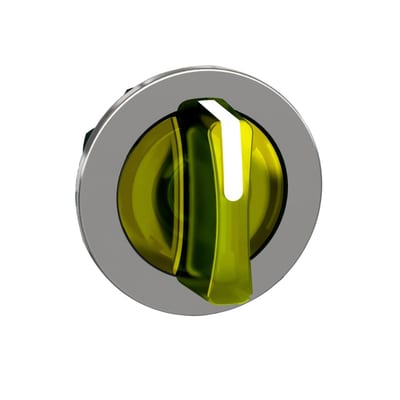

Selector switch flush for LED 3 pos yellow (ZB4FK1883)
Schneider Electric

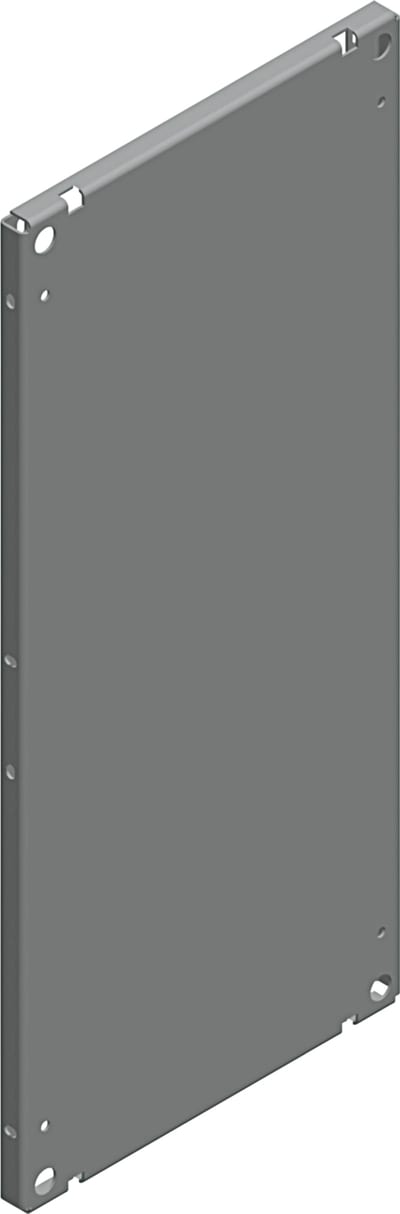

Mounting Plate 16X10
NSYMP1610
Schneider Electric

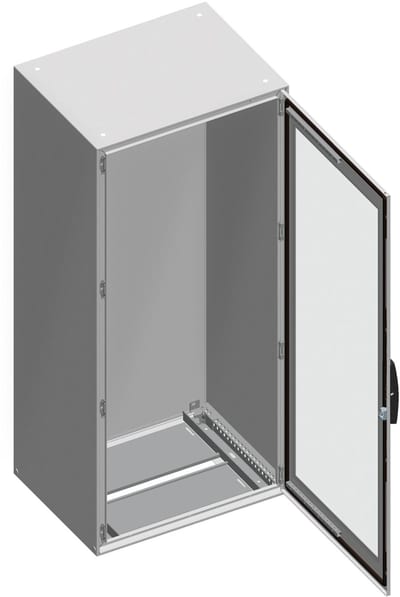

Schneider Electric PanelSeT SM compact enclosure with glazed door - 2000X800X500 mm NSYSM20850T
Schneider Electric

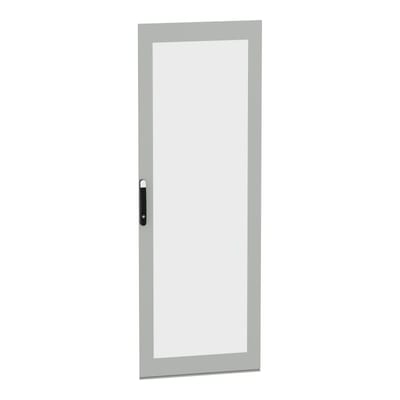

Glassdoor SFN/SM 2200X600 (NSYSFND228T)
