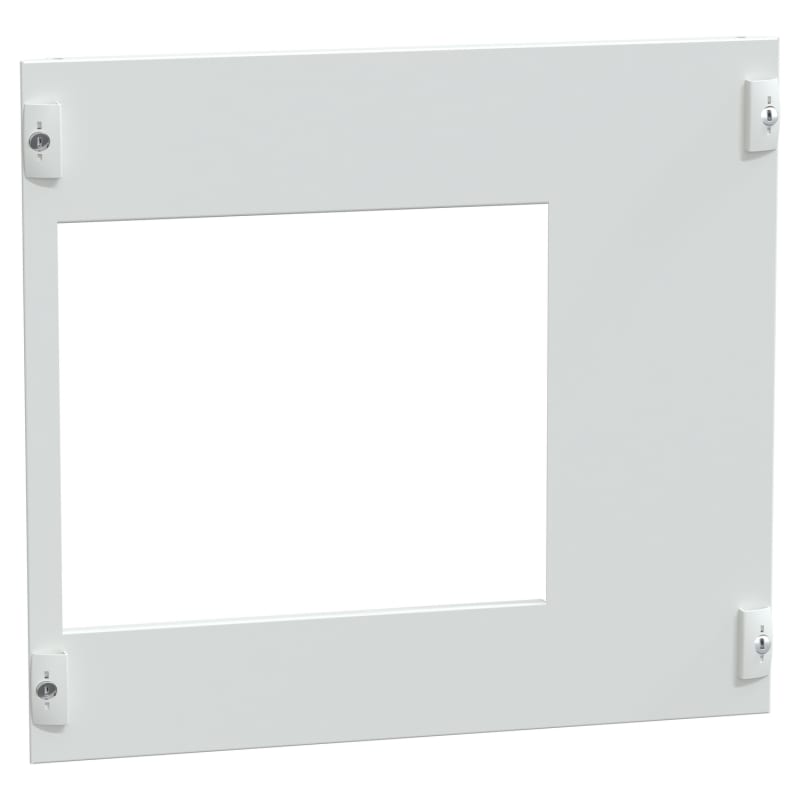

Front plate-ATS 800-1600A-3P/4P-PRISMA-9M
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03219 Front plate, PrismaSeT P-9M-for TransferPacT 800-1600A-3P/4P-vertical-fast mounting-B=650mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03219
- EAN / GTIN
- 3606487389569
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Type of front plate
- With cut-out
- Installed device
- TransferPacT: fixed TransferPacT 800...1600 with earth leakage protection - control: toggle - horizontal installation
- Poles description
- 1 x 3P or 4P: mounting plate support horizontal installation
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 600 mm
- Number of vertical modules [50 mm]
- 9
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 450 mm
- Product weight
- 1.54 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm PrismaSeT P cubicle TransferPacT with fixed switch vertical 3P or 4P 1 direct 9
- IP degree of protection
- IP30
- Ambient air temperature for storage
- 0…28 °C
- Ambient air temperature for operation
- 25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 24
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 9
- Suitable for enclosure building height
- 1200 mm
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606487389569
- SAP 1200968752
- Code 84294284
