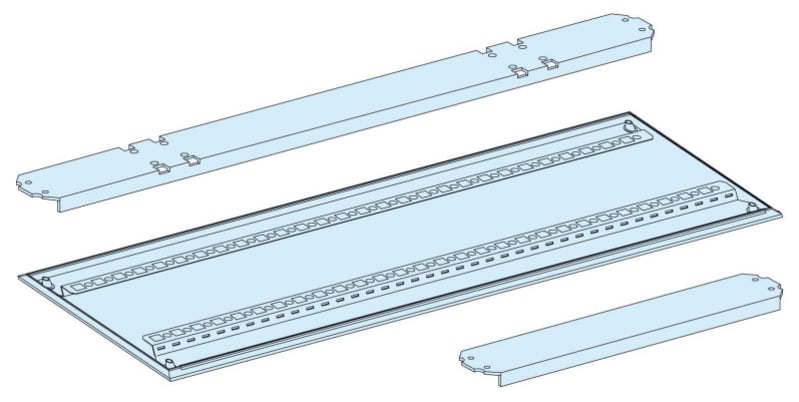

Extension Enclosure PrismaSeT G, IP55, 11 Modules, W 600 mm

Schneider Electric LVS08313 extension enclosure for PrismaSeT G, IP55, 11 modules high, width 600 mm.

Manufacturer part number (MPN)

LVS08313

EAN / GTIN

3606481884787

Sales unit

pcs

IP rating

IP55

Modular width

11 modules

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Rear panel

Device application

Low voltage electrical distribution

Enclosure type

Functional enclosure delivered in kit form

Additional information

Can be combined side by side and one on top of another

type of front plate

Without

Number of vertical modules [50 mm]

11

Number of 18 mm modules per row

24

[Ui] rated insulation voltage

1000 V on main rear busbars conforming to IEC 61439-2

Network frequency

50/60 Hz

[In] rated current

630 A at 40 °C conforming to IEC 61439-2

[Icw] rated short-time withstand current

25 kA 1 s conforming to IEC 61439-2

[Ipk] rated peak withstand current

53 kA conforming to IEC 61439-2

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Smooth

Colour

White (RAL 9001)

Width

600 mm

Height

650 mm

Depth

260 mm

Product weight

5.72 kg

Quantity per set

Set of 1

IP degree of protection

IP55 with door

IK degree of protection

IK10 with door conforming to EN/IEC 62262

Mechanical robustness

Seismic tests - 2.5G conforming to IEC 60068-2-57

Warranty (in months)

18

Suitable for enclosure building width

600 mm

Suitable for enclosure building height

650 mm

Material

Metal

RAL-number

9003

Country of origin

France

HS Code

7326.90

• EAN 3606481884787
• SAP 1200547510
• Code 82879161
