Floor-Standing Cabinet 12X12X4 U.PL. (NSYSM1212402D)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSM1212402D Floor-standing cabinet 12X12X4 U.Pl.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSM1212402D
- EAN / GTIN
- 3606485120485
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT SM
- Product or component type
- Compact enclosure
- Application
- Multi-purpose
- Installation accessory type
- Floor-standing
- Device composition
- 1 body; 2 door; 2 cable gland plate; 1 locking system with handle: door; 1 blocking system: left door; 4 mounting plate bracket
- Removable parts
- Door by screws hinge; Mounting plate bracket by screws
- Enclosure nominal height
- 1200 mm
- Enclosure nominal width
- 1200 mm
- Enclosure nominal depth
- 400 mm
- Number of doors
- Front: 2 door(s)
- Door opening side
- Left (120 °); Right (120 °)
- Door type
- Plain
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Body type
- Front part forming a rigid frame with welded corners; Single piece body with welded rear panel
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- cable entry
- 1 entry
- Material
- Body: sheet steel; Door: sheet steel; Hinge: zamak
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Accessibility for operation
- Front
- Product weight
- 76 kg
- Standards
- IEC 62208
- Product certifications
- DNV; BV; UL
- IK degree of protection
- IK10 conforming to IEC 62262; conforming to UL; conforming to cUL
- IP degree of protection
- IP55 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 133.000 cm
- Package 1 Width
- 125.000 cm
- Package 1 Length
- 49.000 cm
- Package 1 Weight
- 84.000 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 2
- Package 2 Height
- 133.000 cm
- Package 2 Width
- 125.000 cm
- Package 2 Length
- 98.000 cm
- Package 2 Weight
- 168.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1200 mm
- Height
- 1200 mm
- Depth
- 400 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 4900 N
- Max. permitted load of the door(s) according to IEC 62208
- 588 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606485120485
- SAP 1000089976
- Code 8915729
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Control unit MicroLogic 6.0E, ComPacT NS630B to NS3200 fixed manually operated, selective and earth-fault protections C6EFM
Schneider Electric
Push-button flush green with text (ZB5FA336)
Schneider Electric
Schneider Electric Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, marked I ZB5FA331
Schneider Electric

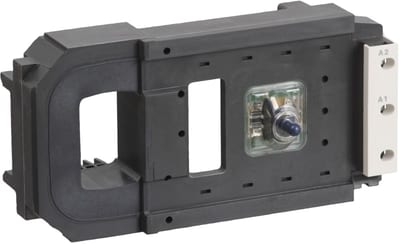

Schneider Electric TeSys F - contactor coil - LX1FL - 415...440V AC 40...400 Hz LX1FL415
Schneider Electric

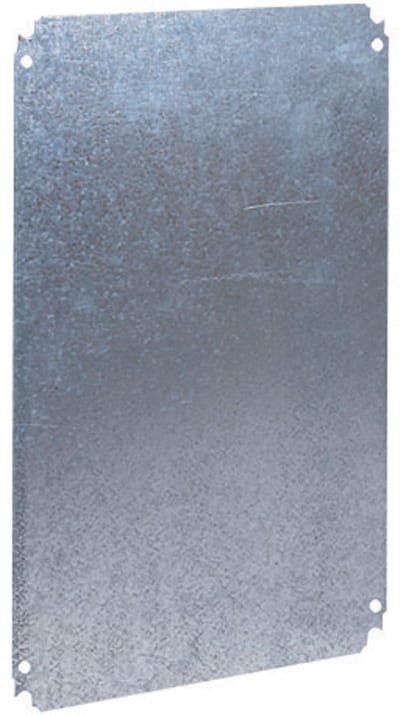

Mounting plate 400X800
NSYMM48
Schneider Electric

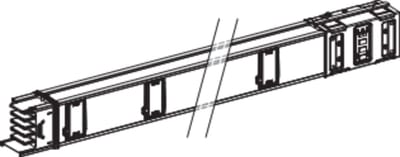

RAIL 500-630A 2M 6 Outlet
KSA630ED4206
Schneider Electric

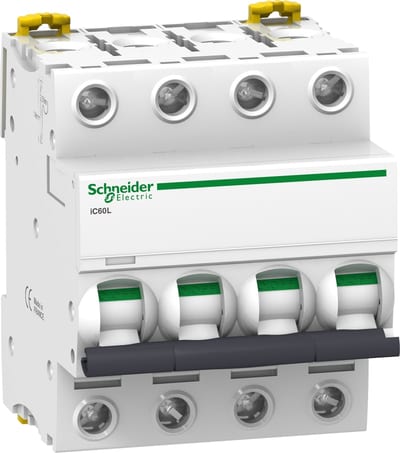

Schneider Electric A9F94403 ACTI9 IC60L Miniature Circuit Breaker 4P 3 A, Curve C
Schneider Electric

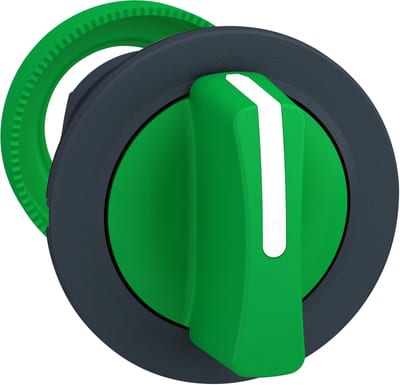

Schneider Electric flush mounted green selector switch head 3 pos return right to center ZB5FD803
