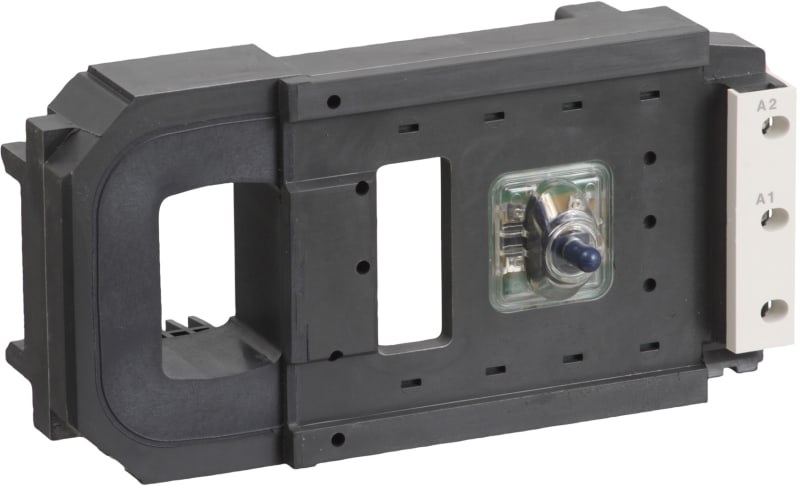

Schneider Electric TeSys F - contactor coil - LX1FL - 415...440V AC 40...400 Hz LX1FL415
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LX1FL415 coil 415V 50HZ LC1F630.
Technical Specifications
- Manufacturer part number (MPN)
- LX1FL415
- EAN / GTIN
- 3389110082487
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 415/480 V
- Frequency
- 50/60 Hz
- Range
- TeSys
- Product or component type
- Contactor coil
- Device short name
- LX1FL
- Range compatibility
- TeSys TeSys F LC1F contactor
- Product compatibility
- LC1F1250; LC1F630
- Control circuit type
- AC at 40...400 Hz
- [Uc] control circuit voltage
- 415...440 V AC 40...400 Hz
- Inductance of closed circuit
- 13 H
- Average resistance
- 96 Ohm inrush at 20 °C; 2960 Ohm holding at 20 °C
- Operating time
- 100...200 ms opening; 40...80 ms closing
- Mechanical durability
- 5 Mcycles
- Maximum operating rate
- 1200 cyc/h 55 °C
- Coil technology
- Without built-in suppressor module
- Control circuit voltage limits
- Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C); Drop-out: 0.25...0.5 Uc 40...400 Hz (at 55 °C)
- Inrush power in VA
- 1650 VA 40...400 Hz cos phi 0.9 (at 20 °C)
- Hold-in power consumption in VA
- 22 VA 40...400 Hz cos phi 0.3 (at 20 °C)
- Heat dissipation
- 20 W at 40...400 Hz
- Ambient air temperature for operation
- -5…55 °C
- Product weight
- 1.5 kg
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 415–440 V
- Rated control supply voltage AC 60 Hz
- 415–440 V
- Voltage type for actuating
- AC
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8504.50
Cross References
- EAN 3389110082487
- SAP 1000017211
- Code 8141862
Product Documentation
