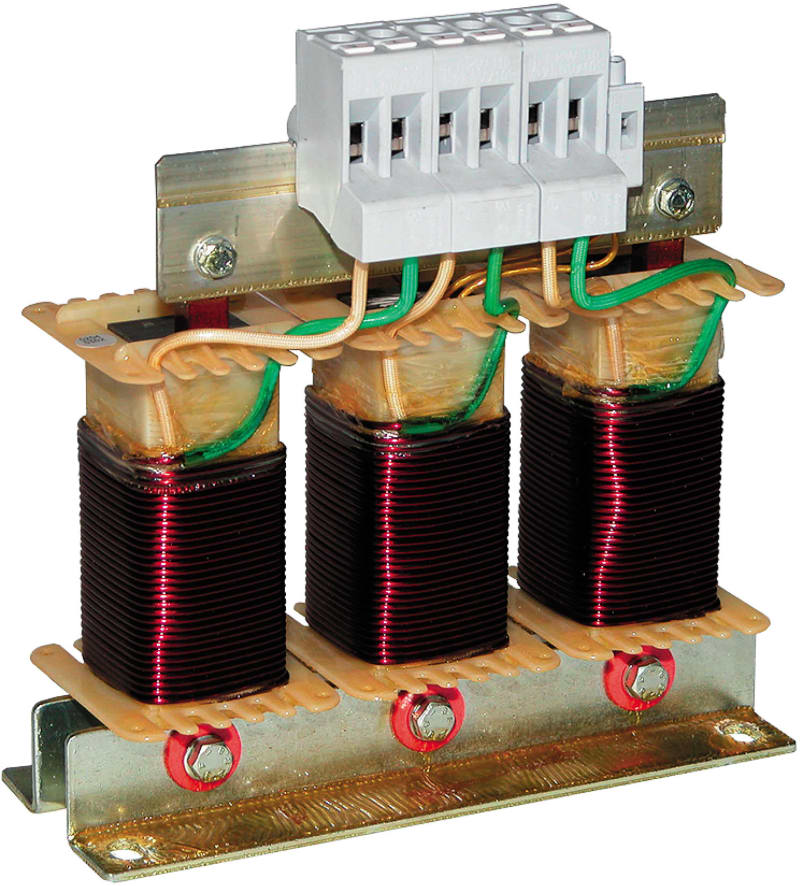

Motordrossel 90A (VW3A5103)
Part numberVW3A5103EAN / GTIN3389118065918HS code8504.50
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A5103 Motordrossel 90A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5103
- EAN / GTIN
- 3389118065918
- Sales unit
- pcs
- Product or component type
- Motor choke
- Range compatibility
- Altivar 212; Altivar 61; Altivar 71; Altivar Process ATV900; Altivar Process ATV600
- Product specific application
- Output filter
- [In] rated current
- 90 A
- Product compatibility
- ATV61H075N4; ATV61HU15N4; ATV61HU22N4; ATV61HU30N4; ATV61HU40N4; ATV61W075N4; ATV61W075N4C; ATV61WU15N4; ATV61WU15N4C; ATV61WU22N4; ATV61WU22N4C; ATV61WU30N4; ATV61WU30N4C; ATV61WU40N4; ATV61WU40N4C; ATV71H075N4; ATV71HU15N4; ATV71HU22N4; ATV71HU30N4; ATV71HU40N4; ATV71P075N4Z; ATV71PU15N4Z; ATV71PU22N4Z; ATV71PU30N4Z; ATV71PU40N4Z; ATV71W075N4; ATV71WU15N4; ATV71WU22N4; ATV71WU30N4; ATV71WU40N4; ATV61HD11N4; ATV61HD11Y; ATV61HD15N4; ATV61HD18N4; ATV61HU22S6X; ATV61HU30M3; ATV61HU30S6X; ATV61HU30Y; ATV61HU40M3; ATV61HU40S6X; ATV61HU40Y; ATV61HU55M3; ATV61HU55N4; ATV61HU55S6X; ATV61HU55Y; ATV61HU75M3; ATV61HU75N4; ATV61HU75S6X; ATV61HU75Y; ATV61WD11N4; ATV61WD11N4C; ATV61WD15N4; ATV61WD15N4C; ATV61WD18N4; ATV61WD18N4C; ATV61WU55N4; ATV61WU55N4C; ATV61WU75N4; ATV61WU75N4C; ATV71HD11N4; ATV71HD11Y; ATV71HD15N4; ATV71HD18N4; ATV71HU15S6X; ATV71HU22S6X; ATV71HU22Y; ATV71HU30M3; ATV71HU30S6X; ATV71HU30Y; ATV71HU40M3; ATV71HU40S6X; ATV71HU40Y; ATV71HU55M3; ATV71HU55N4; ATV71HU55S6X; ATV71HU55Y; ATV71HU75M3; ATV71HU75N4; ATV71HU75S6X; ATV71HU75Y; ATV71PD11N4Z; ATV71PU55N4Z; ATV71PU75N4Z; ATV71WD11N4; ATV71WD15N4; ATV71WD18N4; ATV71WU55N4; ATV71WU75N4; ATV212H075M3X; ATV212H075N4; ATV212HD11M3X; ATV212HD11N4; ATV212HU15M3X; ATV212HU15N4; ATV212HU22M3X; ATV212HU22N4; ATV212HU30M3X; ATV212HU30N4; ATV212HU40M3X; ATV212HU40N4; ATV212HU55M3X; ATV212HU55N4; ATV212HU75M3X; ATV212HU75N4; ATV212W075N4; ATV212W075N4C; ATV212WD11N4; ATV212WD11N4C; ATV212WU15N4; ATV212WU15N4C; ATV212WU22N4; ATV212WU22N4C; ATV212WU30N4; ATV212WU30N4C; ATV212WU40N4; ATV212WU40N4C; ATV212WU55N4; ATV212WU55N4C; ATV212WU75N4; ATV212WU75N4C; ATV61HD11M3X; ATV61HD15M3X; ATV61HD15Y; ATV61HD18M3X; ATV61HD18Y; ATV61HD22M3X; ATV61HD22N4; ATV61HD22Y; ATV61HD30N4; ATV61HD30Y; ATV61HD37N4; ATV61WD22N4; ATV61WD22N4C; ATV61WD30N4; ATV61WD30N4C; ATV61WD37N4; ATV61WD37N4C; ATV71HD11M3X; ATV71HD15M3X; ATV71HD15Y; ATV71HD18M3X; ATV71HD18Y; ATV71HD22M3X; ATV71HD22N4; ATV71HD22Y; ATV71HD30Y; ATV71HD37N4; ATV71WD30N4; ATV71WD37N4; ATV630 variable speed drive - 2.2 kW, 500...690 V three phase; ATV630 variable speed drive - 3 kW, 500...690 V three phase; ATV630 variable speed drive - 4 kW, 500...690 V three phase; ATV630 variable speed drive - 5.5 kW, 500...690 V three phase; ATV630 variable speed drive - 7.5 kW, 500...690 V three phase; ATV630 variable speed drive - 11 kW, 500...690 V three phase; ATV930 variable speed drive - 2.2 kW, 500...690 V three phase; ATV930 variable speed drive - 3 kW, 500...690 V three phase; ATV930 variable speed drive - 4 kW, 500...690 V three phase; ATV930 variable speed drive - 5.5 kW, 500...690 V three phase; ATV930 variable speed drive - 7.5 kW, 500...690 V three phase; ATV930 variable speed drive - 11 kW, 500...690 V three phase; ATV630 variable speed drive, 3 hp, 600 V three phase; ATV630 variable speed drive, 5 hp, 600 V three phase; ATV630 variable speed drive, 7.5 hp, 600 V three phase; ATV630 variable speed drive, 10 hp, 600 V three phase; ATV630 variable speed drive, 15 hp, 600 V three phase; ATV930 variable speed drive, 3 hp, 600 V three phase; ATV930 variable speed drive, 5 hp, 600 V three phase; ATV930 variable speed drive, 7.5 hp, 600 V three phase; ATV930 variable speed drive, 10 hp, 600 V three phase; ATV930 variable speed drive, 15 hp, 600 V three phase
- nedded quantity
- 1
- Electrical connection
- Bare wires diameter: 9 mm
- Maximum motor cable length
- 300 m shielded cable P motor 2.2…7.5 kW at 200...240 V 1; 300 m unshielded cable P motor 2.2…7.5 kW at 200...240 V 1; 150 m shielded cable P motor 11…22 kW at 200...240 V 1; 300 m unshielded cable P motor 11…22 kW at 200...240 V 1; 160 m shielded cable P motor 0.75…18.5 kW at 380...480 V 1; 200 m unshielded cable P motor 0.75…18.5 kW at 380...480 V 1; 140 m shielded cable P motor 22…30 kW at 380...480 V 1; 170 m unshielded cable P motor 22…30 kW at 380...480 V 1; 75 m shielded cable P motor 2.2…7.5 kW at 500...600 V 1; 150 m unshielded cable P motor 2.2…7.5 kW at 500...600 V 1; 65 m shielded cable P motor 2.2…30 kW at 500...690 V 1; 100 m unshielded cable P motor 2.2…30 kW at 500...690 V 1; 150 m shielded cable P motor 2.2…7.5 kW at 500...690 V 2; 250 m unshielded cable P motor 2.2…7.5 kW at 500...690 V 2; 100 m shielded cable P motor 2.2…30 kW at 500...690 V 2; 150 m unshielded cable P motor 2.2…30 kW at 500...690 V 2; 97 m shielded cable P motor 37 kW at 380...480 V 1; 166 m unshielded cable P motor 37 kW at 380...480 V 1
- dv/dt
- 500 V/µs max at 400 V; 750 V/µs max at 500 V; 1000 V/µs max at 690 V
- Thermal losses
- 350 W
- maximum drive output frequency
- 100 Hz
- Protection type
- Thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A
- Ambient air temperature for operation
- -10…50 °C
- Product weight
- 10 kg
- IP degree of protection
- IP20 (with kits VW3A9612,613); IP00
- Ambient air temperature for storage
- -25…70 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 28.000 cm
- Package 1 Width
- 26.500 cm
- Package 1 Length
- 28.000 cm
- Package 1 Weight
- 9.555 kg
- Unit Type of Package 2
- S06
- Number of Units in Package 2
- 8
- Package 2 Height
- 75.000 cm
- Package 2 Width
- 60.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 90.816 kg
- Country of origin
- HU
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8504.50
Cross References
- EAN 3389118065918
- SAP 1000075087
- Code 8800449
