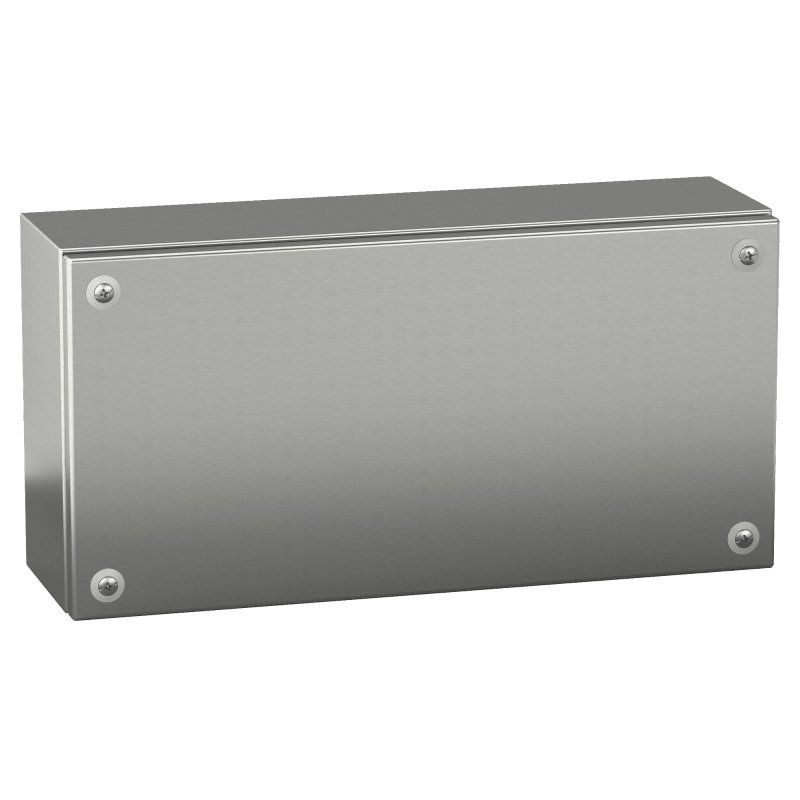

Schneider Electric Stainless steel wall mounted industrial box, PanelSeT SBX, 200X400X120 mm, IP66 NSYSBX204012
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSBX204012 — Stainless steel wall mounted industrial box, PanelSeT SBX, 200x400x120 mm, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSBX204012
- EAN / GTIN
- 3606481715210
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT SBX
- Device application
- Multi-purpose
- Category
- Industrial box
- Device short name
- SBX
- enclosure type
- Flat face box
- Enclosure nominal height
- 200 mm
- Enclosure nominal width
- 400 mm
- Enclosure nominal depth
- 120 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 4 cover screw; 1 cover; 1 body
- Body type
- Single piece body folded and welded
- Type of front cover
- Plain door
- Cover fixing
- Half turn metal screw
- Lock type
- Captive screw PZ2 outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Stainless steel 304L
- Surface finish
- Scotch-Brite® brushed
- Standards
- IEC 62208; UL; CUL
- Product certifications
- BV; BVM; UL
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Ambient air temperature for storage
- -35…60 °C
- Operating temperature
- -35…80 °C
- Product weight
- 3.2 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14.500 cm
- Package 1 Width
- 21.000 cm
- Package 1 Length
- 41.000 cm
- Package 1 Weight
- 3.316 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 70
- Package 2 Height
- 124.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 242.820 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Shape
- Square
- RAL-number
- 7035
- Connection type
- Screwed terminal
- Length
- 400 mm
- Width
- 400 mm
- Depth
- 120 mm
- Material plate thickness cabinet
- 1.2 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Halogen free
- Yes
- Colour
- Grey
- Degree of protection (IP)
- IP66
- With cover
- Yes
- Cover attachment
- Screwed
- With transparent cover
- No
- Sealable
- Yes
- Circuit integrity
- None
- Impact strength
- IK10
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606481715210
- SAP 1200476516
- Code 82548426
Product Documentation
More from Schneider Electric
Schneider Electric

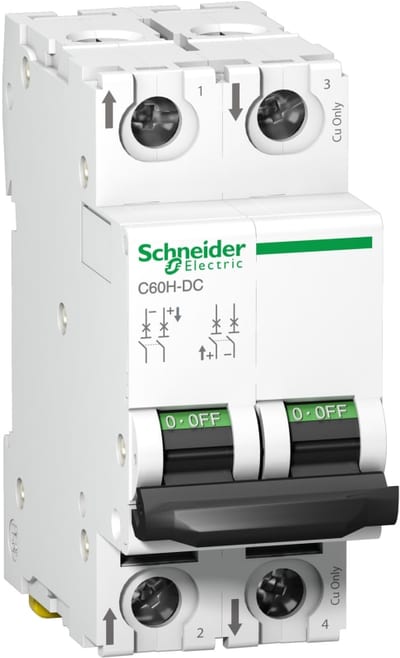

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C60H-DC, 2P, 6A, C curve, 6KA (IEC/EN 60947-2) A9N61526
Schneider Electric

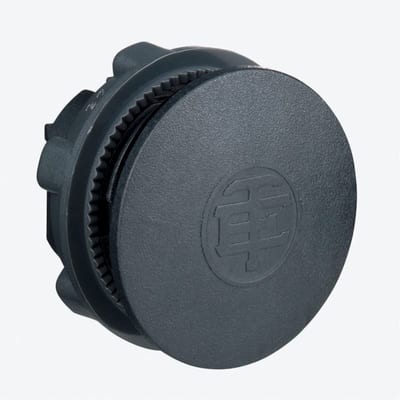

Schneider Electric ZB2SZ3 black blanking plug for control station or pendant control station
Schneider Electric

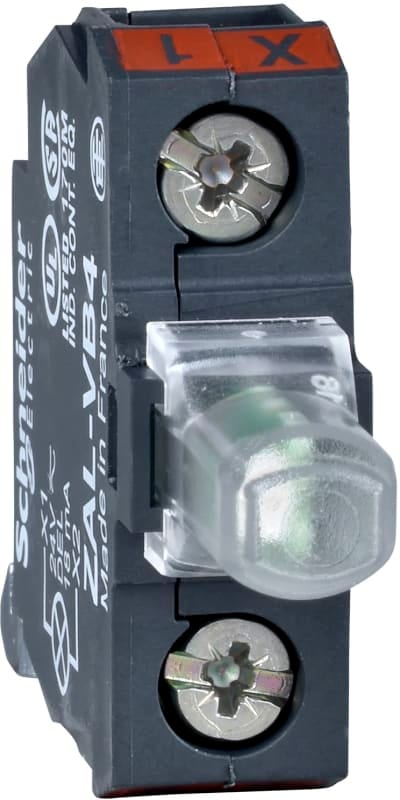

Protected LED, White 230 VAC
ZALVM1
Schneider Electric

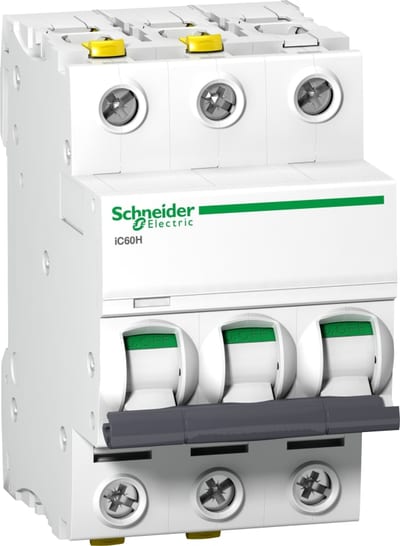

Schneider Electric A9F07302 ACTI9 IC60H Miniature Circuit Breaker 3P 2 A, Curve C
Schneider Electric
Endeksel BUSBAR.2P pk à 10 pcs
A9XPE210
Schneider Electric

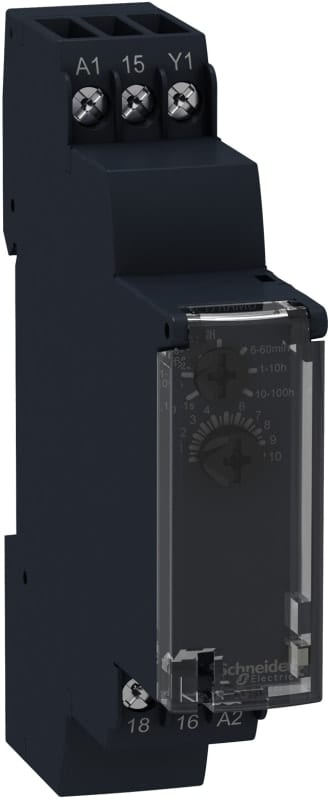

Schneider Electric Modular timing relay, 0.7 A, 1 CO, 1 S..100 h, on delay, solid state output, 24..240 V AC/DC RE17LAMW
Schneider Electric

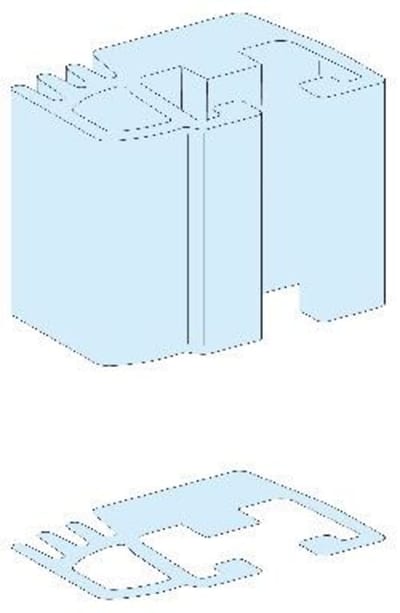

Busbar-vertical-Linergy-LGYE 1250A (LVS04505)
Schneider Electric

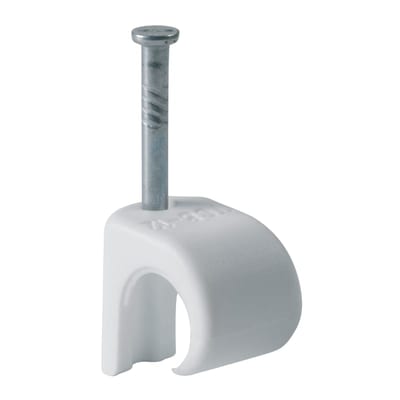

TC nail clip 7-10 white 20 pcs
