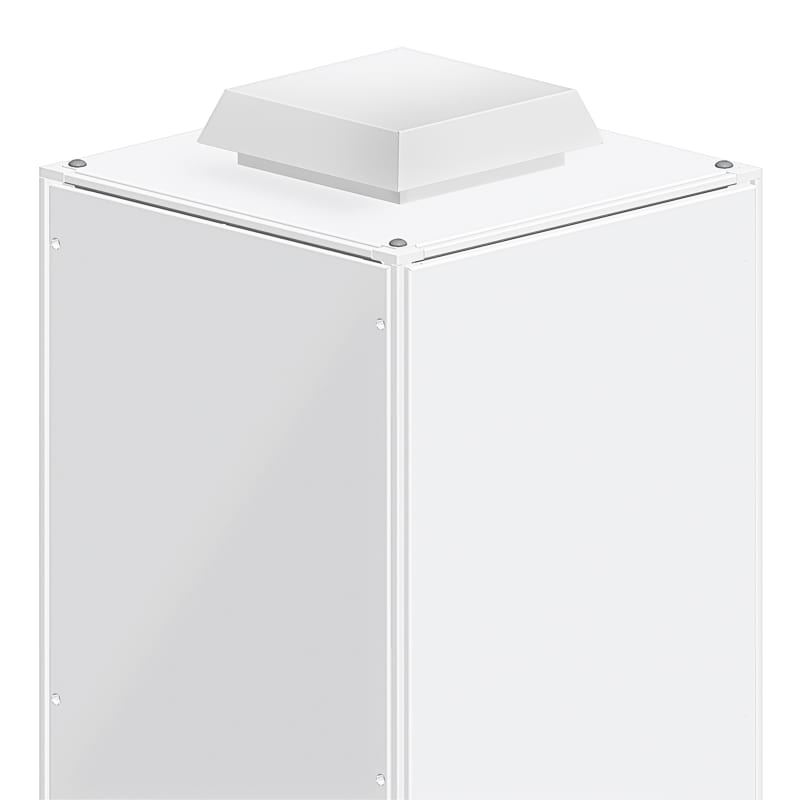

Schneider Electric Roof outlet grille - cut-out 228X228MM - ext. dim 90X340X340MM - IP54, white (RAL 9003) NSYCAC228RMB
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCAC228RMB Takhatt for PrismaSeT cutout 228x228 - dimensions 90x340x340mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCAC228RMB
- EAN / GTIN
- 3606485432014
- Sales unit
- pcs
- Dimensions
- 228×228 mm
- Range
- ClimaSys
- Product
- ClimaSys CA
- Range compatibility
- Prisma Prisma P
- Product or component type
- Top hood
- Accessory / separate part category
- Thermal management accessory
- Accessory / separate part destination
- ClimaSys ventilation system
- Mounting location
- On top of enclosure
- fixing mode
- By fixing element
- Device composition
- 1 hood; 1 fixing elements
- Material
- Steel
- Colour
- Hood: signal white (RAL 9003)
- Surface finish
- Epoxy-polyester powder
- Cut-out dimensions
- 228 x 228 mm
- Product weight
- 4.6 kg
- Height
- External: 340 mm
- Width
- External: 340 mm
- Depth
- External : 90 mm
- IP degree of protection
- IP54
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 13.000 cm
- Package 1 Width
- 35.000 cm
- Package 1 Length
- 35.000 cm
- Package 1 Weight
- 4.474 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 60
- Package 2 Height
- 101.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 281.000 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- Suitable for enclosure building width
- 400 mm
- Suitable for enclosure building depth
- 400 mm
- For max. number of fans
- 1
- With built-in filter
- No
- Degree of protection (IP)
- IP54
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606485432014
- SAP 1200722176
- Code 83838430
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric OptiLine 45 - wall/ceiling frame - 140 x 55 mm - PC/ABS - polar white ISM10305P
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400N, 50KA/415VAC, 3 poles, MicroLogic 2.3M trip unit 320A C40N32M320
Schneider Electric
Schneider Electric TeSys K control relay - 2 NO + 2 NC - <= 690 V - 24 V AC coil CA2KN22B7
Schneider Electric
BOX 50A Neozed E18 (KNB50SN4)
Schneider Electric
Schneider Electric Power plug-in relay, 15 A, 4 CO, with LED, 230 V AC RPM42P7
Schneider Electric

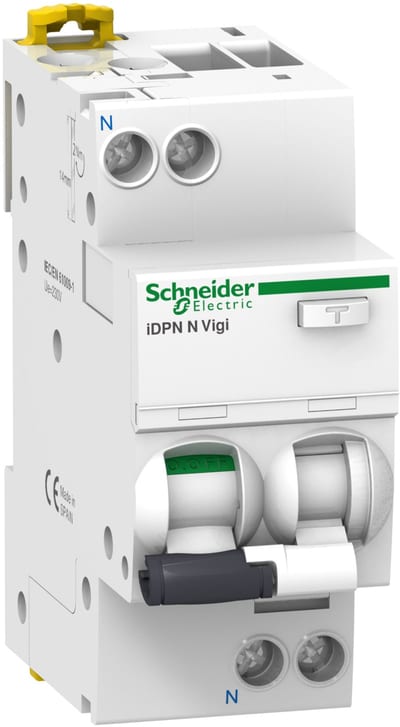

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 iDPN N Vigi, 1P+N, 6A, C curve, 6000A, A type, 30MA A9D32606
Schneider Electric

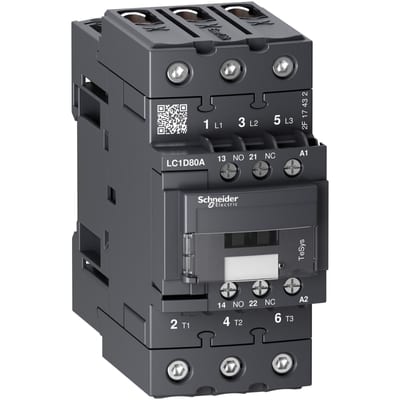

Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=440V, 66A, 220V AC 50/60Hz coil, EverLink+springs LC1D80AM7
