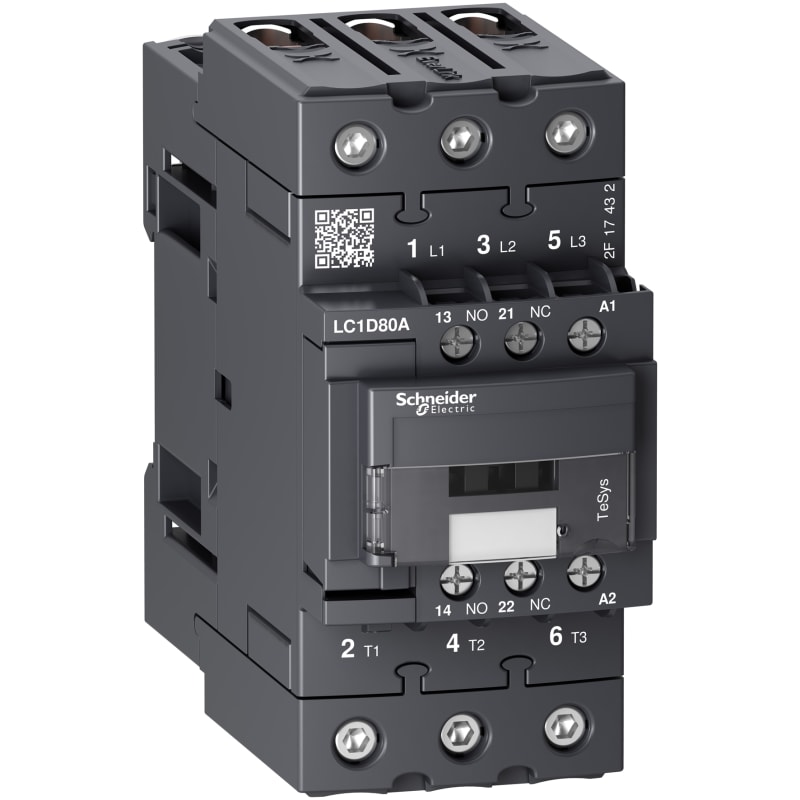

Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=440V, 66A, 220V AC 50/60Hz coil, EverLink+springs LC1D80AM7

Schneider Electric LC1D80AM7 — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. TeSys D contactor-3P-AC3- = 440V 80A - 220V AC coil.

Manufacturer part number (MPN)

LC1D80AM7 EAN / GTIN: 3606481312167 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Voltage: 220 V AC Power: 37 kW Rated current: 80 A Number of poles: 3P Range: TeSys; TeSys Deca Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Motor control; Resistive load Utilisation category: AC-3; AC-3e; AC-1; AC-4 Poles description: 3P [Ue] rated operational voltage: Power circuit: 690 V AC 25...400 Hz; Power circuit: 300 V DC [Ie] rated operational current: 80 A (at <60 °C) at <= 440 V AC-1 for power circuit; 66 A (at <60 °C) at <= 440 V AC-3 for power circuit; 66 A (at <60 °C) at <= 440 V AC-3e for power circuit [Uc] control circuit voltage: 220 V AC 50/60 Hz Motor power kW: 22 kW at 220/230 V AC 50/60 Hz (AC-3); 37 kW at 380/400 V AC 50/60 Hz (AC-3); 37 kW at 415 V AC 50/60 Hz (AC-3); 37 kW at 440 V AC 50/60 Hz (AC-3); 37 kW at 500 V AC 50/60 Hz (AC-3); 37 kW at 660/690 V AC 50/60 Hz (AC-3); 22 kW at 220/230 V AC 50/60 Hz (AC-3e); 37 kW at 380/400 V AC 50/60 Hz (AC-3e); 37 kW at 415 V AC 50/60 Hz (AC-3e); 37 kW at 440 V AC 50/60 Hz (AC-3e); 37 kW at 500 V AC 50/60 Hz (AC-3e); 37 kW at 660/690 V AC 50/60 Hz (AC-3e) Motor power hp: 5 hp at 115 V AC 60 Hz for 1 phase motors; 10 hp at 230/240 V AC 60 Hz for 1 phase motors; 20 hp at 200/208 V AC 60 Hz for 3 phases motors; 20 hp at 230/240 V AC 60 Hz for 3 phases motors; 40 hp at 460/480 V AC 60 Hz for 3 phases motors; 50 hp at 575/600 V AC 60 Hz for 3 phases motors Compatibility code: LC1D Pole contact composition: 3 NO Protective cover: With [Ith] conventional free air thermal current: 10 A (at 60 °C) for signalling circuit; 80 A (at 60 °C) for power circuit Irms rated making capacity: 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 1000 A at 440 V AC for power circuit conforming to IEC 60947 Rated breaking capacity: 1000 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current: 640 A 40 °C - 10 s for power circuit; 900 A 40 °C - 1 s for power circuit; 110 A 40 °C - 10 min for power circuit; 260 A 40 °C - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit Associated fuse rating: 10 A gG for signalling circuit conforming to IEC 60947-5-1; 125 A gG at <= 690 V coordination type 1 for power circuit; 125 A gG at <= 690 V coordination type 2 for power circuit Average impedance: 1.5 mOhm - Ith 80 A 50 Hz for power circuit Power dissipation per pole: 9.6 W AC-1; 6.3 W AC-3; 6.3 W AC-3e [Ui] rated insulation voltage: Signalling circuit: 690 V conforming to IEC 60947-1; Power circuit: 690 V conforming to IEC 60947-4-1 Overvoltage category: III Pollution degree: 3 [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 6 Mcycles Electrical durability: 0.7 Mcycles 80 A AC-1 at Ue <= 440 V; 1 Mcycles 66 A AC-3 at Ue <= 440 V; 1 Mcycles 66 A AC-3e at Ue <= 440 V Control circuit type: AC at 50/60 Hz standard Coil technology: Without built-in suppressor module Control circuit voltage limits: 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz; 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz; 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz; 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz Inrush power in VA: 140 VA 60 Hz cos phi 0.75 (at 20 °C); 160 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 13 VA 60 Hz cos phi 0.3 (at 20 °C); 15 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 4…5 W at 50/60 Hz Operating time: 4...19 ms opening; 12...26 ms closing Maximum operating rate: 3600 cyc/h at 60 °C Connections - terminals: Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible with cable end; Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid; Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: solid; Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: solid; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible; Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible; Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible Tightening torque: Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm; Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2; Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 Auxiliary contact composition: 1 NO + 1 NC Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1; type mirror contact 1 NC conforming to IEC 60947-4-1 Signalling circuit frequency: 25...400 Hz minimum switching voltage: 17 V for signalling circuit minimum switching current: 5 mA for signalling circuit Insulation resistance: > 10 MOhm for signalling circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact Mounting support: Rail; Plate Standards: EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; CSA C22.2 No 14; UL 60947-4-1; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ; IEC 60335-1:Clause 30.2 Product certifications: CCC; CSA; EAC; UL; KC; DNV-GL; LROS (Lloyds register of shipping) IP degree of protection: IP20 front face conforming to IEC 60529 Protective treatment: TH conforming to IEC 60068-2-30 Climatic withstand: conforming to IACS E10 exposure to damp heat; conforming to IEC 60947-1 Annex Q category D exposure to damp heat Permissible ambient air temperature around the device: -40…60 °C; 60…70 °C with derating Operating altitude: 0...3000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Mechanical robustness: Vibrations contactor open (2 Gn, 5...300 Hz) ; Vibrations contactor closed (4 Gn, 5...300 Hz) ; Shocks contactor closed (15 Gn for 11 ms) ; Shocks contactor open (10 Gn for 11 ms) Height: 122 mm Width: 55 mm Depth: 120 mm Product weight: 0.86 kg Warranty (in months): 18

HS Code

8536.90

• EAN 3606481312167
• SAP 1200315558
• Code 82295429
