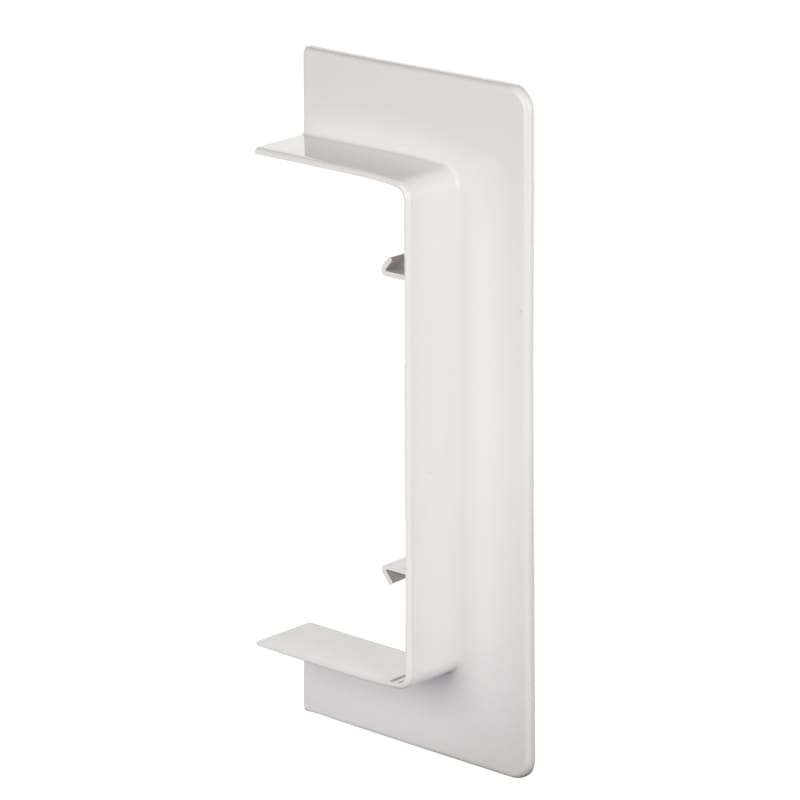

Schneider Electric OptiLine 45 - wall/ceiling frame - 140 x 55 mm - PC/ABS - polar white ISM10305P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM10305P OptiLine 45 wall frame, PC/ABS, white, halogen-free, for 140x55 mm trunking - 1 pc.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10305P
- EAN / GTIN
- 3606480681721
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range of product
- OptiLine 45
- Cabling installation system
- Trunking
- product type
- Wall/ceiling frame
- colour
- Polar white (RAL 9003)
- quantity package 1 / unit
- Set of 1
- Trunking material
- Plastic
- Trunking dimension
- 140 x 55 mm
- fixing mode
- Snap-fitted
- product material
- PC/ABS
- Length
- 22 mm
- Height
- 195 mm
- Width
- 82 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-1:2013/A1; EN 50085-2-1:2006; EN 50085-2-1:2011/A1
- operating temperature
- -25…60 °C
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Warranty (in months)
- 18
- Material quality
- Polycarbonate (PC)/ABS
- Material
- Plastic
- RAL-number
- 9003
- Halogen free
- Yes
- Self-extinguishing
- No
- Degree of protection (IP)
- IP40
- Impact strength
- IK07
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480681721
- SAP 1200536242
- Code 82696381
