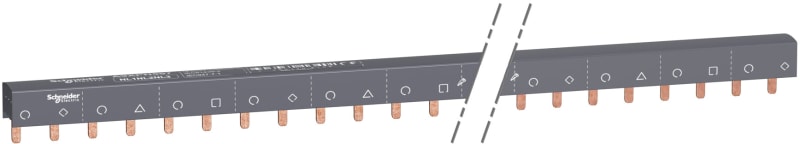

Schneider Electric ACTI9 - comb busbar - 3L+N balanced - 18 mm pitch - 57 modules - 100 A A9XPH557
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9XPH557 Busbar 4pol (N-L1, N-L2, N-L3), length 57 modules.
Technical Specifications
- Manufacturer part number (MPN)
- A9XPH557
- EAN / GTIN
- 3606480485190
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Number of poles
- 4
- Range
- Acti9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 3L + N
- Length in 18 mm modules
- 57
- Standards
- EN/IEC 61439-1
- Number of ways
- 28 ways N + L
- Distribution type
- N L1 N L2 N L3
- Poles configuration for 1 way
- 1 x 1P + N; 1 x 2P
- Connection pitch
- 18 mm
- Connector type
- Tooth
- Distance between way
- 36 mm
- Marking
- N L1 N L2 N L3
- Insulation
- Insulated
- Device presentation
- Cuttable
- [Ie] rated operational current
- 100 A at 40 °C
- [Ue] rated operational voltage
- 415 V AC
- [Ui] rated insulation voltage
- 500 V AC conforming to IEC 61439-2
- Mounting location
- Top or bottom on tunnel type terminals; Top or bottom on double terminal
- 9 mm pitches
- 114
- Width
- 1000 mm
- Colour
- White (RAL 9003)
- Range compatibility
- Acti9 iC60; Acti9 iK60; Acti9 iID; Acti9 iID K; Acti9 iSW; Acti9 iSW-NA; Multi9 C60
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3 conforming to IEC 60947-7-1
- IP degree of protection
- IP20 with end-pieces and tooth covers
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 270
- Country of origin
- DE
- Warranty (in months)
- 18
- Number of phases
- 3
- Cross section
- 16 mm²
- Rated permanent current Iu
- 100 A
- Length
- 1000 mm
- Width in number of modular spacings
- 57
- Type of electric connection
- Pin
- Suitable for number of devices
- 28
- Max. rated operation voltage Ue
- 415 V
- Module width
- 18 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480485190
- SAP 1000326926
- Code 8844587
Product Documentation
