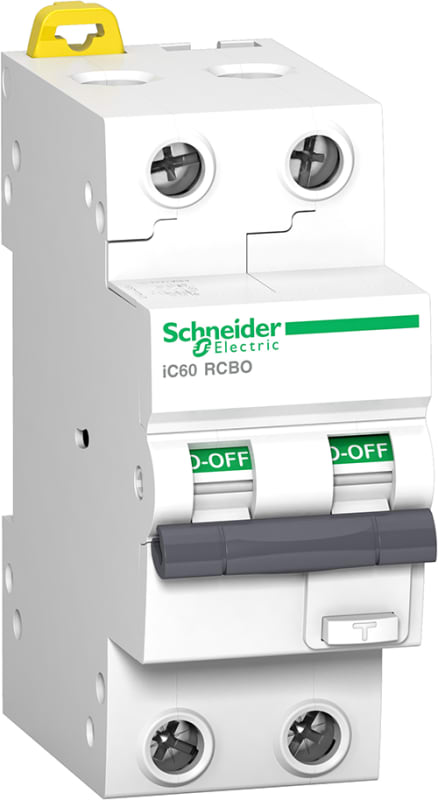

IC60 RCBO 2P 15A B30MA JFA NEK
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9D34215 — Acti9 iC60 RCBO. Residual current circuit breaker with overcurrent per IEC 61009, DIN-rail modular. Residual current circuit breaker with overcurrent Acti9 IC60 RCBO 2P 16A 30MA B 10kA A For residential use (I2=1,3).
Technical Specifications
- Manufacturer part number (MPN)
- A9D34215
- EAN / GTIN
- 3606481198303
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Number of poles
- 2P
- Power loss
- 2 W
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 15 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- No
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 3
- Ambient temperature during operating
- -25–40 °C
- Width in number of modular spacings
- 1
- Built-in depth
- 45 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–35 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Portugal
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481198303
- SAP 1200022232
- Code 81406498
