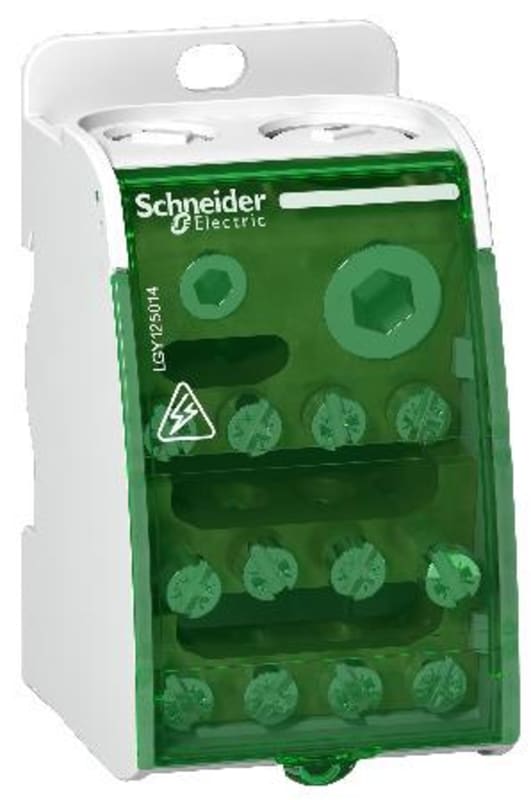

Schneider Electric Linergy DS - screw distribution block 1P - 250A - 14 holes LGY125014
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LGY125014 Distribution block 1P 250A 14 hole.
Technical Specifications
- Manufacturer part number (MPN)
- LGY125014
- EAN / GTIN
- 3606480542176
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Rated current
- 250 A
- Number of poles
- 1P
- Range
- Linergy
- Product name
- Linergy DS
- Product or component type
- Distribution block
- Mounting support
- DIN rail
- Range compatibility
- Prisma G; Prisma P; Prisma POLAR WHITE; Spacial; TeSys
- Product compatibility
- Spacial enclosures
- Poles description
- 1P
- Distribution block outgoers
- 14 holes
- [Ue] rated operational voltage
- 230 V AC Ph/N; 440 V AC Ph/Ph
- [Ui] rated insulation voltage
- 500 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 250 A at 40 °C
- [Icw] rated short-time withstand current
- 14.4 kA for 1 s
- [Ipk] rated peak withstand current
- 60 kA
- Connections - terminals
- Distribution: screw terminal 4 cable(s) 1.5…16 mm² rigid; Distribution: screw terminal 4 cable(s) 1.5…10 mm² flexible with cable end; Distribution: screw terminal 8 cable(s) 2.5…25 mm² rigid; Distribution: screw terminal 8 cable(s) 1.5…16 mm² flexible with cable end; Supply: screw terminal 1 cable(s) 35…120 mm² rigid; Supply: screw terminal 1 cable(s) 23…95 mm² flexible with cable end; Distribution: screw terminal 1 cable(s) 1.5…50 mm² rigid; Distribution: screw terminal 1 cable(s) 1.5…35 mm² flexible with cable end
- Tightening torque
- Distribution: 2 N.m flat screwdriver 7.5 mm; Distribution: 2 N.m PZ2 screwdriver 7.5 mm; Supply: 10 N.m flat screwdriver 15.3 mm; Supply: 10 N.m PZ2 screwdriver 15.3 mm; Distribution: 4 N.m flat screwdriver 10 mm; Distribution: 4 N.m PZ2 screwdriver 10 mm; Distribution: 2 N.m flat screwdriver 6 mm; Distribution: 2 N.m PZ2 screwdriver 6 mm
- 9 mm pitches
- 5
- Height
- 85 mm
- Width
- 45 mm
- Depth
- 50.5 mm
- Product weight
- 0.252 kg
- Colour
- White (RAL 9003)
- Pollution degree
- 3
- Overvoltage category
- III
- Dielectric strength
- 2500 V
- Standards
- EN/IEC 60947-7-1; EN/IEC 61439-1
- Ambient air temperature for operation
- -25…55 °C
- Country of origin
- TN
- Warranty (in months)
- 18
- Core cross section
- 120 mm²
- With seal head
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480542176
- SAP 1000640289
- Code 8412390
