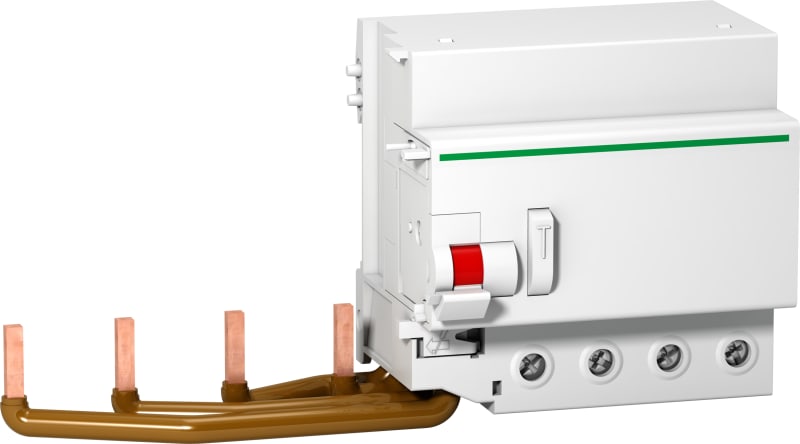

Schneider Electric Add-on residual current device, ACTI9 Vigi C120, 4P, 125A, A type, instantaneous, 500MA, 230...415VAC A9N18580

Schneider Electric A9N18580 Residual current module Vigi C120 4P 125A 500mA A.

Manufacturer part number (MPN)

A9N18580

EAN / GTIN

3606480376436

Sales unit

pcs

Package quantity

8 pcs

Rated current

125 A

Number of poles

4P

Range

Acti9

Product name

Acti9 Vigi C120

Product or component type

Add-on residual current device

Device short name

Vigi C120

Poles description

4P

[In] rated current

125 A

Network type

AC

Earth-leakage sensitivity

500 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Standards

EN 61009; IEC/EN 61009-2-1

Device location in system

Outgoer; Group incomer

Network frequency

50/60 Hz

[Ue] rated operational voltage

230...415 V AC 50/60 Hz

Residual current tripping technology

Voltage independent

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

mounting mode

Clip-on

Mounting support

35 mm symmetrical DIN rail

Electrical connection to mcb

By screws

9 mm pitches

10

Height

95 mm

Width

198 mm

Depth

73 mm

Product weight

0.58 kg

Colour

White

Mechanical durability

20000 cycles

Connections - terminals

Tunnel type terminals 1…35 mm² flexible; Tunnel type terminals 1…50 mm² rigid

Wire stripping length

15 mm

Tightening torque

3.5 N.m

IP degree of protection

IP20

Pollution degree

3 conforming to IEC 60947-2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…60 °C

Warranty (in months)

18

Power loss

3.6 W

Nominal voltage

230–415 V

Nominal current

125 A

Rated fault current adjustable

No

Rated fault current

0.5 A

Delay adjustable

No

Leakage current type

A

Surge current capacity

0.25 kA

Frequency

50/60 Hz

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

6 kV

Connectable conductor cross section solid-core

1–50 mm²

Connectable conductor cross section multi-wired

1–35 mm²

Anti-nuisance tripping version

No

With interlocking device

No

Degree of protection (IP)

IP20

Ambient temperature during operating

25–60 °C

Country of origin

France

HS Code

8536.30
