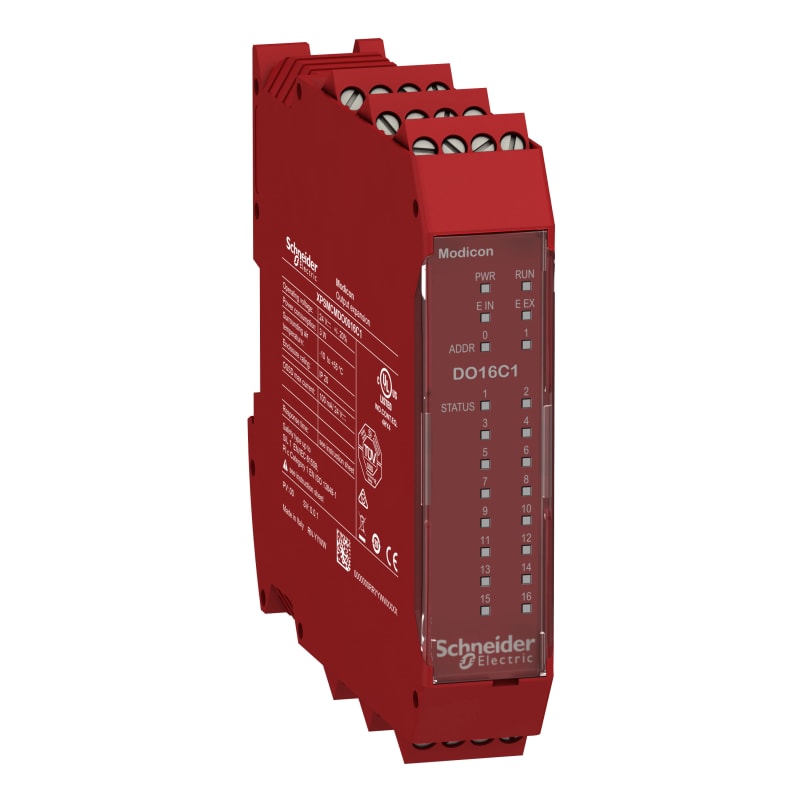

Schneider Electric 16 Digital Output PL c, SIL 1 Expansion Module, Screw Terminals

Schneider Electric XPSMCMDO0016C1 safety expansion module with 16 digital outputs, rated PL c and SIL 1, with screw terminals.

Manufacturer part number (MPN)

XPSMCMDO0016C1

EAN / GTIN

3606481987143

Sales unit

pcs

Range of product

Preventa Safety automation

Product or component type

Safe output expansion module

Device short name

XPSMCM

Electrical connection

Screw terminal

[Us] rated supply voltage

24 V - 20...20 % DC

Output type

16 configurable for diagnostic connection

Discrete input type

Isolated

Discrete output type

DC

Function of module

Monitoring safety actuators for discrete output

Power consumption in W

3 W

Power dissipation in W

3 W

Integrated connection type

Backplane expansion bus

Number of terminal blocks

6

Connections - terminals

2 captive screw clamp terminals, removable terminal block

load type

Resistive load

Group of channels

16 single channel

Safety level

Can reach category 1 conforming to ISO 13849-1; Can reach PL = c conforming to ISO 13849-1; Can reach SIL 1 conforming to IEC 61508; SILCL 1 conforming to IEC 62061

Quality labels

CE

Discrete input voltage

24 V DC

Discrete output voltage

24 V DC

Discrete output current

100 mA

Output load

60 Ohm

Local signalling

1 LED green with PWR marking for power ON; 1 LED green with RUN marking for RUN (status); 1 LED red with E IN marking for internal error; 1 LED red with E EX marking for external error; 2 LEDs orange with ADDR marking for node address; 16 LEDs green/red with OUT marking for output status

Cable cross section

0.2…1.5 mm² - 24 AWG...16 AWG flexible cablewithout cable end; 0.2…2.5 mm² - 24 AWG...14 AWG flexible cablewith cable end, without bezel; 0.25…1 mm² - 23 AWG...18 AWG flexible cablewith cable end, with bezel; 0.25…2.5 mm² - 23 AWG...14 AWG flexible cablewith cable end, without bezel; 0.25…2.5 mm² - 23 AWG...14 AWG flexible cablewith cable end, with double bezel; 0.5…1.5 mm² - 20 AWG...16 AWG flexible cablewithout cable end; 0.2…1 mm² - 24 AWG...18 AWG solid cable; 0.2…2.5 mm² - 24 AWG...14 AWG solid cable

Mounting support

Omega 35 mm DIN rail conforming to EN 50022

Depth

22.5 mm

Height

99 mm

Width

114.5 mm

Product weight

0.25 kg

Standards

IEC 61800-5-1; ISO 13849-1; IEC 61508; IEC 62061

Product certifications

TÜV; RCM; cULus

IP degree of protection

IP20 (enclosure)

Ambient air temperature for operation

-10…55 °C

Ambient air temperature for storage

-20…85 °C

Relative humidity

10…95 %

Pollution degree

2

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 61800-5-1

Safety reliability data

DC > 60 %; MTTFd = 772 years high; PFHd = 6.61E-9 1/h

Insulation

250 V AC between power supply and housing conforming to IEC 61800-5-1

Overvoltage category

II

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3

Vibration resistance

+/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1

Shock resistance

10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to IEC 61496-1

service life

20 year(s)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.5 cm

Package 1 Width

12.8 cm

Package 1 Length

16.2 cm

Package 1 Weight

244.0 g

Unit Type of Package 2

S01

Number of Units in Package 2

6

Package 2 Height

15.0 cm

Package 2 Width

15.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

1.72 kg

Country of origin

IT

Warranty (in months)

18

Operating voltage DC

24 V

Power consumption

1.1 W

Supply voltage DC

24 V

Voltage type (operating voltage)

DC

Model

Expansion device

Suitable for monitoring of position switches

Yes

Suitable for monitoring of emergency-stop circuits

Yes

Suitable for monitoring of valves

No

Suitable for monitoring of tactile sensors

Yes

Suitable for monitoring of magnetic switches

Yes

Suitable for monitoring of proximity switches

Yes

Type of electric connection

Screw connection

Suitable for rail mounting

Yes

Rated control supply voltage DC

24 V

Voltage type for actuating

DC

With detachable clamps

Yes

With start input

Yes

With muting function

Yes

With feedback circuit

Yes

Number of outputs, safety related, undelayed, semiconductors

16

Number of outputs, safety related, delayed, semiconductors

16

Type of safety according to IEC 61496-1

4

Stop category according to IEC 60204

0 + 1

Performance level according to EN ISO 13849-1

Level c

SIL according to IEC 61508

1

With approval for BG BIA

No

With approval according to UL

Yes

HS Code

8536.90

• EAN 3606481987143
• SAP 1200722321
• Code 83838509
