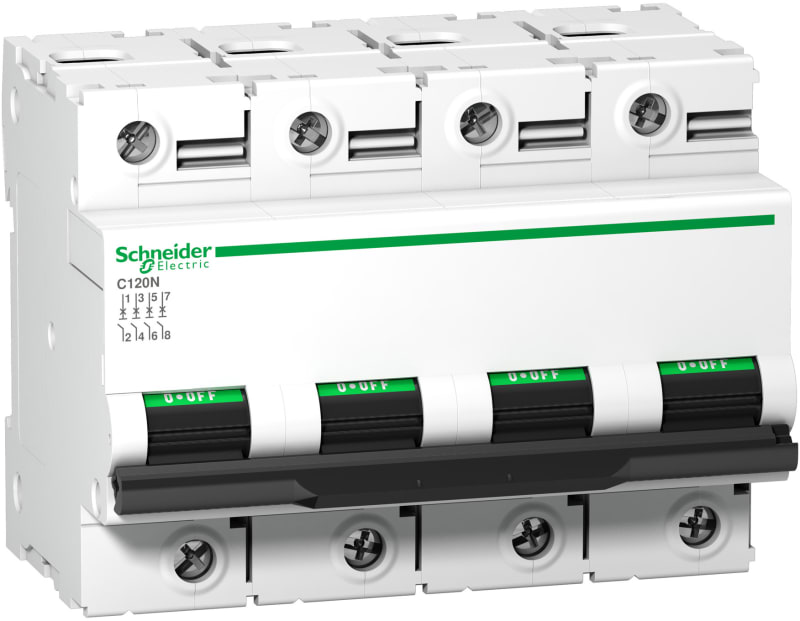

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120N, 4P, 125A, C curve, 10000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9N18376
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9N18376 Miniature circuit breaker C120N 4P 125A/B.
Technical Specifications
- Manufacturer part number (MPN)
- A9N18376
- EAN / GTIN
- 3606480379475
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Rated current
- 125 A
- Number of poles
- 4P
- Range
- Acti9
- Product name
- Acti9 C120
- Product or component type
- Miniature circuit-breaker
- Device short name
- C120N
- Device application
- Distribution
- Poles description
- 4P
- Number of protected poles
- 4
- [In] rated current
- 125 A at 30 °C
- Network type
- AC
- Trip unit technology
- Thermal-magnetic
- Curve code
- C
- Breaking capacity
- 10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2; 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2; 10 kA Icu at <= 500 V DC conforming to EN/IEC 60947-2
- Suitability for isolation
- Yes conforming to IEC 60947-2
- Standards
- EN/IEC 60947-2; EN/IEC 60898-1
- Product certifications
- EAC
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 380...415 V AC 50/60 Hz; <= 500 V DC; 220...240 V AC 50/60 Hz; 440 V AC 50/60 Hz; 230...400 V AC 50/60 Hz
- Magnetic tripping limit
- 5...10 x In
- [Ics] rated service breaking capacity
- 7500 A 75 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz; 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz; 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz; 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz; 10 kA 100 % conforming to EN/IEC 60947-2 - <= 500 V DC
- Limitation class
- 3 conforming to EN/IEC 60947-2
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to EN/IEC 60947-2
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication
- mounting mode
- Clip-on
- Mounting support
- 35 mm symmetrical DIN rail
- Comb busbar and distribution block compatibility
- YES
- 9 mm pitches
- 12
- Height
- 81 mm
- Depth
- 73 mm
- Width
- 108 mm
- Product weight
- 0.82 kg
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 5000 cycles conforming to IEC 60947-2
- Locking options description
- Handle sealable with cable diameter 0.7mm in OFF or ON position
- Connections - terminals
- Tunnel type terminals1…50 mm² rigid; Tunnel type terminals1.5…35 mm² flexible
- Wire stripping length
- 15 mm
- Tightening torque
- 3.5 N.m
- Earth-leakage protection
- Separate block
- IP degree of protection
- IP20 conforming to IEC 60529
- Pollution degree
- 3 conforming to IEC 60947-2
- Overvoltage category
- IV
- Tropicalisation
- 2 conforming to IEC 60068-1
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480379475
- SAP 1000326291
- Code 8877116
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NO aux. - 24 V DC coil LP1K1210BD
Schneider Electric
Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3E,440V 6A, aux. 1NO, 220...230V AC coil, screw clamp terminals LC1K0610M7
Schneider Electric
Schneider Electric ZBE1026P single contact block for head Ø22 1NC gold flashed screw clamp terminal
Schneider Electric
Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3E,440V 9A, aux. 1NO, 220...230V AC coil, screw clamps LC1K0910M7
Schneider Electric
Schneider Electric TeSys F - specific contactor coil - 220...230 V AC 40...400 Hz low consumption LX9FF220
Schneider Electric
Schneider Electric iCT 25A 4NC 220...240V 50Hz contactor A9C20837
Schneider Electric

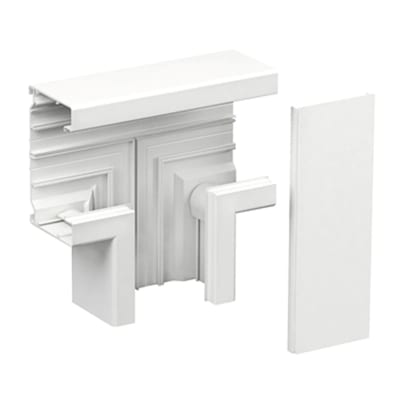

T-Piece INKA123 White
5507143
Schneider Electric

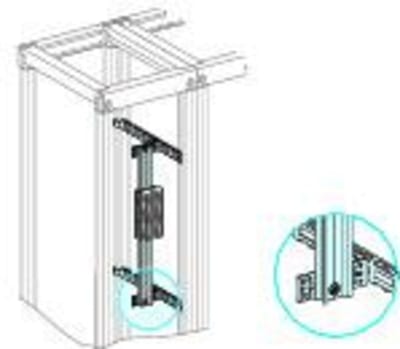

Universal Brackets, 2 pcs, PrismaSeT G/P
