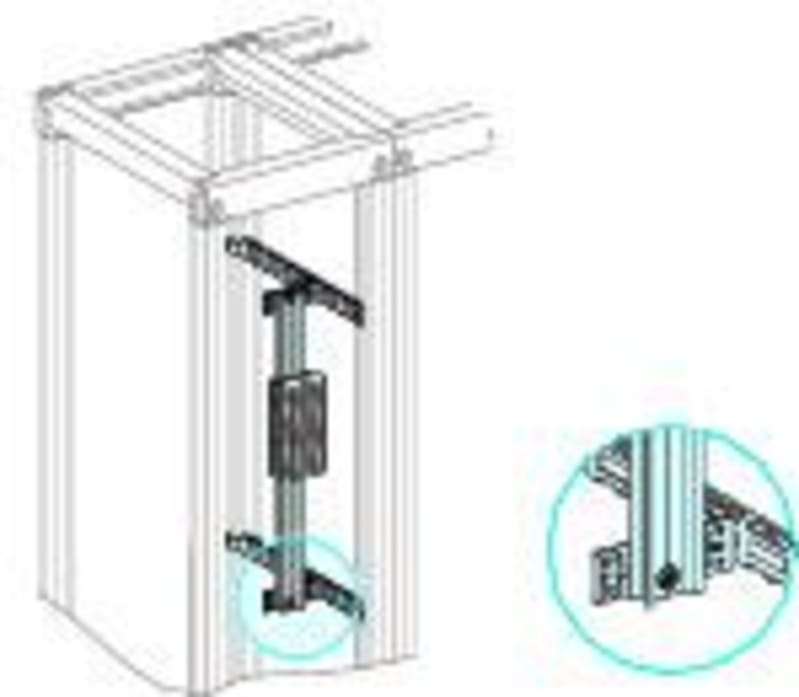

Universal Brackets, 2 pcs, PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03581 — 2 UNIVERSAL ANGLE BRACKETS.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03581
- EAN / GTIN
- 3606481869043
- Sales unit
- pack
- Package quantity
- 2 pack
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Universal angle bracket
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle; PrismaSeT PrismaSeT G mounting plate; PrismaSeT Prisma POLAR WHITE cubicle; PrismaSeT Prisma iPM L enclosure; PrismaSeT Prisma iPM M enclosure
- mounting mode
- By screws
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle; Cubicle duct
- Quantity per set
- Set of 2
- thickness
- 3 mm
- Height
- 122.5 mm
- Width
- 122.5 mm
- Depth
- 43 mm
- Colour
- Natural
- Product weight
- 0.18 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 4.100 cm
- Package 1 Length
- 12.500 cm
- Package 1 Weight
- 186.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 40
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 7.768 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 640
- Package 3 Height
- 42.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 136.288 kg
- Country of origin
- FR
- Warranty (in months)
- 18
Cross References
- EAN 3606481869043
- SAP 1200546701
- Code 82880472
