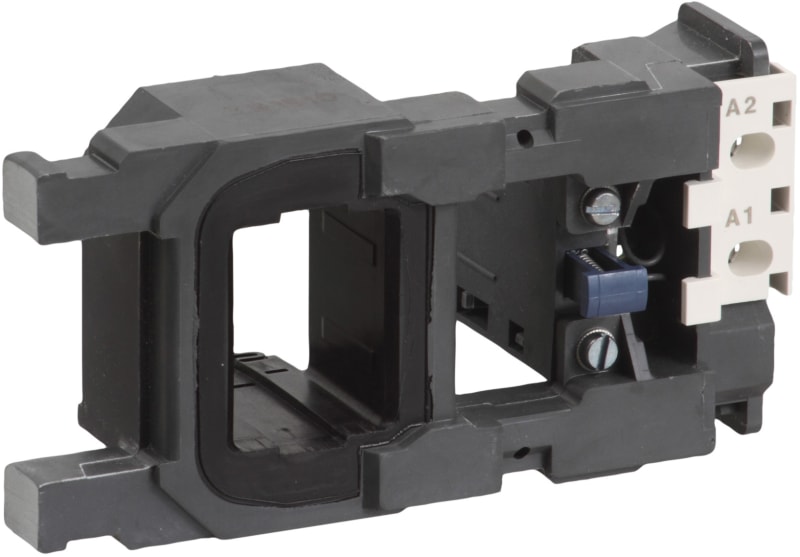

Schneider Electric TeSys F - specific contactor coil - 220...230 V AC 40...400 Hz low consumption LX9FG220

Schneider Electric LX9FG220 coil LC1F185/F225 230VAC.

Manufacturer part number (MPN)

LX9FG220

EAN / GTIN

3389110084016

Sales unit

pcs

Package quantity

18 pcs

Voltage

230 V AC

Range

TeSys

Product or component type

Specific contactor coil

Device short name

LX9FG

Range compatibility

TeSys TeSys F LC1F contactor

Product compatibility

LC1F225; LC1F185

Control circuit type

AC at 40...400 Hz low consumption

[Uc] control circuit voltage

220...230 V AC 40...400 Hz

Inductance of closed circuit

5.84 H

Average resistance

1680 Ohm holding at 20 °C; 42.1 Ohm inrush at 20 °C

Operating time

130 ms opening; 35 ms closing

Mechanical durability

10 Mcycles

Maximum operating rate

2400 cyc/h 55 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Operational: 0.85...1.1 Uc (at 55 °C); Drop-out: 0.2...0.55 Uc (at 55 °C)

Inrush power in VA

950…1180 VA 40...400 Hz (at 20 °C)

Hold-in power consumption in VA

8.9…10.9 VA 40...400 Hz (at 20 °C)

Heat dissipation

8…9.8 W

Ambient air temperature for operation

-5…55 °C

Product weight

0.55 kg

Number of Units in Package 1

1

Number of Units in Package 2

14

Country of origin

CZ

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

220–230 V

Rated control supply voltage AC 60 Hz

220–230 V

Voltage type for actuating

AC

HS Code

8505.90
