Jf.relay RH99P 110/130VAC just.
Pricing
Request a quote
We reply within 24 hours
Product Description

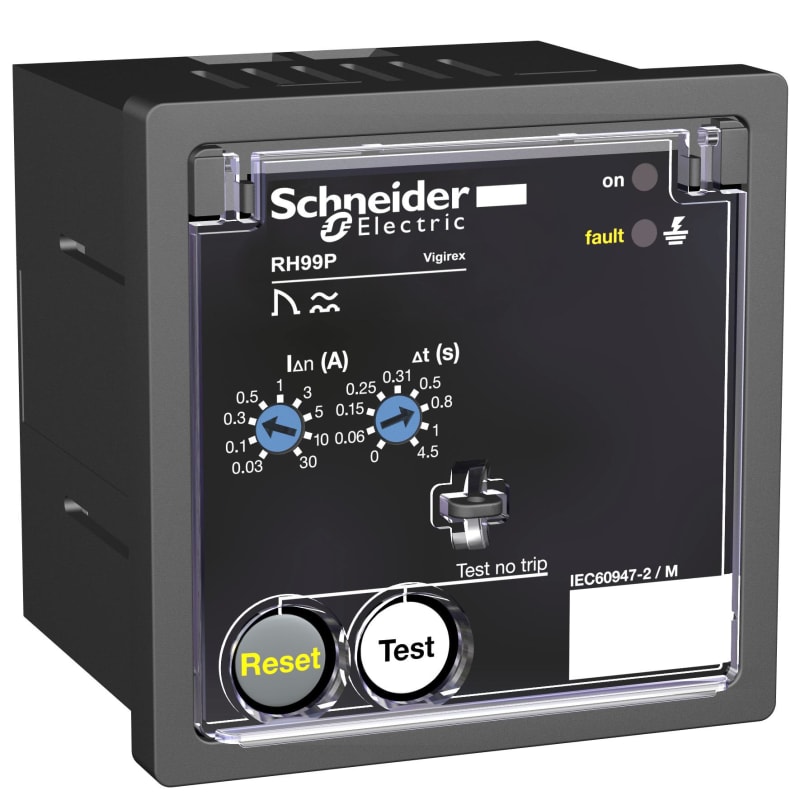

Schneider Electric 56272 Earth-fault relay Vigirex RH99P 110/130V AC 50/60Hz manual reset.
Technical Specifications
- Manufacturer part number (MPN)
- 56272
- EAN / GTIN
- 3303430562726
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Operating voltage AC 50 Hz
- 110–130 V
- Operating voltage AC 60 Hz
- 110–130 V
- External power supply required
- Yes
- Supply voltage AC 50 Hz
- 110–130 V
- Supply voltage AC 60 Hz
- 110–130 V
- Current measuring range
- 0.015–60 mA
- Rated switch current
- 8 A
- Rated operating frequency
- 50–400 Hz
- Voltage measuring range
- 0–1000 V
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Clip connection
- Voltage type for actuating
- AC
- With detachable clamps
- No
- Function
- For AC-current system
- Response value amperage 1
- 0.03–30 mA
- Response value amperage 2
- 0–30000 mA
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 4.82 s
- Indication of difference current
- No
- Error registration possible
- No
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
- Width
- 72 mm
- Height
- 72 mm
- Depth
- 78 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303430562726
- SAP 1200502950
- Code 82633541
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Modicon Momentum - Interbus communication adaptor - twisted pair 170INT11000
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=440V, 66A, 120V AC 60Hz coil, EverLink+springs LC1D80AG7
Schneider Electric
Schneider Electric Complete body/contact assembly and light block, Harmony XB4, metal, universal LED, body/fixing collar, 1NO + 1NC, 230…240V AC ZB4BW0M15
Schneider Electric
Busbar-vertical-Linergy-LGYE 2000A (LVS04507)
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P+N, 16A, B curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P44716
Schneider Electric
Push-button flush black with text (ZB4FA245)
Schneider Electric
1 hulls gland plate 600X1200 SF
NSYEC6121
Schneider Electric
Schneider Electric TeSys F - specific contactor coil - 380...400V AC 40...400 Hz low consumption LX9FG380
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 56272?
- 56272 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 56272.
- What is the HS code for 56272?
- The customs tariff (HS) code for 56272 is 8536.90.
- Who manufactures 56272?
- 56272 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for 56272?
- Yes — the 56272 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 56272?
- The minimum order quantity is 1.
- Is 56272 available?
- Yes — 56272 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
