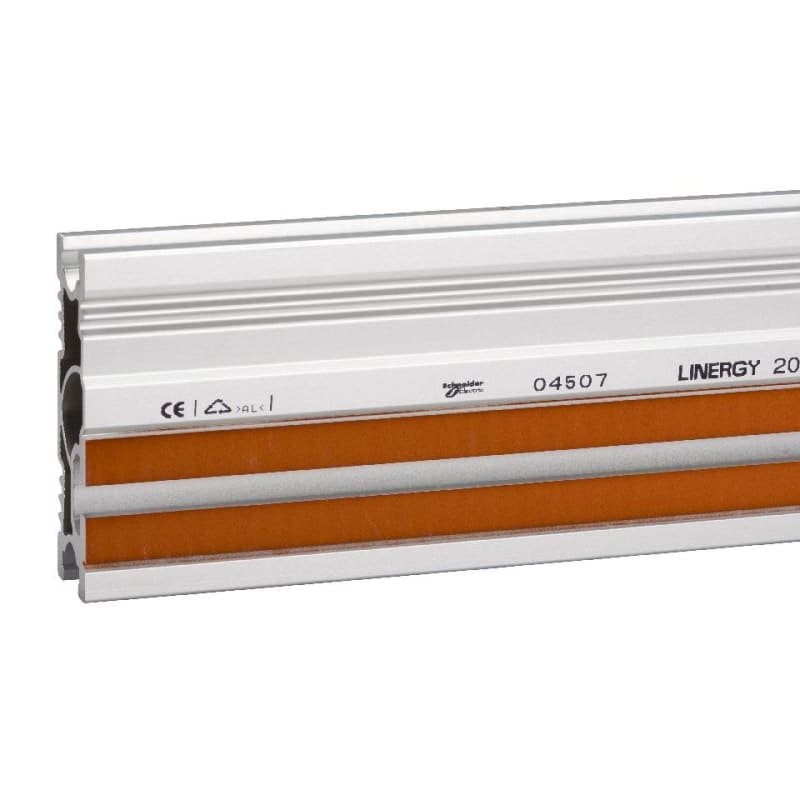

Busbar-vertical-Linergy-LGYE 2000A (LVS04507)

Schneider Electric LVS04507 Busbar-vertical-Linergy-LGYE for mounting in PrismaSeT P- length 1670mm- 2000A.

Manufacturer part number (MPN)

LVS04507

EAN / GTIN

3606481870360

Sales unit

pcs

Rated current

2000 A

Range

Linergy

Range of product

Linergy

Product or component type

Profile busbar

Product name

Linergy LGYE

Range compatibility

PrismaSeT PrismaSeT P enclosure

Busbar description

Linergy

Quantity per set

Set of 1

Installation direction

Vertical, operating position: lateral; Horizontal, operating position: top; Horizontal, operating position: bottom

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Cubicle duct - width 300 mm

[Ui] rated insulation voltage

1000 V

[Uimp] rated impulse withstand voltage

12 kV (degree of pollution: 3)

[Ie] rated operational current

2000 A

[Icw] rated short-time withstand current

65 kA (1 s) for 5 supports (lateral position); 60 kA (1 s) for 2 supports (horizontal position); 85 kA (1 s) for 3 supports (horizontal position); 85 kA (1 s) for 7 supports (lateral position); 50 kA (1 s) for 3 supports (lateral position); 100 kA (1 s) for 4 supports (horizontal position)

Permissible current

2000 A at 35 °C: <= IP31; 1650 A at 35 °C: IP31

Length

1625 mm

Colour

Natural

Type of busbar connection

Single t-slot

Connection pitch

Free connection position

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Number of Units in Package 1

1

Number of Units in Package 2

24

Warranty (in months)

18

Width

100 mm

Model

Profile

Height

31 mm

Flexible

No

Surface protection

Untreated

Rated current In

2000 A

Country of origin

France

HS Code

7604.29
