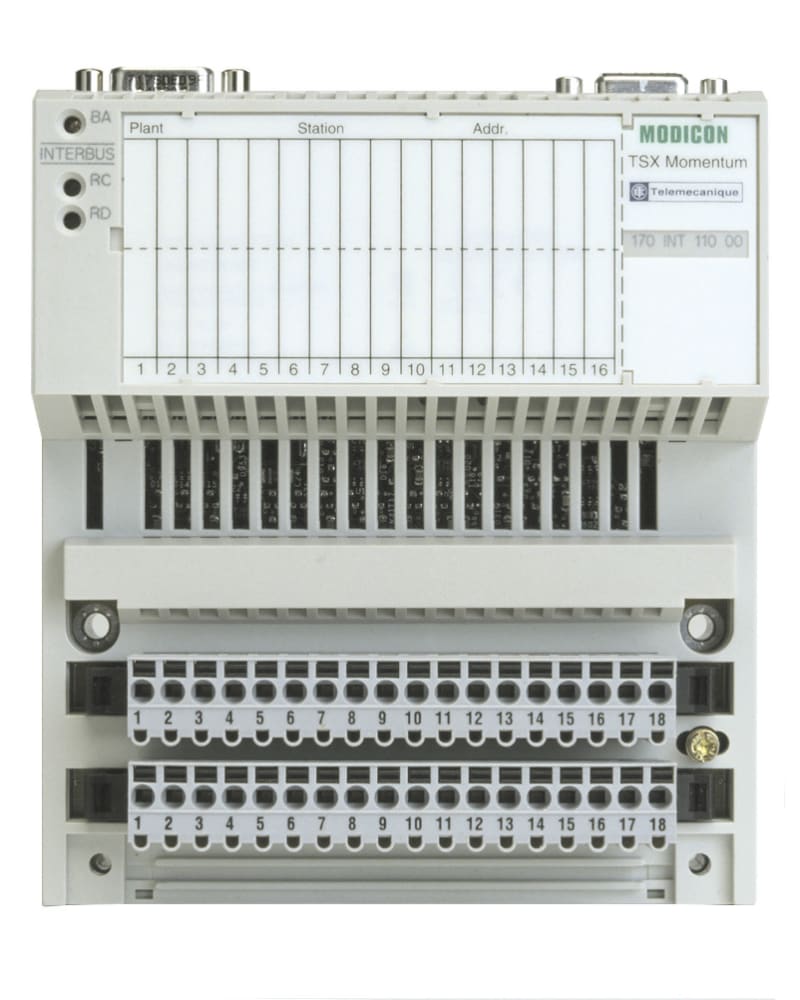

Schneider Electric Modicon Momentum - Interbus communication adaptor - twisted pair 170INT11000
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 170INT11000 Interbus-S comm.. adapter.
Technical Specifications
- Manufacturer part number (MPN)
- 170INT11000
- EAN / GTIN
- 3595861000360
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range of product
- Modicon Momentum automation platform
- Product or component type
- Interbus communication adaptor
- Method of access
- Continuous shift register; Master/slave
- Communication port protocol
- Interbus generation SUPI 2
- Fail state
- Fail safe
- Transmission support medium
- Twisted pair
- Transmission rate
- 500 kbit/s
- Topology
- Ring
- Cable length
- 12800 m; 400 m
- Control parameter
- CRC-16
- Height
- 56 mm
- Width
- 178 mm
- Depth
- 259 mm
- Product weight
- 0.07 kg
- IP degree of protection
- IP20
- Protective treatment
- TC
- Marking
- CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of HW-interfaces other
- 2
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Redundancy
- No
- Type of data transmission
- Module rack extension
- With potential separation
- Yes
- SIL according to IEC 61508
- None
- Suitable for safety functions
- No
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3595861000360
- SAP 1000253696
- Code 81134025
Product Documentation
