Jf.relay RH21M 380/415VAC just.
Pricing
Request a quote
We reply within 24 hours
Product Description

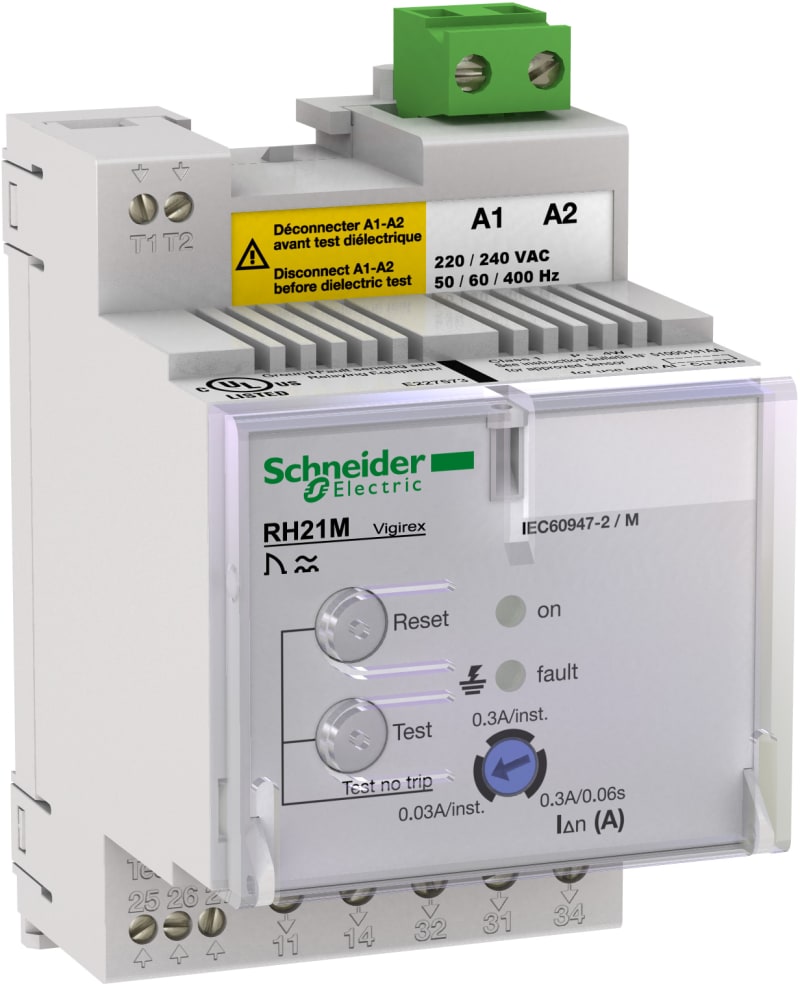

Schneider Electric 56164 Earth-fault relay Vigirex RH21M 380/415V AC manual reset.
Technical Specifications
- Manufacturer part number (MPN)
- 56164
- EAN / GTIN
- 3303430561644
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 380/415 V AC
- Operating voltage AC 50 Hz
- 380–415 V
- Operating voltage AC 60 Hz
- 380–415 V
- External power supply required
- Yes
- Supply voltage AC 50 Hz
- 380–415 V
- Supply voltage AC 60 Hz
- 380–415 V
- Current measuring range
- 0.015–60 mA
- Rated switch current
- 8 A
- Rated operating frequency
- 50–400 Hz
- Voltage measuring range
- 0–1000 V
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 380–415 V
- Rated control supply voltage AC 60 Hz
- 380–415 V
- Voltage type for actuating
- AC
- With detachable clamps
- No
- Function
- For AC-current system
- Rated voltage
- 0–1000 V
- Rated frequency
- 50–400 Hz
- Response value amperage 1
- 30 mA
- Response value amperage 2
- 300 mA
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 0.15 s
- Indication of difference current
- No
- Error registration possible
- No
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
- Width
- 54 mm
- Height
- 97 mm
- Depth
- 74 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303430561644
- SAP 1000284793
- Code 82027105
Product Documentation
