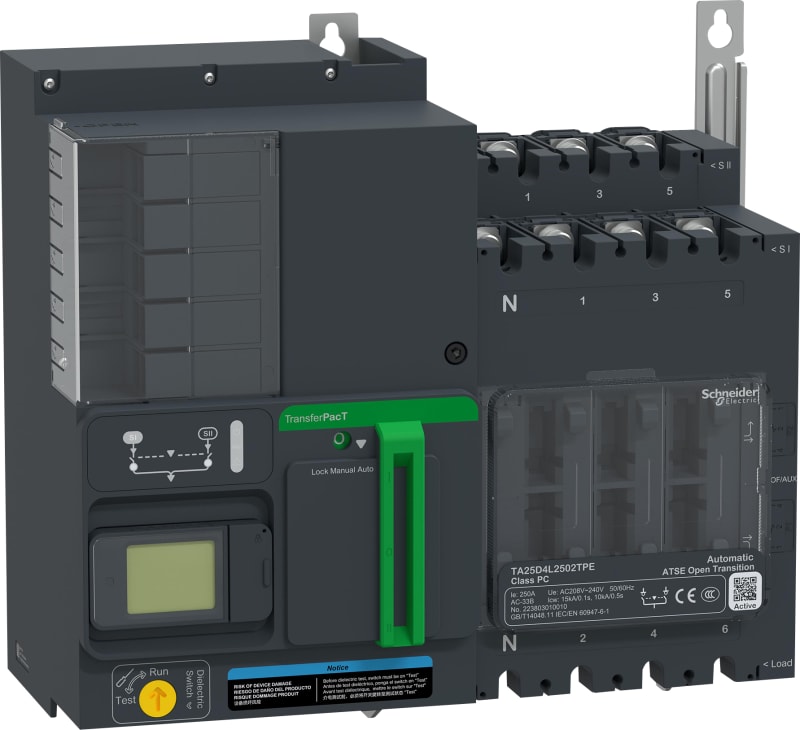

Schneider Electric TransferPacT Active Automatic, 250A, 230V, 4P, LCD, frame 250A TA25D4L2502TPE

Schneider Electric TA25D4L2502TPE TransferPacT Active Automatic ATS-TA25-In250A-230V-4P-with LCD controller and Modbus communication.

Manufacturer part number (MPN)

TA25D4L2502TPE

EAN / GTIN

3606485953236

Sales unit

pcs

Range of product

TransferPacT

Product or component type

Automatic transfer switch

Device application

Change source of supply

Poles description

4P

Network type

AC

Network frequency

50/60 Hz

Downside connection

Screwed

mounting mode

Fixed

Upside connection

Screwed

Contact position indicator

Yes

[Icm] rated short-circuit making capacity

30 kA switch-disconnector alone 230 V AC at 50 Hz; 330 kA with upstream protection circuit breaker 230 V AC at 50 Hz

Suitability for isolation

Yes

Transfer switch class

PC

Number of contact position

3

Signal contacts composition

1 NO + 2 NC; 1 NC + 2 NO; 2 NO

Utilization category

AC-33B

[Ue] rated operational voltage

230 V AC 50/60 Hz

Control type

4 push-buttons

Operating mode

Automatic; Manual

Display type

LCD screen

Mounting support

Plate

Locking options description

Padlock in OFF position; Padlock in SI / SII position

Rated duty

Uninterrupted

[Ui] rated insulation voltage

Switch: 800 V; Controller: 500 V

[Uimp] rated impulse withstand voltage

Switch: 8 kV; Controller: 6 kV

[Ie] rated operational current

250 A

Mechanical interlocking

With mechanical interlocking

Mechanical durability

10000 cycles

Connection pitch

35 mm

Local signalling

LED indicator (green) for power ON; LED indicator (red) for alarm

[Icw] rated short-time withstand current

10 kA during 0.5 s; 15 kA during 0.1 s

Height

341 mm

Width

370 mm

Depth

185.8 mm

Product weight

13.3 kg

[Ith] conventional free air thermal current

250 A at 60 °C

Standards

IEC 60947-6-1

Product certifications

CE; CB; CCC

IP degree of protection

Front face: IP40 auto mode; Inside the enclosure: IP20 manual mode

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Pollution degree

3

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

73.5 cm

Package 1 Width

60 cm

Package 1 Length

80 cm

Package 1 Weight

26.256 kg

Country of origin

CN

Warranty (in months)

18

Rated permanent current Iu

250 A

Number of poles

4

With zero (off) position

Yes

Housing material

Plastic

With retraction in 0-position

No

Degree of protection (IP), front side

IP20

Type of electrical connection of main circuit

Screw connection

Suitable for floor mounting

No

Suitable for front mounting

No

Suitable for distribution board installation

Yes

Complete device in housing

Yes

HS Code

8536.50
