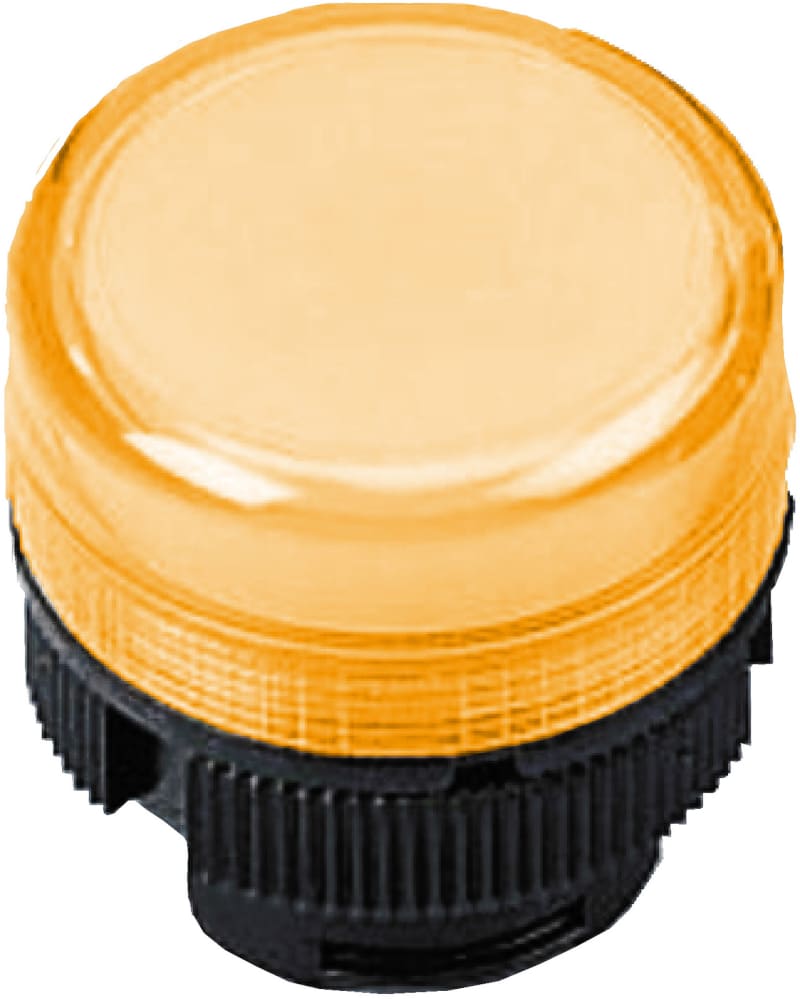

Pilot Light Head,YELLOW

Schneider Electric ZA2BV05 Pilot Light Head Yellow.

Manufacturer part number (MPN)

ZA2BV05

EAN / GTIN

3389110648249

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony

Product or component type

Head for pilot light

Product specific application

For incandescent bulb

Cap/operator or lens colour

Yellow

Mechanical durability

1000000 cycles

Product weight

0.015 kg

Compatibility code

ZA2B

Standards

IEC 60947-5-1

Protective treatment

TH

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class II conforming to IEC 61140

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

100

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour lens

Yellow

Colour front ring

Black

Degree of protection (IP), front side

IP65/IP67

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Suitable for number of built-in signal lights

1

Type of lens

High

Degree of protection (NEMA)

4X, 13

HS Code

8538.90

• EAN 3389110648249
• SAP 1000039822
• Code 8745745
