3 CT 150/1A-KL 1-2,5VA ISFL160
Pricing
Request a quote
We reply within 24 hours
Product Description

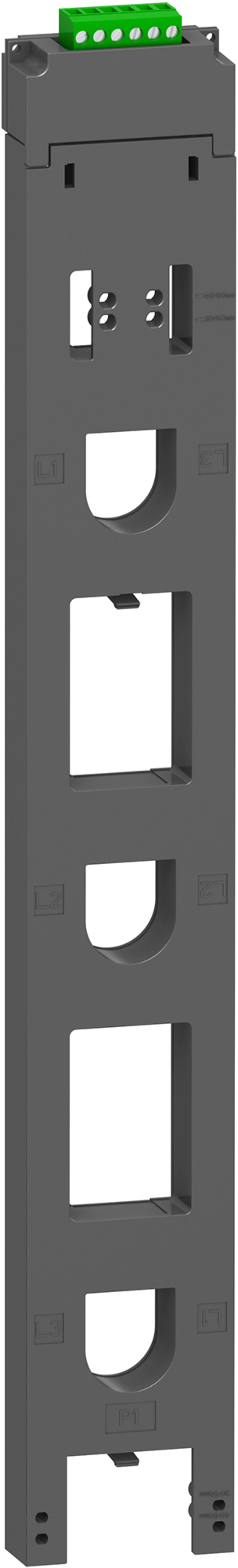

Schneider Electric LV480882 3 CT 150/1A-kl 1-2,5VA ISFL160.
Technical Specifications
- Manufacturer part number (MPN)
- LV480882
- EAN / GTIN
- 3606480341403
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range of product
- ISFL160
- Range
- FuPacT
- Product or component type
- Block of 3 current transformers
- Device application
- Power supply
- Range compatibility
- FuPacT FuPacT ISFL ISFL160 fuse-switch disconnector
- Poles description
- 3P
- Current transformer ratio
- 150/1 A
- Power consumption in VA
- 2.5 VA
- Accessory / separate part category
- Measurement accessory
- Current transformer type
- Measurement class 1
- Maximum safety factor
- 5
- [Ue] rated operational voltage
- 800 V AC 50/60 Hz
- IP degree of protection
- IP20
- Standards
- VDE 0414; IEC 60044-1; BS 7626
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Height
- 328.5 mm
- Width
- 49.5 mm
- Depth
- 30 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Power consumption
- 2.5 W
- Model
- 3-phase current converter set
- Rated primary current
- 150 A
- Rated secondary current
- 1 A
- Rated secondary apparent power
- 2.5 VA
- Accuracy class
- 1
- Overcurrent limiting factor
- FS 5
- Calibrated
- Yes
- With contact protection
- Yes
- Snap mounting
- Yes
- With copper rail
- No
- Number of primary inputs
- 3
- Secondary connection
- Plug-in connection
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3606480341403
- SAP 1200502848
- Code 82627647
Product Documentation
